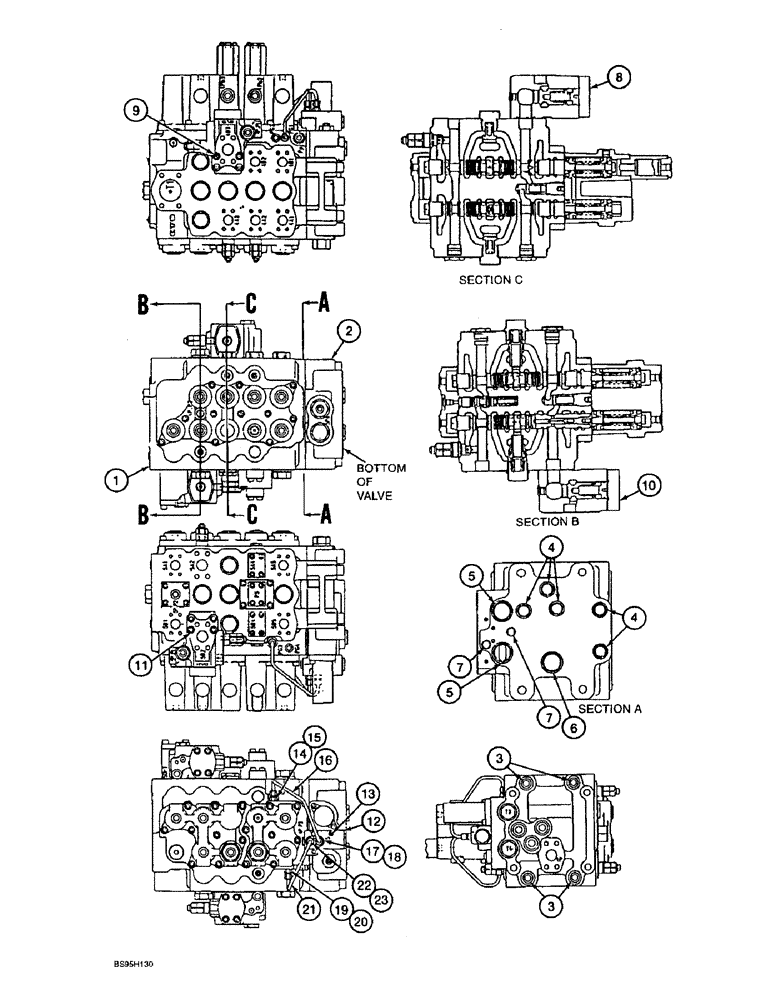

Запчасти Case 9060B (8-178) - 163643A1 AND 171225A1 CONTROL VALVES, HOUSINGS, MAJOR SUBASSEMBLIES, AND RELATED COMPONENTS (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 23

1шт.

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 23, Start Serial: EAC0601027

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

163969A1

LARGE PLATE

VALVE ASSEMBLY - base cover, 163643A1 valve, parts list Figure 8-194

1шт.

2

165727A1

HYD VALVE SECTION

VALVE ASSEMBLY - base cover, 171225A1 valve, parts list Figure 8-194

1шт.

3

157332A1

BOLT

BOLT - hex socket

4шт.

4

154528A1

O-RING

- passage

5шт.

5

154588A1

O-RING

- passage

2шт.

6

154559A1

O-RING

- passage

1шт.

7

155172A1

O-RING

- passage

2шт.

8

163974A1

VALVE

ASSEMBLY - anti-drift, for 163643A1 valve, parts list Figure 8-192

1шт.

8

165728A1

VALVE

ASSEMBLY - anti-drift, for 171225A1 valve, parts list Figure 8-192

1шт.

9

164076A1

BOLT,Hex Skt

BOLT - special

4шт.

10

163974A1

VALVE

ASSEMBLY - anti-drift, for 163643A1 valve, parts list Figure 8-192

1шт.

10

165728A1

VALVE

ASSEMBLY - anti-drift, for 171225A1 valve, parts list Figure 8-192

1шт.

11

164076A1

BOLT,Hex Skt

BOLT - special

4шт.

12

163975A1

VALVE

ASSEMBLY - pilot, parts list Figure 8-196

1шт.

13

164078A1

BOLT,Hex Skt

BOLT - special

3шт.

14

164090A1

JOINT

FITTING - tube

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting (not shown)

1шт.

16

163995A1

PIPE

TUBE - transfer

1шт.

17

164090A1

JOINT

FITTING - tube

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting (not shown)

1шт.

19

164090A1

JOINT

FITTING - tube

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting (not shown)

1шт.

21

163996A1

PIPE

TUBE - transfer

1шт.

22

164090A1

JOINT

FITTING - tube

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting (not shown)

1шт.
