Запчасти Case 9060B (8-174) - HYDRAULIC PUMP, REGULATOR COVER (08) - HYDRAULICS

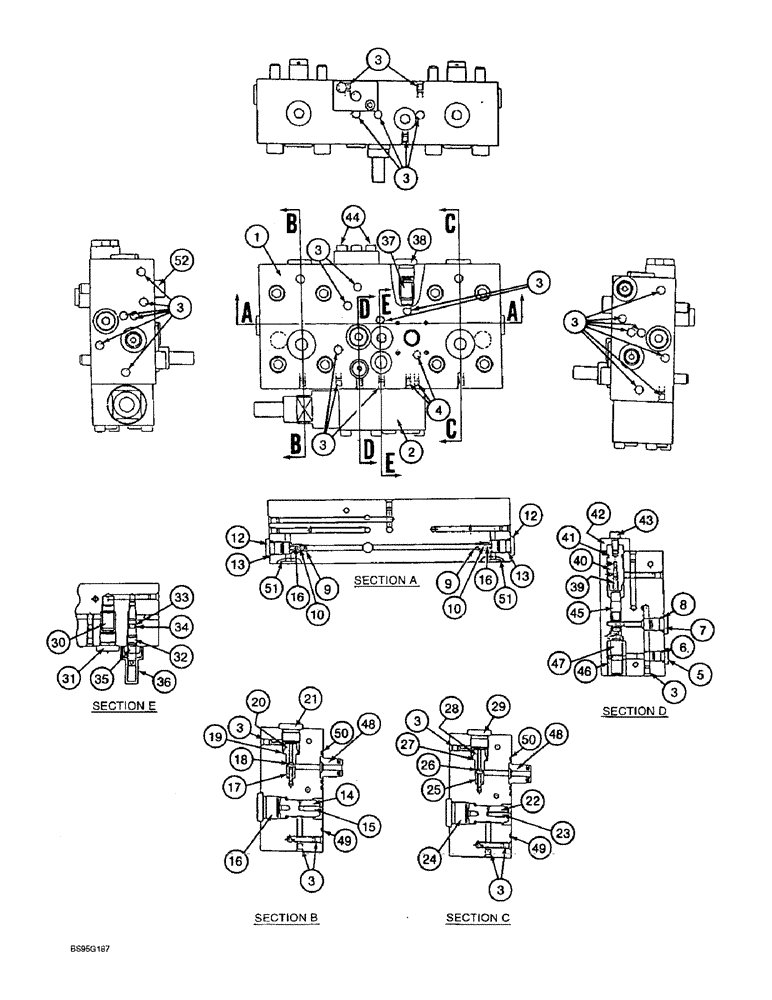

Схема запчастей Case 9060B - (8-174) - HYDRAULIC PUMP, REGULATOR COVER (08) - HYDRAULICS
24
42
22
12
3
52
26
4
41
25
51
27
3
3
3
1
23
17
20
29
44
49
21
16
13
33
15
47
36
38
30
6
32
10
3
50
7
3
14
5
31
37
3
13
16
51
12
28
3
50
3
16
18
3
8
3
43
35
46
48
9
48
9
49
2
34
10
39
45
40
3
19

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - regulator, includes: Refs. 1 - 52

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - regulator cover

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - throttle, parts list Figure 8-170

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - port

26шт.

4

NSS

NOT SOLD SEPARAT

PLUG - port

3шт.

5

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

6

154455A1

O-RING

- plug

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - valve

2шт.

10

NSS

NOT SOLD SEPARAT

BALL - valve

2шт.

11

NSS

NOT SOLD SEPARAT

SEAT - valve

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

14

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

18

NSS

NOT SOLD SEPARAT

BALL - valve

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING - valve

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - retaining

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

26

NSS

NOT SOLD SEPARAT

BALL - valve

1шт.

27

NSS

NOT SOLD SEPARAT

PACKING - valve

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - retaining

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

30

155352A1

FILTER CARTRIDGE

ELEMENT - filter

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

32

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

33

154443A1

O-RING

- screw

1шт.

34

153937A1

BACK-UP RING

RING - backup

1шт.

35

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10, Adjusting screw locking

1шт.

36

156363A1

CAP

COVER - adjustment

1шт.

37

155352A1

FILTER CARTRIDGE

ELEMENT - filter

1шт.

38

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

41

154471A1

O-RING

- bushing

1шт.

42

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

43

861-6012

HEX SOC SCREW,M6 x 12mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 12 mm, class 12.9

1шт.

44

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

- hex socket, 6 - 1.0 x 20 mm, class 12.9

2шт.

45

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

47

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - passage

2шт.

49

155191A1

O-RING

- passage

2шт.

50

155207A1

O-RING

- passage

2шт.

51

155206A1

O-RING

- passage

2шт.

52

163577A1

HEX SOC SCREW

BOLT - special

8шт.

Выбрано товаров: 53
