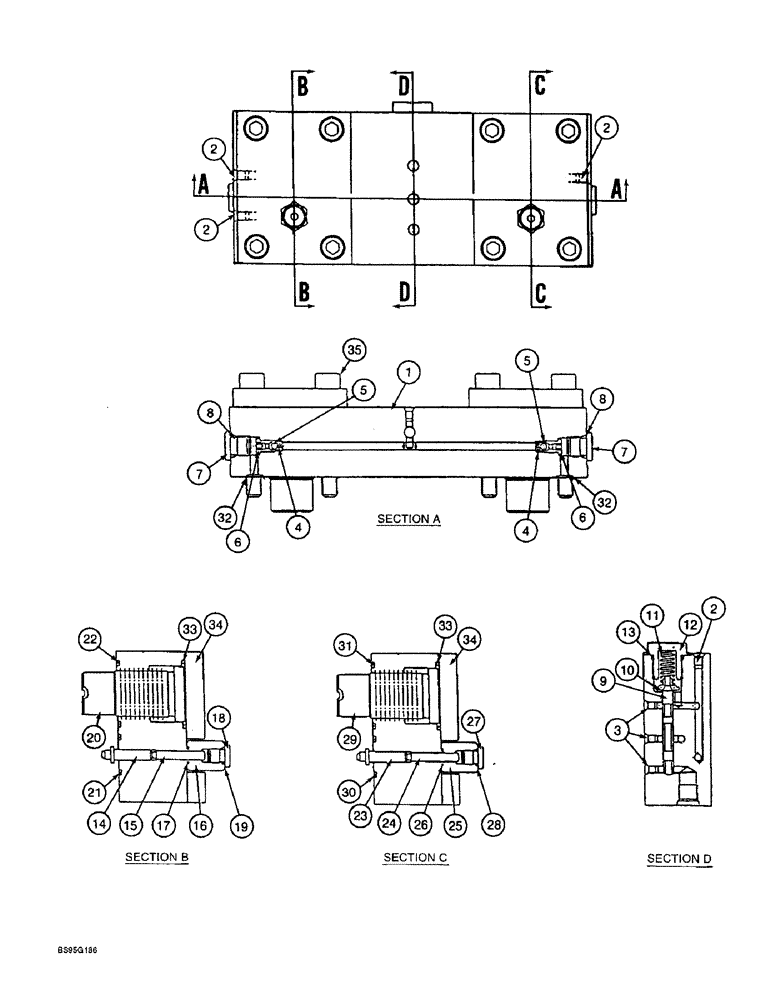

Запчасти Case 9060B (8-172) - HYDRAULIC PUMP, CONTROLLER COVER (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - controller, includes: Refs. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - controller cover

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - port

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG - port

3шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

2шт.

5

NSS

NOT SOLD SEPARAT

BALL - valve

2шт.

6

NSS

NOT SOLD SEPARAT

SEAT - valve

2шт.

7

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

13

154487A1

O-RING

- cover

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - locking

1шт.

17

154454A1

O-RING

- nut

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

19

154455A1

O-RING

- plug

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

21

163567A1

O-RING

- passage

1шт.

22

164222A1

O-RING

- passage

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - locking

1шт.

26

154454A1

O-RING

- nut

1шт.

27

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

28

154455A1

O-RING

- plug

1шт.

29

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

30

163567A1

O-RING

- passage

1шт.

31

164222A1

O-RING

- passage

1шт.

32

155201A1

O-RING

- passage

2шт.

33

154574A1

O-RING

- retainer plate

2шт.

34

NSS

NOT SOLD SEPARAT

PLATE - retainer

2шт.

35

861-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 70 mm, class 12.9

8шт.
