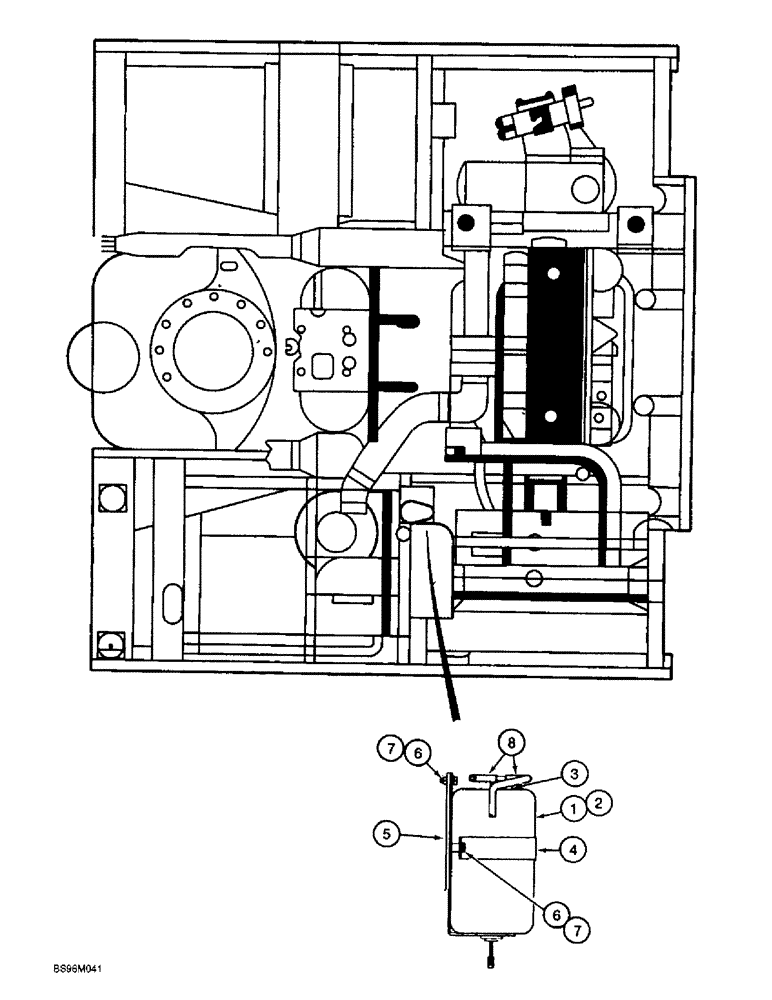

Запчасти Case 9060B (2-08) - RADIATOR OVERFLOW RESERVOIR AND HOSES (02) - ENGINE

160639A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - coolant overflow, located between engine and air cleaner assembly, includes: Refs. 1 - 3

1шт.

1

161847A1

RESERVOIR, COOLANT E

RESERVOIR - coolant overflow

1шт.

2

161740A1

SWITCH

- sender, coolant level

1шт.

3

161848A1

PLUG

CAP - reservoir, removable

1шт.

4

170524A1

BRACKET

- reserve tank

1шт.

5

170268A1

HOLDER

BRACKET - special, reservoir mounting

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

170881A1

HOSE,7.94 mm ID x 1473.00 mm

- 1473 mm (58 inch) long

2шт.
