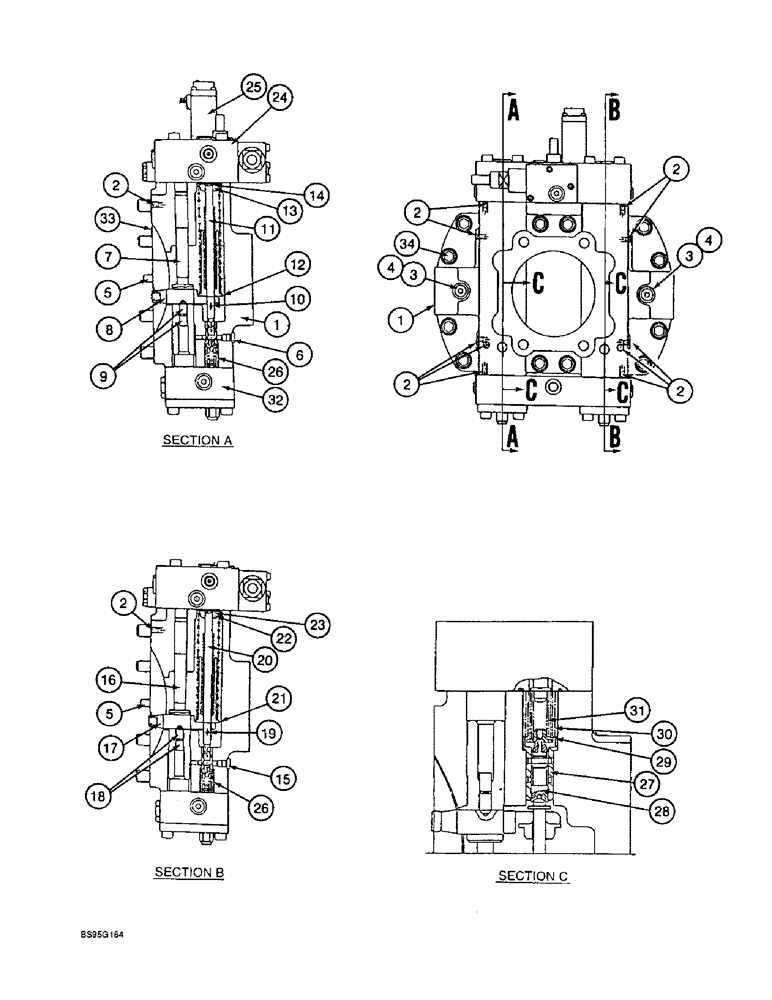

Запчасти Case 9060B (8-168) - HYDRAULIC PUMP, PUMP CONTROLLER, PUMP CONTROLLER ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
CONTROLLER ASSEMBLY - pump, includes: Refs. 1 - 34
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - controller assembly
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - port
12шт.
3
155498A1
PLUG
- port
2шт.
4
154467A1
O-RING,10.8mm ID x 2.4mm Width
- plug
2шт.
5
NSS
NOT SOLD SEPARAT
PIN - dowel
2шт.
6
153871A1
PLUG
- port
1шт.
7
NSS
NOT SOLD SEPARAT
PISTON - controller
1шт.
8
NSS
NOT SOLD SEPARAT
ROD - controller
1шт.
9
163575A1
HEX SOC SCREW
BOLT - special
2шт.
10
738-1414
LOCK PIN,4mm OD x 14mm L, Slotted
PIN - roll, 4 x 14 mm
1шт.
11
NSS
NOT SOLD SEPARAT
GUIDE - spring
1шт.
12
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
13
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
14
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
15
153871A1
PLUG
- port
1шт.
16
NSS
NOT SOLD SEPARAT
PISTON - controller
1шт.
17
NSS
NOT SOLD SEPARAT
ROD - controller
1шт.
18
163575A1
HEX SOC SCREW
BOLT - special
2шт.
19
738-1414
LOCK PIN,4mm OD x 14mm L, Slotted
PIN - roll, 4 x 14 mm
1шт.
20
NSS
NOT SOLD SEPARAT
GUIDE - spring
1шт.
21
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
22
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
23
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
24
NSS
NOT SOLD SEPARAT
COVER ASSEMBLY - regulator, parts list Figure 8-174
1шт.
25
164539A1
VALVE
ASSEMBLY - proportional, parts list Figure 8-170
1шт.
26
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - controller
2шт.
27
NSS
NOT SOLD SEPARAT
SLEEVE - valve
1шт.
28
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
29
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
30
NSS
NOT SOLD SEPARAT
SPRING - compression
1шт.
31
NSS
NOT SOLD SEPARAT
SPRING - compression
1шт.
32
NSS
NOT SOLD SEPARAT
COVER ASSEMBLY - controller, parts list Figure 8-172
1шт.
33
NSS
NOT SOLD SEPARAT
PACKING - sealing
1шт.
34
863-16045
HEX SOC SCREW,M16 x 45mm, Cl 12.9
SCREW - hex socket, 16 - 2.0 x 45 mm, class 12.9
12шт.
Выбрано товаров: 35
