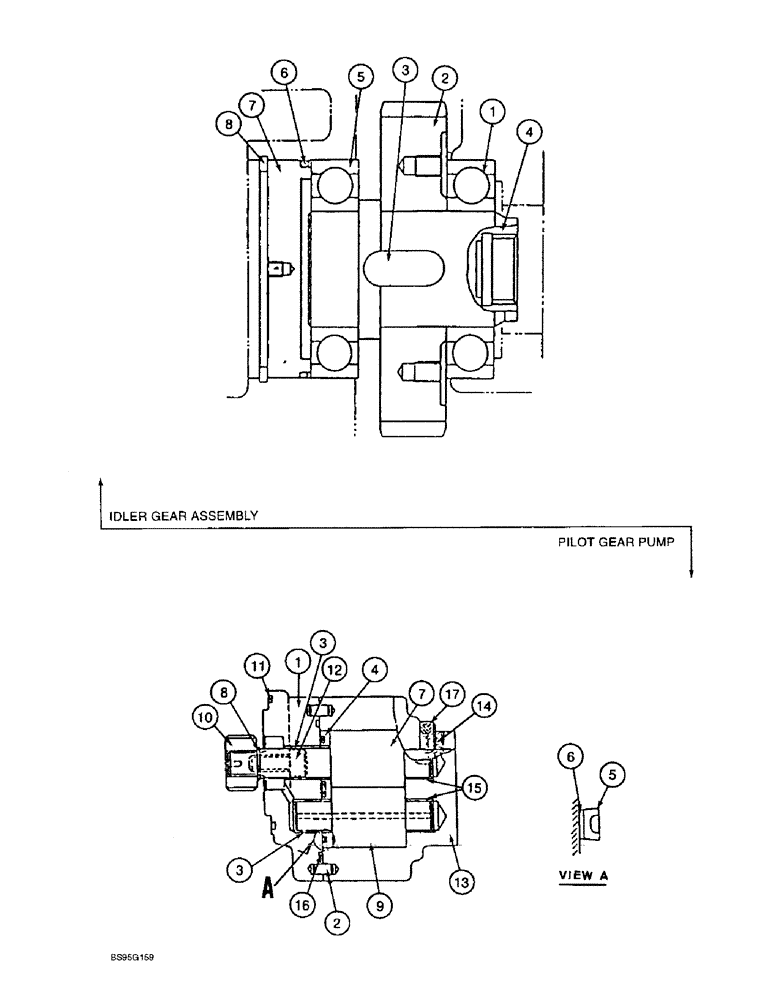

Запчасти Case 9060B (8-166) - IDLER GEAR ASSEMBLY AND PILOT GEAR PUMP, IDLER GEAR ASSEMBLY (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

GEAR SUBASSEMBLY - idler, includes: Refs. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - ball, component parts not serviced separately

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

3

NSS

NOT SOLD SEPARAT

KEY - drive

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - jack

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - ball, component parts not serviced separately

1шт.

6

154687A1

O-RING

- retainer

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

8

800-2185

SNAP RING,M85 x 3, Int

RING, SNAP, M85 x 3, Int

1шт.

155834A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - pilot gear, includes: Refs. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - pump, pilot gear

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - dowel, pilot gear pump

2шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - pump, pilot gear

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE - thrust, pilot gear pump

1шт.

5

163565A1

RING

- seal, pilot gear pump

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, pilot gear pump

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - drive, pilot gear pump

1шт.

8

800-1114

SNAP RING,M14, Ext

RING - external retaining, No. 14, pilot gear pump

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - driven, pilot gear pump

1шт.

10

NSS

NOT SOLD SEPARAT

COUPLING - pump, pilot gear

1шт.

11

163566A1

O-RING

- pump base, pilot gear

1шт.

12

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9, Pilot gear pump

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - pilot gear pump

1шт.

14

163574A1

PLUG

- port, pilot gear pump

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - pump, pilot gear

2шт.

16

155193A1

O-RING

- pump housing, pilot gear

1шт.

17

163576A1

HEX SOC SCREW

BOLT - special, pilot gear pump

4шт.
