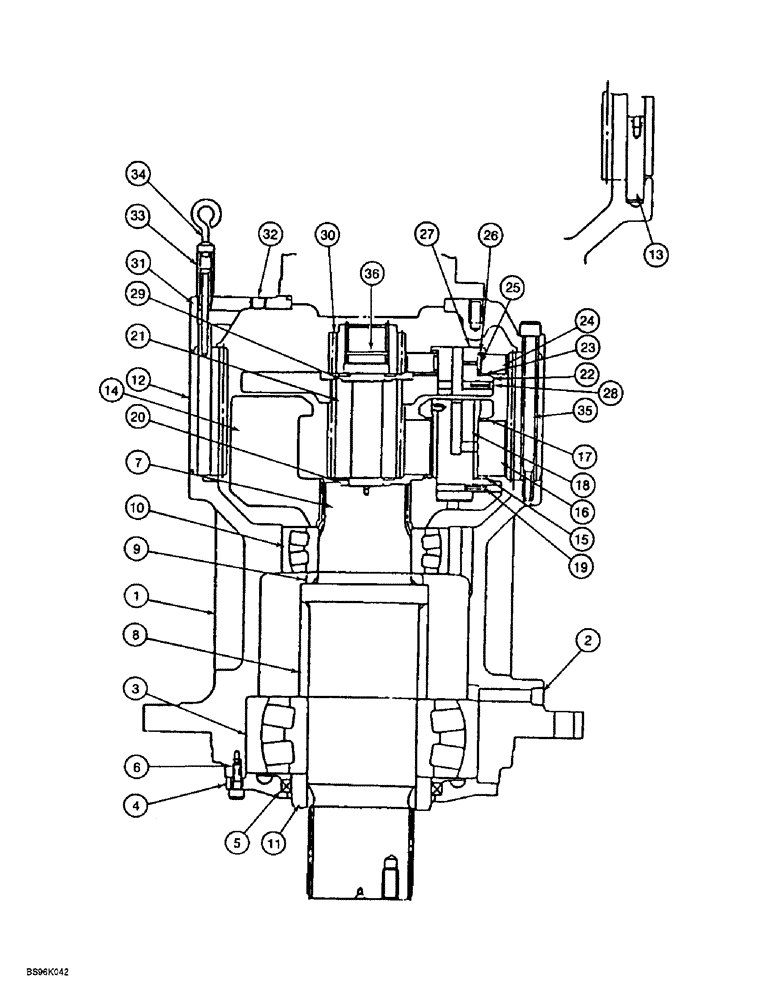

Запчасти Case 9060B (8-158) - REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS

162954A1

REDUCER

GEAR ASSEMBLY - reduction, was 158856A1

1шт.

1

150321A1

HOUSING ASSY.

HOUSING - gear assembly

1шт.

2

150829A1

PLUG

- port

1шт.

3

150252A1

BEARING,140 mm ID x 300 mm OD x 102 mm

- roller

1шт.

4

158857A1

RETAINER

- seal

1шт.

5

150267A1

OIL SEAL

SEAL - oil

1шт.

6

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

16шт.

7

150382A1

SHAFT

- drive

1шт.

8

150313A1

SPACER

- bearing

1шт.

9

150333A1

SPACER

- bearing

1шт.

10

150335A1

ROLLER BEARING,130 mm ID x 230 mm OD x 64 mm

- roller

1шт.

11

150215A1

SEALING RING

RING - seal

1шт.

12

150411A1

PINION

GEAR - ring

1шт.

13

150228A1

PIN

- special, alignment

4шт.

14

150421A1

BEARING CARRIER

CARRIER - planetary, first stage

1шт.

15

150209A1

WASHER, THRUST

WASHER - thrust

4шт.

16

150431A1

SUN GEAR

GEAR - planetary, first stage

4шт.

17

150209A1

WASHER, THRUST

WASHER - thrust

4шт.

18

150199A1

GEAR SHAFT

SHAFT - gear

4шт.

19

738-1825

LOCK PIN,M8 x 25, Slotted

4шт.

20

150308A1

PLATE, THRUST

WASHER - thrust

1шт.

21

150424A1

SUN GEAR

GEAR - sun, first stage

1шт.

22

150416A1

HOUSING

CARRIER - planetary, second stage

1шт.

23

150300A1

WASHER, THRUST

WASHER - thrust

3шт.

24

150428A1

SUN GEAR

GEAR - planetary, second stage

3шт.

25

150244A1

BEARING, NEEDLE

BEARING - needle

3шт.

26

150300A1

WASHER, THRUST

WASHER - thrust

3шт.

27

150197A1

GEAR SHAFT

SHAFT - gear

3шт.

28

738-1825

LOCK PIN,M8 x 25, Slotted

3шт.

29

150308A1

PLATE, THRUST

WASHER - thrust

1шт.

30

150423A1

SUN GEAR

GEAR - sun, second stage

1шт.

31

150378A1

COVER

- reduction gear assembly

1шт.

32

150829A1

PLUG

- port

1шт.

33

150435A1

COLUMN JACKET

TUBE - dipstick

1шт.

34

150438A1

GAUGE

DIPSTICK - oil lube

1шт.

35

150237A1

BOLT,Hex Skt

BOLT - hex socket

18шт.

36

800-1155

RETAINER,55mm ID

RING - external retaining, No. 55

1шт.
