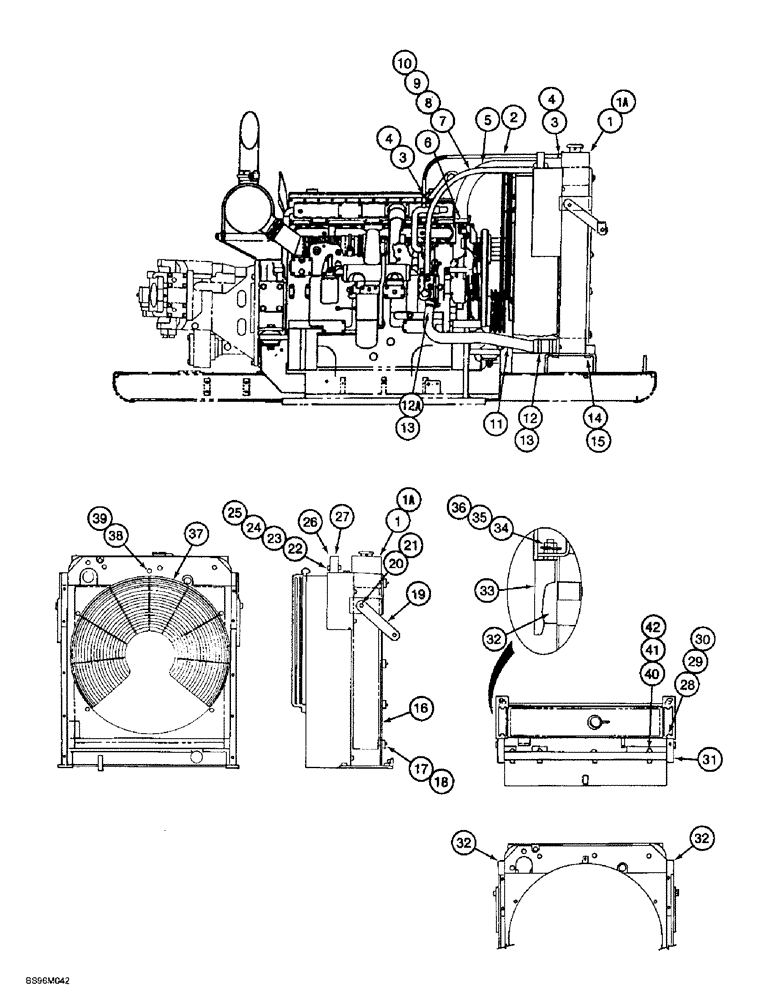

Запчасти Case 9060B (2-06) - RADIATOR MOUNTING AND ATTACHING PARTS (02) - ENGINE

1

170882A1

RADIATOR

- engine cooling

1шт.

1a

170827A1

CAP

- radiator, was 171315A1

1шт.

2

170873A1

HOSE,7.94 mm ID x 1270.00 mm

- 1270 mm (50 inch) long

1шт.

3

170867A1

ADAPTER

FITTING - barb, special, 1/4 x 1/4 inch

2шт.

4

170069A1

CLAMP

- hose

2шт.

5

170874A1

RADIATOR HOSE,57.15 mm ID x 1244.60 mm

57.15 mm ID x 1244.60 mm

1шт.

6

170877A1

CLAMP

- hose

2шт.

7

170872A1

HOSE,19.05 mm ID x 1117.60 mm

- 635 mm (25 inch) long

1шт.

8

170876A1

CLAMP

- hose

2шт.

9

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degree, 3/4 inch stem end x PT

1шт.

10

217-1036

REDUCER,1-1/2" - 11-1/2 Male NPTF x 3/4" - 14 Female NPTF

ADAPTER - reducer, 1 PT x 3/4 inch

1шт.

11

170865A1

TUBE

- radiator, lower

1шт.

12

170875A1

RADIATOR HOSE,57.15 mm ID x 127.00 mm

57.15 mm ID x 127.00 mm

2шт.

12a

170863A1

ADAPTER

- special

1шт.

13

170877A1

CLAMP

- hose

4шт.

14

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

16

170883A1

SCREEN

- radiator

2шт.

17

170884A1

NUT, WING

NUT - wing, 6 nuts used for models with air-conditioning, 10 nuts used for models without air-conditioning

6-10шт.

19

170894A1

BAR

STRAP - holding

2шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

21

150811A1

WASHER

- flat, special, 12 mm

2шт.

22

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

4шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

24

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

25

170885A1

SPACER

- mounting

4шт.

26

170888A1

SHEET

PLATE - retaining, seal

1шт.

27

170887A1

SEAL

- cushion

1шт.

31

170892A1

BRACKET

- retaining, right-hand

1шт.

32

170895A1

SEAL

- cushion

2шт.

33

170893A1

BRACKET

- retaining, left-hand

1шт.

37

170889A1

GUARD ASSY.

GUARD - fan

1шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

40

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

Bolt, Short NK, 5/16"-18 x 1", G5, Full Thd

4шт.

41

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

42

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

34

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

10шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
