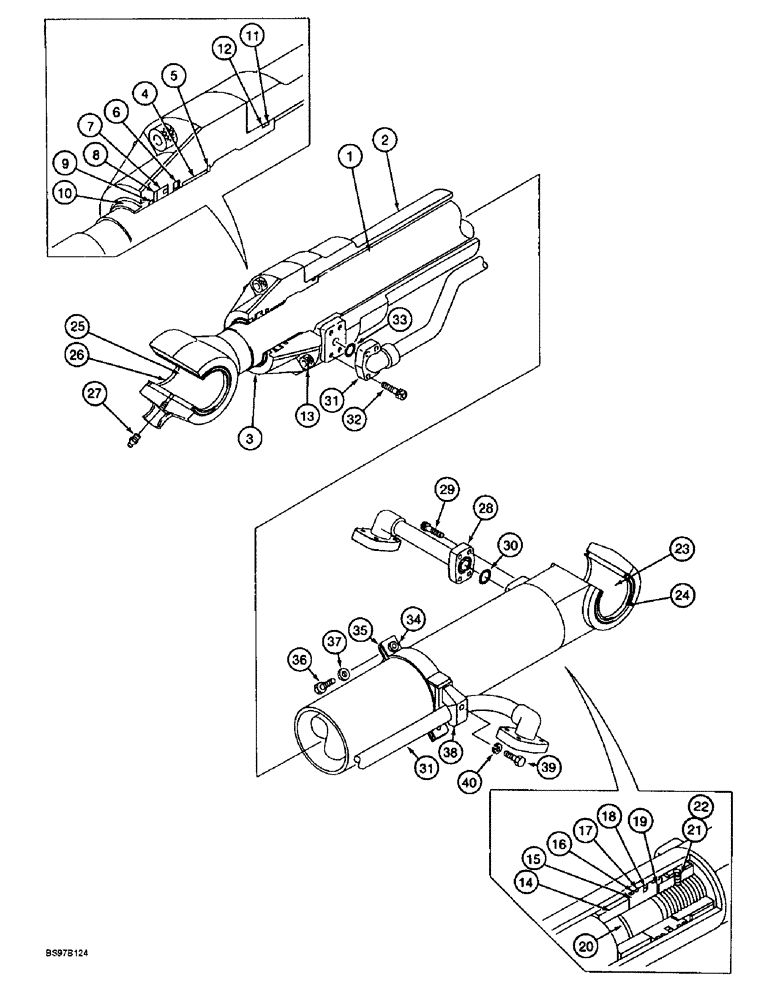

Запчасти Case 9060B (8-146) - BUCKET CYLINDER (08) - HYDRAULICS

171088A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1306 mm (51-3/8 inch) stroke, bucket, includes: Refs. 1 - 40

1шт.

1

171469A1

ROD

- cylinder

1шт.

2

171468A1

HYD TUBE

TUBE - cylinder

1шт.

3

171428A1

GLAND

- cylinder

1шт.

4

173330A1

BUSHING

- gland

1шт.

5

173331A1

RING

- retaining

1шт.

Part of Seal Kit P/N 171476A1

1шт.

6

173332A1

SEALING RING

RING - buffer

1шт.

7

171419A1

RING

SEAL - U-cup

1шт.

Part of Seal Kit P/N 171476A1

1шт.

8

173334A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 171476A1

1шт.

9

173335A1

RING

- slide

1шт.

Part of Seal Kit P/N 171476A1

1шт.

10

173336A1

WIPER

- piston rod

1шт.

Part of Seal Kit P/N 171476A1

1шт.

11

173337A1

O-RING

- piston rod

1шт.

Part of Seal Kit P/N 171476A1

1шт.

12

173338A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 171476A1

1шт.

13

171429A1

BOLT

- hex socket

8шт.

14

171431A1

RING

- cushion

1шт.

Part of Seal Kit P/N 171476A1

1шт.

15

171470A1

PISTON

- cylinder

1шт.

16

173345A1

SEAL ASSY.

RING - slide

2шт.

Part of Seal Kit P/N 171476A1

1шт.

17

171434A1

RING

- slide

2шт.

Part of Seal Kit P/N 171476A1

1шт.

18

173343A1

SEAL

SEAL - piston

1шт.

Part of Seal Kit P/N 171476A1

1шт.

19

171471A1

SHIM

- special

1шт.

20

171432A1

SEAL

RING - seal

1шт.

Part of Seal Kit P/N 171476A1

1шт.

21

156228A1

SET SCREW

Replaces 173307A1

1шт.

22

173308A1

BALL

- steel

1шт.

23

171460A1

BUSHING

- closed end

1шт.

24

173312A1

WIPER

- pin, closed end

2шт.

Part of Seal Kit P/N 171476A1

1шт.

25

171460A1

BUSHING

- rod end

1шт.

26

173312A1

WIPER

- pin, rod end

2шт.

Part of Seal Kit P/N 171476A1

1шт.

27

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

28

171472A1

HYD TUBE

TUBE - hydraulic, closed end

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

30

154543A1

O-RING

- Tube

1шт.

Part of Seal Kit P/N 171476A1

1шт.

31

171473A1

HYD TUBE

TUBE - hydraulic, rod end

1шт.

32

173384A1

BOLT

- special

4шт.

33

154543A1

O-RING

- Tube

1шт.

Part of Seal Kit P/N 171476A1

1шт.

34

171474A1

CLAMP

- band

2шт.

35

171475A1

CLAMP

- band

2шт.

36

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

37

173362A1

WASHER

- lock, special

4шт.

38

173387A1

CLAMP

- tube

2шт.

39

173388A1

BOLT

- hex

2шт.

40

112312A1

LOCK WASHER

- lock, 12 mm

2шт.

171476A1

SEAL KIT

KIT - repair, seal, includes Refs. 5, 7 - 12, 14, 16 - 18, 20, 24, 26, 30 and 33

1шт.
