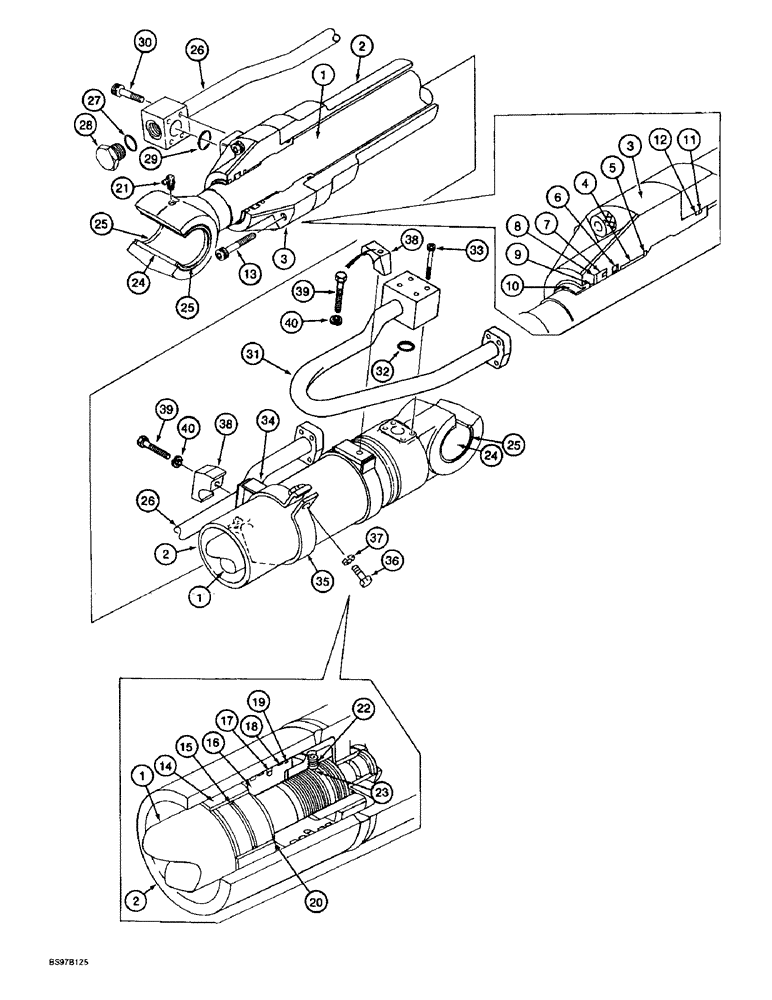

Запчасти Case 9060B (8-144) - ARM CYLINDER (08) - HYDRAULICS

171087A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 180 (7-1/8) ID x 1910 mm (75-3/16 inch) stroke, arm, includes: Refs. 1 - 40

1шт.

1

171439A1

ROD

- cylinder, includes Ref. 24

1шт.

2

171438A1

HYD TUBE

TUBE - cylinder, includes Ref. 24

1шт.

3

171440A1

GLAND

- cylinder, Refs. 4 and 5

1шт.

4

155404A1

RING

BUSHING - gland

1шт.

5

171442A1

RING

- retaining

1шт.

6

171443A1

RING

- buffer

1шт.

Part of Repair Kit P/N 171467A1

1шт.

7

171444A1

SEALING RING

- U-cup

1шт.

Part of Repair Kit P/N 171467A1

1шт.

8

171445A1

RING

- backup

1шт.

Part of Repair Kit P/N 171467A1

1шт.

9

171446A1

RING

- slide

1шт.

Part of Repair Kit P/N 171467A1

1шт.

10

171447A1

WIPER

- piston rod

1шт.

Part of Repair Kit P/N 171467A1

1шт.

11

171448A1

SEAL

- gland

1шт.

Part of Repair Kit P/N 171467A1

1шт.

12

171449A1

RING

- backup

1шт.

Part of Repair Kit P/N 171467A1

1шт.

13

171450A1

BOLT

- hex socket

8шт.

14

171451A1

RING

- cushion

1шт.

15

171452A1

SEAL

- cushion

1шт.

Part of Repair Kit P/N 171467A1

1шт.

16

171453A1

PISTON

- cylinder

1шт.

17

171455A1

SEAL

- piston

1шт.

Part of Repair Kit P/N 171467A1

1шт.

18

171456A1

RING

- wear

2шт.

Part of Repair Kit P/N 171467A1

1шт.

19

171457A1

RING

- wear

2шт.

Part of Repair Kit P/N 171467A1

1шт.

20

171454A1

SHIM

- special

1шт.

Part of Repair Kit P/N 171467A1

1шт.

21

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

22

171458A1

SET SCREW

- set

1шт.

23

171459A1

BALL

- steel

1шт.

24

171460A1

BUSHING

- tube

2шт.

25

173312A1

WIPER

- pin

4шт.

26

171462A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, for standard models without load hold, includes: Refs. 27 and 28

1шт.

See Figure 8-122 for tube on models with load hold option.

1шт.

27

171464A1

O-RING

- tube

1шт.

28

171463A1

PLUG

- port

1шт.

29

173355A1

O-RING

- tube

1шт.

30

173356A1

BOLT

- hex socket

4шт.

31

171461A1

HYD TUBE

TUBE - hydraulic

1шт.

32

173355A1

O-RING

- tube

1шт.

33

173356A1

BOLT

- hex socket

4шт.

34

171465A1

CLAMP

- band

3шт.

35

171466A1

CLAMP

- band

3шт.

36

173318A1

BOLT

- hex, special

6шт.

37

173362A1

WASHER

- lock, special

6шт.

38

173734A1

CLAMP

- tube

3шт.

39

173364A1

BOLT

- hex, special

3шт.

40

173322A1

WASHER

- lock, 14 mm

3шт.

171467A1

SEAL KIT

KIT - repair, includes Refs. 6 - 12, 15, 17 - 20 and 25

1шт.
