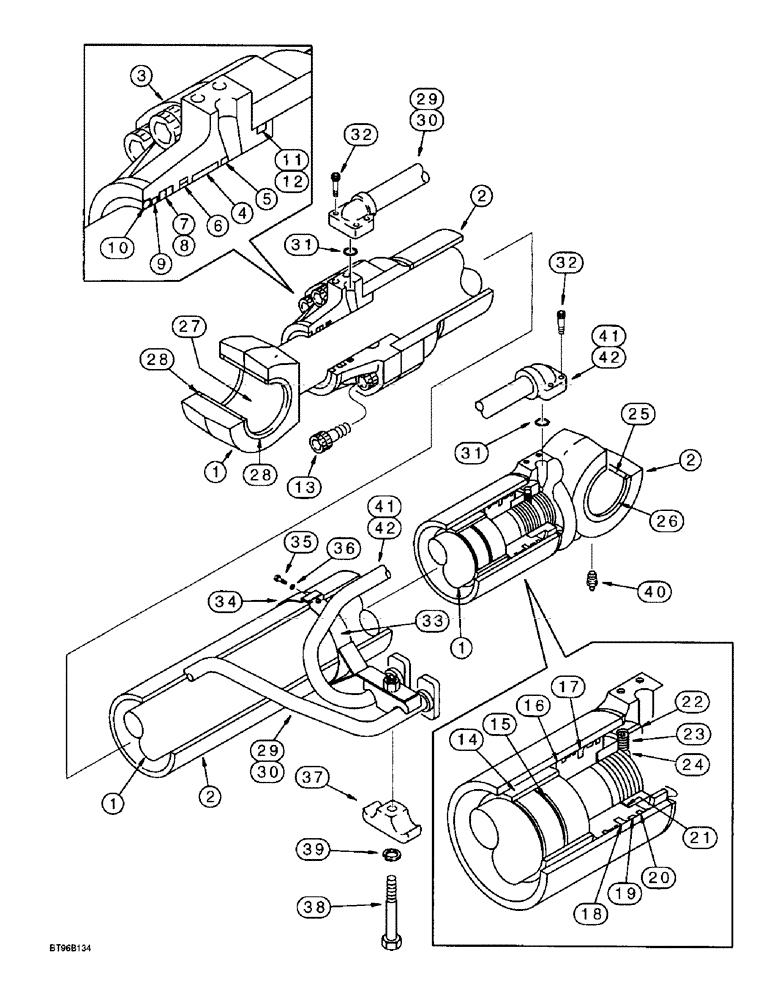

Запчасти Case 9060B (8-140) - BOOM CYLINDERS (08) - HYDRAULICS

171085A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1580 mm (62-3/16 inch) stroke, boom, right-hand, includes: Refs. 1 - 42

1шт.

171086A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1580 mm (62-3/16 inch) stroke, boom, left-hand, includes: Refs. 1 - 42

1шт.

1

171430A1

ROD

- cylinder, includes Ref. 27

1шт.

2

171423A1

HYD TUBE

TUBE - cylinder, includes Ref. 25

1шт.

3

171428A1

GLAND

- cylinder, includes: Refs. 4 and 5

1шт.

4

173330A1

BUSHING

- gland

1шт.

5

173331A1

RING

- retaining

1шт.

6

173332A1

SEALING RING

RING - buffer

1шт.

Part of Seal Kit P/N 171435A1

1шт.

7

155114A1

RING

Seal - U-cup, Gland

1шт.

Part of Seal Kit P/N 171435A1

1шт.

8

173334A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 171435A1

1шт.

9

173335A1

RING

- slide

1шт.

Part of Seal Kit P/N 171435A1

1шт.

10

173336A1

WIPER

- piston rod

1шт.

Part of Seal Kit P/N 171435A1

1шт.

11

173337A1

O-RING

- piston rod

1шт.

Part of Seal Kit P/N 171435A1

1шт.

12

173338A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 171435A1

1шт.

13

171429A1

BOLT

- hex socket

8шт.

14

171431A1

RING

- cushion

1шт.

15

171432A1

SEAL

RING - seal

1шт.

Part of Seal Kit P/N 171435A1

1шт.

16

171433A1

PISTON

- cylinder

1шт.

17

173343A1

SEAL

SEAL - piston, includes: Ref. 18

1шт.

Part of Seal Kit P/N 171435A1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit P/N 171435A1

1шт.

19

171434A1

RING

- slide

2шт.

Part of Seal Kit P/N 171435A1

1шт.

20

173345A1

SEAL ASSY.

RING - slide

2шт.

Part of Seal Kit P/N 171435A1

1шт.

21

155733A1

SHIM

Washer - Special

1шт.

Part of Seal Kit P/N 171435A1

1шт.

171435A1

SEAL KIT

KIT - seal replacement, includes: Refs. 6 - 12, 15, 17 - 21

1шт.

See Figure 8-118 for tubes on models with load hold option.

1шт.

22

173347A1

NUT

- piston retaining

1шт.

23

156228A1

SET SCREW

Replaces 173307A1

1шт.

24

173308A1

BALL

- steel

1шт.

25

171425A1

BUSHING

- tube

1шт.

26

163840A1

WIPER SEAL

RING - wiper

2шт.

27

171426A1

BUSHING

- cylinder rod

1шт.

28

171427A1

SHAFT SEAL

RING - wiper

2шт.

29

171437A1

HYD TUBE

TUBE - hydraulic, rod end, right-hand boom cylinder only

1шт.

30

171421A1

HYD TUBE

TUBE - hydraulic, rod end, left-hand boom cylinder only

1шт.

31

154543A1

O-RING

- Tube

2шт.

32

NSS

NOT SOLD SEPARAT

BOLT - special

8шт.

33

171424A1

CLAMP

- band

1шт.

34

173361A1

CLAMP

- band

1шт.

35

173318A1

BOLT

- hex, special

2шт.

36

173362A1

WASHER

- lock, special

2шт.

37

173320A1

HOLDER

CLAMP - tube

2шт.

38

173321A1

BOLT

- special

1шт.

39

173322A1

WASHER

- lock, 14 mm

1шт.

40

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

41

171436A1

HYD TUBE

TUBE - hydraulic, closed end of right-hand boom cylinder only, standard models without load hold option

1шт.

See Figure 8-118 for tubes on models with load hold option.

1шт.

42

171422A1

HYD TUBE

TUBE - hydraulic, closed end of left-hand boom cylinder only, standard models without load hold option

1шт.

See Figure 8-118 for tubes on models with load hold option.

1шт.
