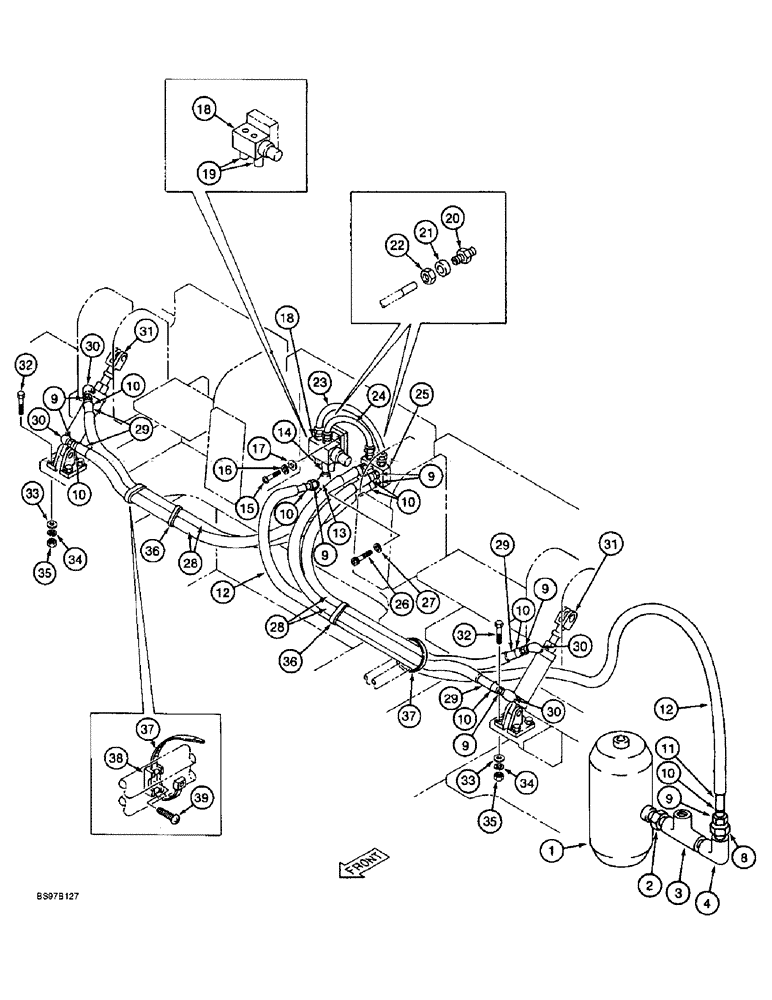

Запчасти Case 9060B (8-136) - AIR LINES, COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

TANK - air, see Figure 8-4

1шт.

2

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

3

152135A1

TEE

- air line, at tank

1шт.

4

152155A1

ELBOW

- 90 degree

1шт.

8

151055A1

BUSHING

- reducer

1шт.

9

151235A1

CONNECTOR, ELEC

CONNECTOR - straight, barbed end

10шт.

10

170299A1

CLAMP

- adjustable, wire-type, at stem, replaces 170441A1

10шт.

11

280747A1

HOSE

- 3000 mm (118 inch) long, tank to solenoid valve

1шт.

12

226894A1

CONDUIT

TUBE - corrugated, plastic, 2500 mm (98-7/16 inch) long

1шт.

13

152943A1

ELBOW

- 90 degree

1шт.

14

153633A1

NIPPLE, LUBE

CONNECTOR - straight

1шт.

15

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 8 mm

4шт.

16

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

4шт.

17

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm) M4

4шт.

152790A1

VALVE

ASSEMBLY - solenoid, includes: Refs. 18 - 19

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, counterweight removal

1шт.

19

NSS

NOT SOLD SEPARAT

SILENCER - air

2шт.

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight, includes: Refs. 20 - 22

4шт.

20

153527A1

CONNECTOR, ELEC

ADAPTER - straight, air line

1шт.

21

153528A1

SLEEVE

- compression

1шт.

22

153529A1

UNION

NUT - compression fitting

1шт.

23

280761A1

HOSE

TUBE - nylon, 280 mm (11 inch) long, air line, solenoid to manifold, long

1шт.

24

280762A1

HOSE

TUBE - nylon, 180 mm (7 inch) long, air line, solenoid to manifold, short

1шт.

25

152798A1

MANIFOLD

- air line

1шт.

26

862-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 30 mm, class 12.9

2шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

28

280754A1

CONDUIT

SLEEVE - corrugated, 1300 mm (51 inch) long, manifold to air cylinder

4шт.

29

280749A1

HOSE

- 1450 mm (57 inch) long, manifold to air cylinder

4шт.

30

152925A1

ELBOW

- 90 degree

4шт.

31

152791A1

CYLINDER

ASSEMBLY - air, parts list Figure 8-138

2шт.

32

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, class 10.9

8шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

34

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

35

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

36

170308A1

BAND

STRAP - tie

1шт.

37

170308A1

BAND

STRAP - tie

1шт.

38

150860A1

COLLAR

BRACKET - support

1шт.

39

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm, clamp bracket mounting

1шт.
