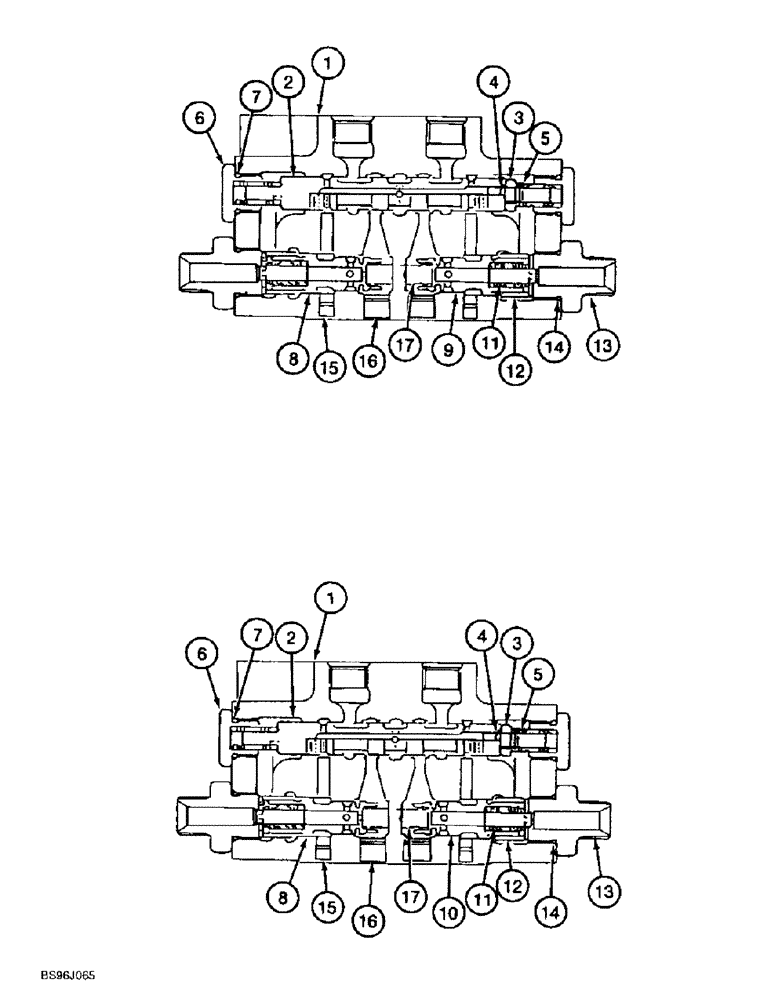

Запчасти Case 9060B (8-128) - 164998A1 CUSHION VALVE, FOR MODELS WITH LOAD HOLDING OPTION (08) - HYDRAULICS

164998A1

VALVE

ASSEMBLY - cushion, includes: Refs. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

3

NSS

NOT SOLD SEPARAT

BOLT - special

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - spool end

2шт.

5

160256A1

SPRING

- compression

4шт.

6

164999A1

PLUG

- special, spring retaining

4шт.

7

154474A1

O-RING

- plug

4шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

11

160258A1

SPRING

- compression

4шт.

12

NSS

NOT SOLD SEPARAT

COLLAR - spring

4шт.

13

165000A1

PLUG

ADAPTER - straight, includes: Ref. 14

4шт.

14

154486A1

O-RING

- adapter

1шт.

15

165001A1

PLUG

- port

11шт.

16

165002A1

PLUG

- port

8шт.

17

160257A1

SPRING

- compression

4шт.
