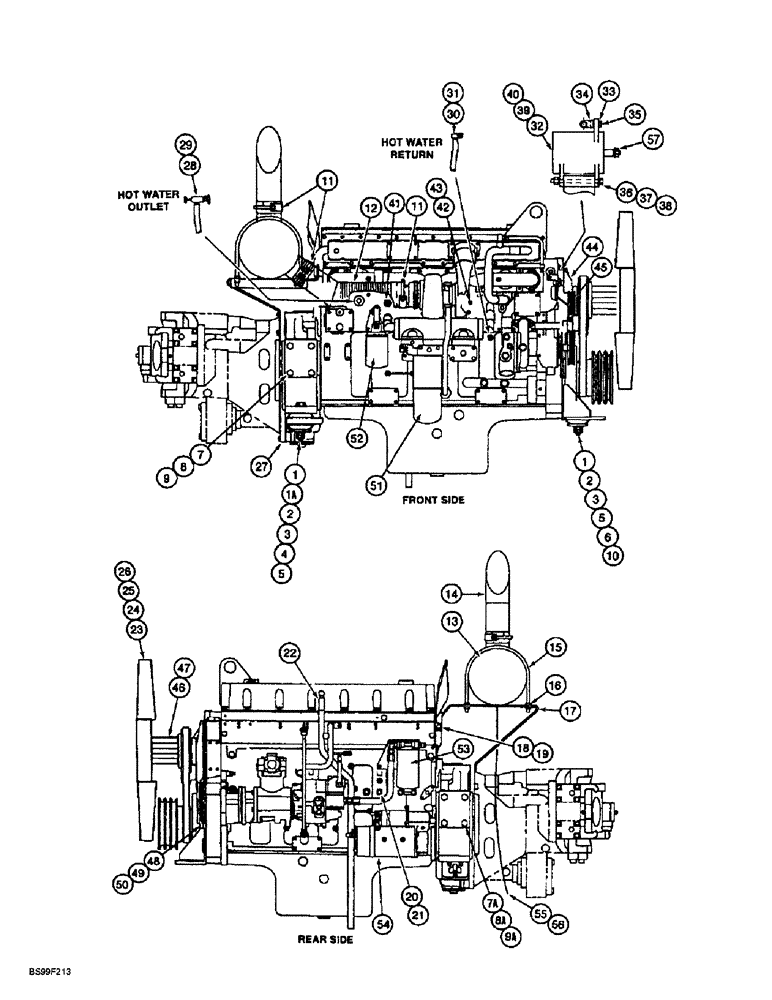

Запчасти Case 9060B (2-02) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

170861A1

1шт.

See your authorized Cummins engine dealer for servicing engine and engine replacement.

1шт.

1

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

3шт.

1a

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

1шт.

2

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

8шт.

3

829-1420

NUT,M20, Cl 10

8шт.

4

150877A1

RUBBER WASHER

ISOLATOR - rubber

4шт.

5

173060A1

PLATE

- mounting

4шт.

6

151304A1

INSULATOR BLOCK

ISOLATOR - rubber

4шт.

7

170903A1

SUPPORT

BRACKET - engine mounting, left-hand rear

1шт.

7a

170930A1

SUPPORT

BRACKET - engine mounting, right-hand rear

1шт.

8

170914A1

BOLT

- hex, special

8шт.

8a

170931A1

BOLT

- hex, special

4шт.

9

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

9a

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

10

170904A1

SUPPORT

BRACKET - engine mounting, front

1шт.

11

173196A1

CLAMP

- special, exhaust pipe

3шт.

12

170899A1

PIPE

- exhaust, Serial Range: turbocharger-muffler

1шт.

13

171537A1

MUFFLER

- engine, replaces 170898A1

1шт.

14

173716A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, replaces 170900A1

1шт.

15

170901A1

U-BOLT,1/2" - 13 x 257.20mm W x 293.60mm L

- muffler

2шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

17

170897A1

BRACKET

- muffler, mounting

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

19

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

20

170905A1

BUSHING

- reducer

1шт.

21

170663A1

SWITCH

- oil pressure

1шт.

22

170906A1

HOSE,15.88 mm ID x 1828.80 mm

1шт.

23

170912A1

FAN

- cooling

1шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

26

413-6108

BOLT,Hex, 3/8" - 16 x 6-3/4", Gr 5

- hex, 3/8 NC x 6-3/4 inch

1шт.

27

170673A1

SENSOR

- tachometer

1шт.

28

171029A1

BUSHING

- reducer

1шт.

29

171030A1

VALVE

- shutoff

1шт.

30

171031A1

STEM

- hose

1шт.

31

171029A1

BUSHING

- reducer

1шт.

32

170666A1

ALTERNATOR

- 24 volt, 70 amp

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

34

171291A1

SPACER

- mounting

1шт.

35

171292A1

BOLT

- hex, special

1шт.

36

171287A1

BOLT

- hex, special

1шт.

37

171289A1

WASHER

- special

1шт.

38

171290A1

LOCK NUT

NUT - lock

1шт.

39

171288A1

BOLT

- hex, special

1шт.

40

171281A1

BOLT

- hex, special

1шт.

41

171279A1

SWITCH

- pressure

1шт.

42

153493A1

BUSHING

- reducer

1шт.

43

159147A1

SENSOR

- temperature

1шт.

44

171284A1

PULLEY

- alternator

1шт.

45

171285A1

BELT

Drive

1шт.

46

171293A1

SPACER

- fan, 102 mm (4 inch)

1шт.

47

171280A1

SPACER

- fan, 38 mm (1-1/2 inch)

1шт.

48

171281A1

BOLT

- hex, special

2шт.

49

171282A1

BOLT

- hex, special

4шт.

50

171283A1

WASHER

- special

6шт.

51

90-7101T1

FILTER, ENGINE OIL

FILTER - engine oil

1шт.

52

A77544

FILTER

- water conditioning, precharge

1шт.

53

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

54

173506A1

COVER

- jump start

1шт.

55

171538A1

TUBE

- drain, muffler, if used

1шт.

56

170299A1

CLAMP

- adjustable, wire-type, if used

1шт.

57

171776A1

NUT

- special, alternator pulley mounting

1шт.
