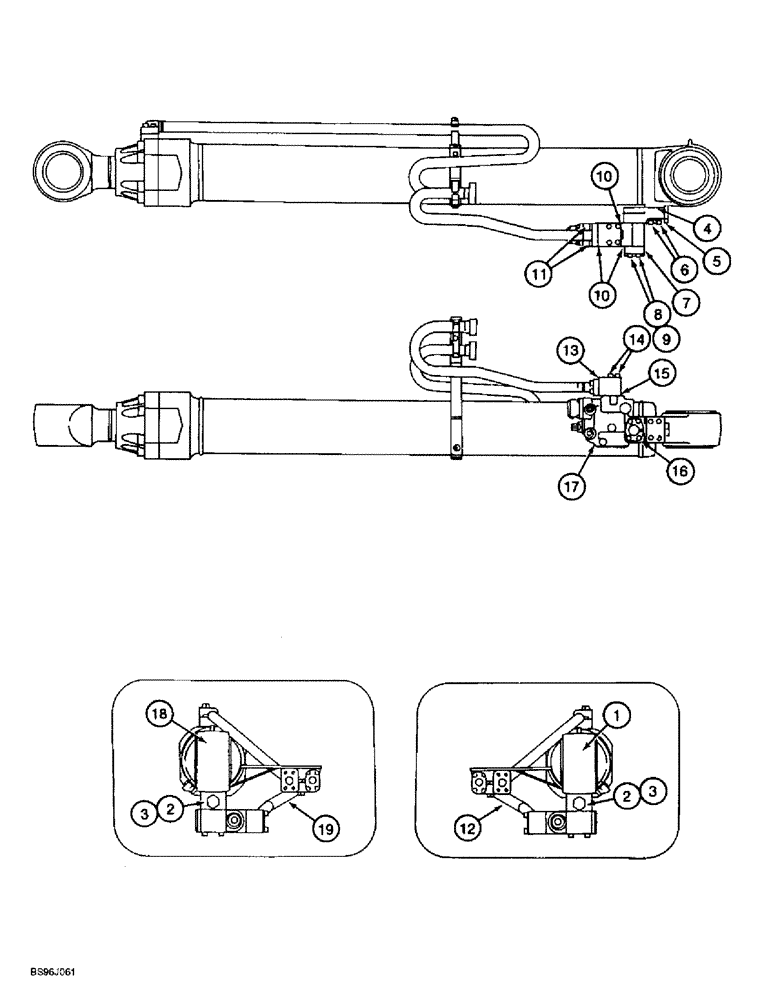

Запчасти Case 9060B (8-118) - LOAD HOLDING OPTION, BOOM CYLINDERS WITH HOLDING VALVES (08) - HYDRAULICS

1

171085A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1580 mm (62-3/16 inch) stroke, right-hand boom, with hydraulic tube at rod end, parts list Figure 8-140 and 8-143

1шт.

2

162659A1

PLUG

- port, manifold end

2шт.

3

154523A1

O-RING

- port plug

2шт.

4

162246A1

O-RING

-, Serial Range: manifold-cylinder

2шт.

5

164964A1

MANIFOLD

- hydraulic, Serial Range: valve-cylinder

2шт.

6

862-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 60 mm, class 12.9

8шт.

7

170690A1

FLANGE

- split

4шт.

8

828-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

- hex, 12 - 1.75 x 130 mm, class 10.9

8шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

10

162246A1

O-RING

- manifold and valve

6шт.

11

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

8шт.

12

171364A1

HYD TUBE,34 mm OD

TUBE - hydraulic, right-hand boom cylinder, at holding valve

1шт.

13

162020A1

MANIFOLD

- hydraulic, Serial Range: valve-tube

2шт.

14

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 80 mm, class 12.9

8шт.

15

162246A1

O-RING

-, Serial Range: manifold-valve

2шт.

16

170691A1

PLUG

- port, at split flange

2шт.

17

164963A1

SAFETY VALVE

VALVE ASSEMBLY - boom cylinder holding, parts list Figure 8-126

2шт.

18

171086A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1580 mm (62-3/16 inch) stroke, left-hand boom, with hydralic tube at rod end, parts list Figure 8-140 and 8-143

1шт.

19

171365A1

HYD TUBE,34 mm OD

TUBE - hydraulic, left-hand boom cylinder, at holding valve

1шт.
