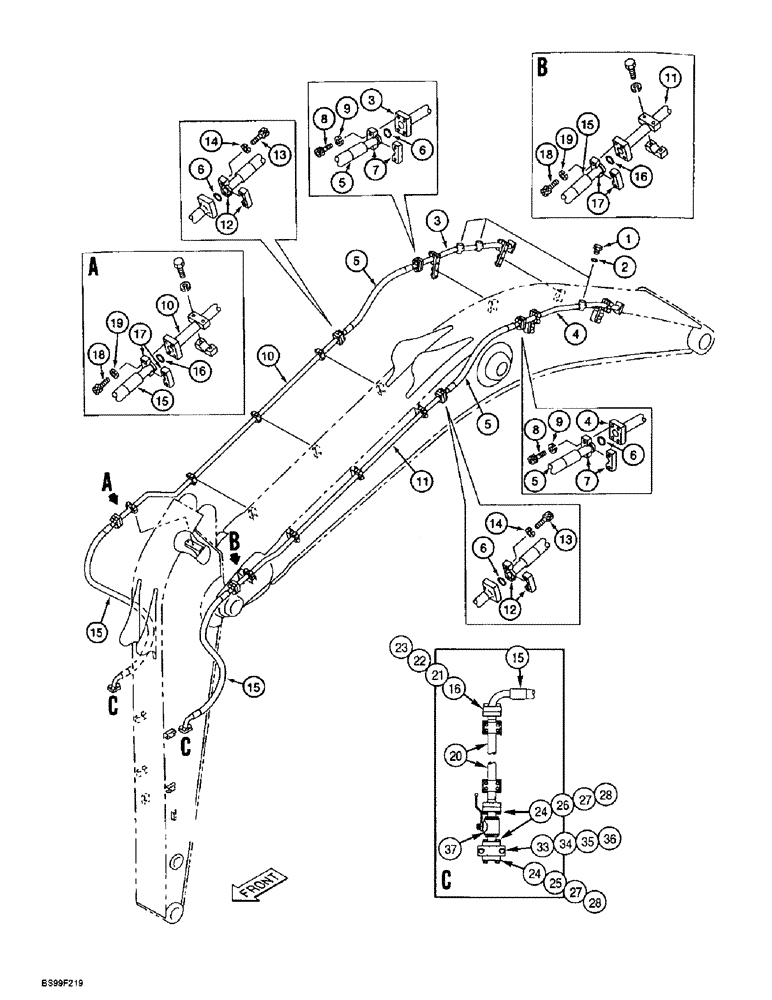

Запчасти Case 9060B (8-113A) - AUXILIARY EQUIPMENT OPTION LINES,2.5, 3.4, 4.0 OR 5.4 METER ARM, P.I.N. EAC0601060 AND AFTER (08) - HYDRAULICS

1

152924A1

PLUG

- port, if used

3шт.

2

154503A1

O-RING

- plug, if used

1шт.

3

171817A1

TUBE

- at lower boom, right-hand side

1шт.

4

171817A1

TUBE

- at lower boom, left-hand side

1шт.

5

171816A1

TUBE

- boom, center

2шт.

6

164450A1

O-RING

- hose

4шт.

7

150124A1

FLANGE

- split

4шт.

8

827-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

Hex, M14 x 3 x 55, 10.9

8шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

10

171810A1

TUBE

- upper boom, right-hand

1шт.

11

171810A1

TUBE

- upper boom, left-hand

1шт.

12

150124A1

FLANGE

- split

4шт.

13

827-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

Hex, M14 x 3 x 55, 10.9

8шт.

14

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

15

171726A1

HOSE ASSY.

HOSE - boom-to-arm junction, 2.5 M arm only

2шт.

15

171730A1

HOSE ASSY.

HOSE - boom-to-arm junction, 3.4 M arm only

2шт.

15

171735A1

HOSE ASSY.

HOSE - boom-to-arm junction, 4.0 or 5.4 M arm only

2шт.

16

164450A1

O-RING

- hose

4шт.

17

150124A1

FLANGE

- split

4шт.

18

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9

8шт.

19

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

20

171743A1

TUBE

- 5.4 M arm at stop valve

2шт.

20

171729A1

TUBE

- 3.4 or 4.0 M arm at stop valve

2шт.

20

171727A1

TUBE

- 2.5 M arm at stop valve

2шт.

21

150124A1

FLANGE

- split

4шт.

22

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 55 mm, class 12.9

8шт.

23

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

24

164450A1

O-RING

- hose

6шт.

25

170794A1

FLANGE

- end cap

2шт.

26

150124A1

FLANGE

- split

8шт.

27

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

24шт.

28

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

24шт.

29

171806A1

PLATE

- support, tube clamp, four hole

4шт.

30

171807A1

CLAMP

- tube

8шт.

31

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

16шт.

32

170909A1

WASHER

- special

16шт.

33

171724A1

MANIFOLD

- hydraulic

2шт.

34

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

4шт.

35

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

36

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

37

171725A1

VALVE

- stop

2шт.
