(8-112) - AUXILIARY EQUIPMENT OPTION LINES - 2.5M, 3.4M & 4.0M ARMS, PRIOR TO P.I.N. EAC0601060

Запчасти Case 9060B (8-112) - AUXILIARY EQUIPMENT OPTION LINES - 2.5M, 3.4M & 4.0M ARMS, PRIOR TO P.I.N. EAC0601060 (08) - HYDRAULICS

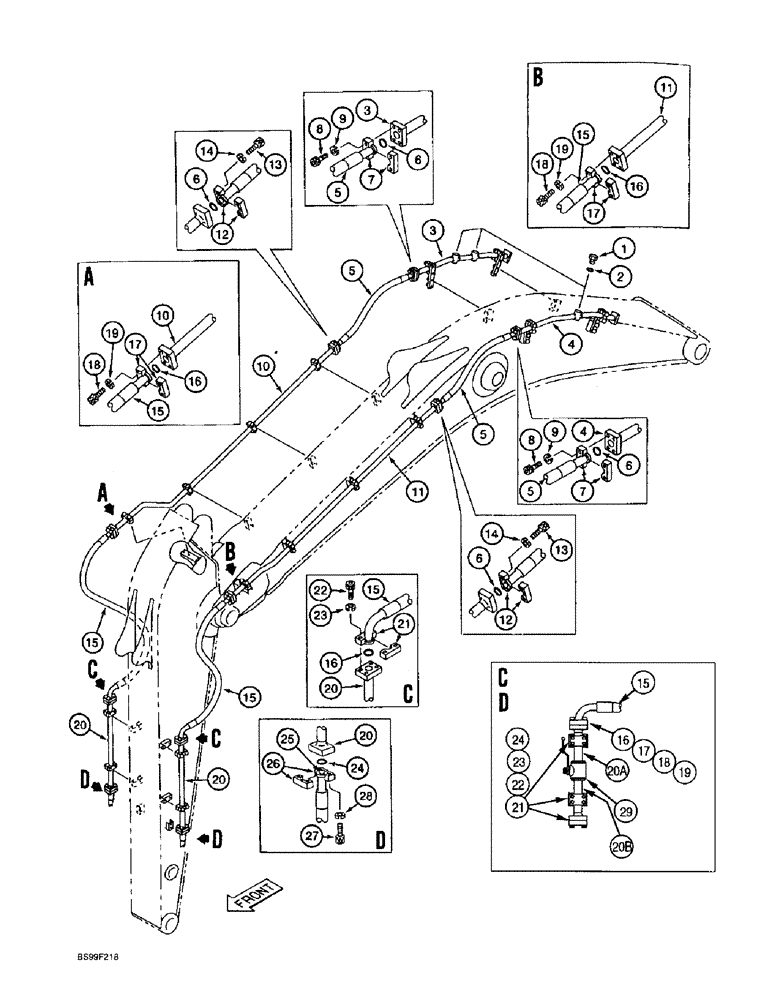

Схема запчастей Case 9060B - (8-112) - AUXILIARY EQUIPMENT OPTION LINES - 2.5M, 3.4M & 4.0M ARMS, PRIOR TO P.I.N. EAC0601060 (08) - HYDRAULICS
3
11
26
20
5
20
10
15
7
19
15
18
16
16
17
17
21
1
22
20
9
19
23
16
5
15
9
18
8
6
17
23
15
14
7
4
25
3
24
20b
12
5
6
5
22
18
14
2
13
8
10
29
21
15
13
6
11
6
28
20a
19
15
4
27
12
24
20
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

- port, if used

3шт.

2

154503A1

O-RING

- plug, if used

1шт.

3

171164A1

TUBE

- at lower boom, right-hand side

1шт.

4

171165A1

TUBE,34 mm OD

- at lower boom, left-hand side

1шт.

5

171161A1

HOSE ASSY.

HOSE - 1300 mm (51-3/16 inch) long, at boom

2шт.

6

162246A1

O-RING

- hose

4шт.

7

150561A1

FLANGE

- split

4шт.

8

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

8шт.

9

112312A1

LOCK WASHER

- lock, 12 mm

8шт.

10

171162A1

TUBE

- upper boom, right-hand cylinder supply line

1шт.

11

171163A1

TUBE

- upper boom, left-hand cylinder supply line

1шт.

12

150561A1

FLANGE

- split

4шт.

13

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

8шт.

14

112312A1

LOCK WASHER

- lock, 12 mm

8шт.

15

171169A1

HOSE ASSY.

HOSE - 1950 mm (76-3/4 inch) long, boom-to-arm junction, 2.5 M arm only, if used

2шт.

15

171167A1

HOSE ASSY.

HOSE - 2050 mm (80-3/4 inch) long, boom-to-arm junction, 3.4 M arm only, if used

2шт.

15

171168A1

HOSE ASSY.

HOSE - 2700 mm (106-1/4 inch) long, boom-to-arm junction, 4.0 M arm only, if used

2шт.

16

155211A1

O-RING

- hose

4шт.

17

150561A1

FLANGE

- split

4шт.

18

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

8шт.

19

112312A1

LOCK WASHER

- lock, 12 mm

8шт.

20

171300A1

TUBE,34 mm OD

- models without stop valve, 3.4 or 4.0 M arm only, if used

2шт.

20a

171767A1

TUBE

- models with stop valve, 3.4 or 4.0 M arm at stop valve inlet port, if used

2шт.

20a

171766A1

TUBE

- models with stop valve, 2.5 M arm at stop valve inlet port

2шт.

20b

171766A1

TUBE

- models with stop valve, 2.5, 3.4 or 4.0 M arm at stop valve outlet port, if used

2шт.

21

150561A1

FLANGE

- split

4-12шт.

22

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

8-24шт.

23

112312A1

LOCK WASHER

- lock, 12 mm

8-24шт.

24

155211A1

O-RING

- hose

2-6шт.

25

171153A1

PLUG

- hydraulic line

2шт.

26

150561A1

FLANGE

- split

4шт.

27

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

8шт.

28

112312A1

LOCK WASHER

- lock, 12 mm

8шт.

29

171311A1

STOP

VALVE - stop, if used

2шт.
