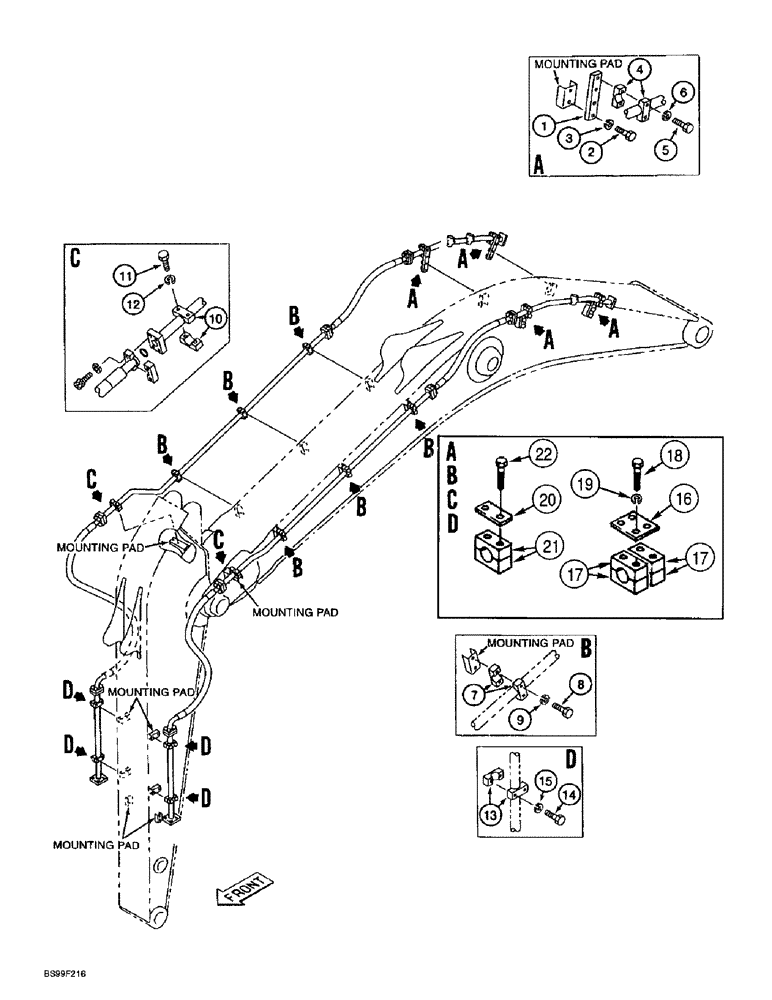

Запчасти Case 9060B (8-110) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY & CYLINDER LINE MOUNTING, 3.4/4.0M ARM, PRIOR TO EAC0601060 (08) - HYDRAULICS

1

162614A1

BAR

BRACKET - mounting

4шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

8шт.

4

171166A1

CLAMP

- tube

8шт.

5

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

8шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

7

171166A1

CLAMP

- tube

12шт.

8

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

12шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

10

171166A1

CLAMP

- tube

4шт.

11

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

13

171166A1

CLAMP

- tube

8шт.

14

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

8шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

16

171806A1

PLATE

- support, tube clamp, four hole, Start Serial: EAC0601060

8шт.

17

171807A1

CLAMP

- tube, Start Serial: EAC0601060

16шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

, Start Serial: EAC0601060

32шт.

19

170909A1

WASHER

- special, Start Serial: EAC0601060

32шт.

20

171805A1

PLATE

- support, tube clamp, two hole, Start Serial: EAC0601060

6шт.

21

171807A1

CLAMP

- tube, Start Serial: EAC0601060

6шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

, Start Serial: EAC0601060

12шт.
