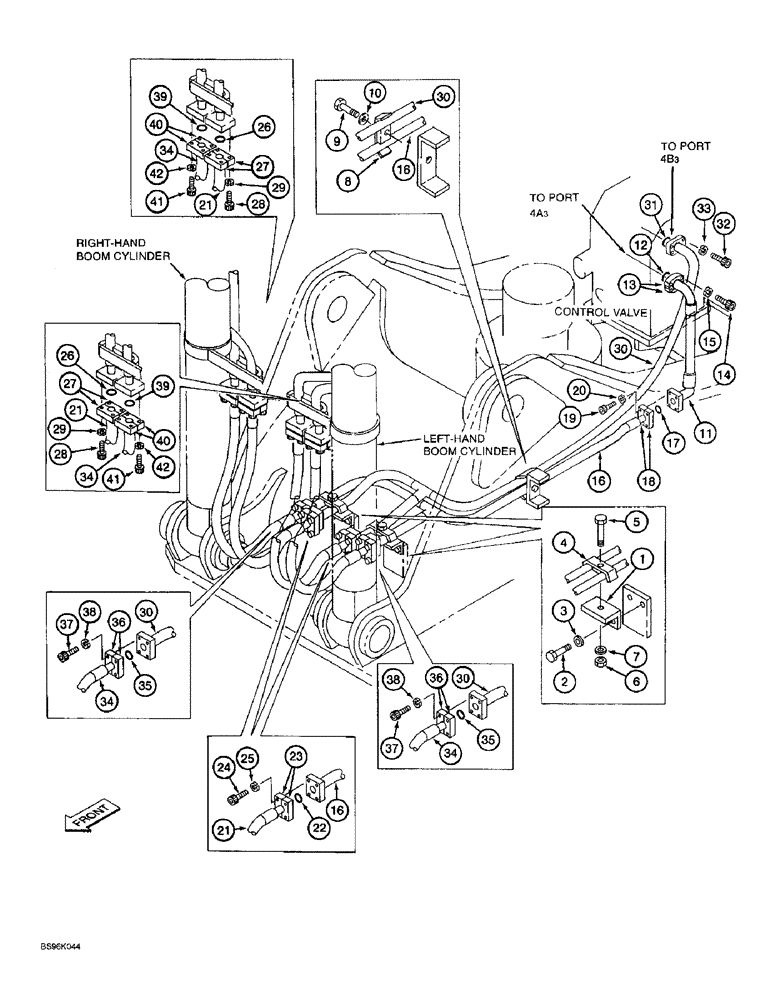

Запчасти Case 9060B (8-048) - BOOM CYLINDER LINES , BOOM-UP & BOOM-DOWN (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
170143A1
HOLDER
BRACKET - mounting
2шт.
2
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 30 mm, class 10.9
4шт.
3
150811A1
WASHER
- flat, special, 12 mm
4шт.
4
162308A1
COLLAR
CLAMP - tube
2шт.
5
814-12090
BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8
- hex, 12 - 1.75 x 90 mm
2шт.
6
829-1412
NUT,M12, Cl 10.9
- hex, 12 mm - 1.75, class 10
2шт.
7
150811A1
WASHER
- flat, special, 12 mm
2шт.
8
152995A1
COLLAR
CLAMP - tube
1шт.
9
614-16080
BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd
1шт.
10
150814A1
WASHER,17mm ID x 32mm OD x 4.5mm Thk
- flat, special
1шт.
11
170140A1
HOSE
- 435 mm (17-1/8 inch) long, boom-up circuit (from control valve port \xd2 4B3\xd3 to boom-up tube), lines
1шт.
12
153626A1
O-RING
- hose, boom-up lines
1шт.
13
150124A1
FLANGE
- split, boom-up lines
2шт.
14
827-14050
BOLT,Hex, M14 x 2 x 50mm, Cl 10.9
Boom-up lines Hex, M14 x 50, 10.9, Full Thd
4шт.
15
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER - lock, 14 mm, Boom-up lines
4шт.
16
170141A1
TUBE
- boom-up (from boom-up circuit hose to boom cylinder hoses), lines
1шт.
17
153626A1
O-RING
- tube, boom-up lines
1шт.
18
150124A1
FLANGE
- split, boom-up lines
2шт.
19
827-14050
BOLT,Hex, M14 x 2 x 50mm, Cl 10.9
Boom-up lines Hex, M14 x 50, 10.9, Full Thd
4шт.
20
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER - lock, 14 mm, Boom-up lines
4шт.
21
162979A1
HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm
- Boom-up cylinder (From boom-up tube to boom cylinders, Lines 25.40 mm ID x 1080.00 mm
2шт.
22
162246A1
O-RING
- hose, boom-up lines
2шт.
23
A12306
FLANGE
CLAMP - split flange, boom-up lines
4шт.
24
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
8шт.
25
112309A1
LOCK WASHER
- lock, special, boom-up lines
8шт.
26
162246A1
O-RING
- hose, boom-up lines
2шт.
27
A12306
FLANGE
CLAMP - split flange, boom-up lines
4шт.
28
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
8шт.
29
112309A1
LOCK WASHER
- lock, special, boom-up lines
8шт.
30
170139A1
TUBE
- boom-down (from control valve port \xd2 4A3\xd3 to boom-down cylinder hoses), lines
1шт.
31
154548A1
O-RING
- tube, boom-down lines
1шт.
32
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Boom-down lines
4шт.
33
892-11010
LOCK WASHER,M10
Boom-down lines M10
4шт.
34
162979A1
HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm
- Boom-down cylinder (From boom-down tube to boom cylinders), Lines 25.40 mm ID x 1080.00 mm
2шт.
35
162246A1
O-RING
- hose, boom-down lines
2шт.
36
A12306
FLANGE
CLAMP - split flange, boom-down lines
4шт.
37
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom-down lines
8шт.
38
112309A1
LOCK WASHER
- lock, special, boom-down lines
8шт.
39
162246A1
O-RING
- hose, boom-down lines
2шт.
40
A12306
FLANGE
CLAMP - split flange, boom-down lines
4шт.
41
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom-down lines
8шт.
42
112309A1
LOCK WASHER
- lock, special, boom-down lines
8шт.
Выбрано товаров: 42
