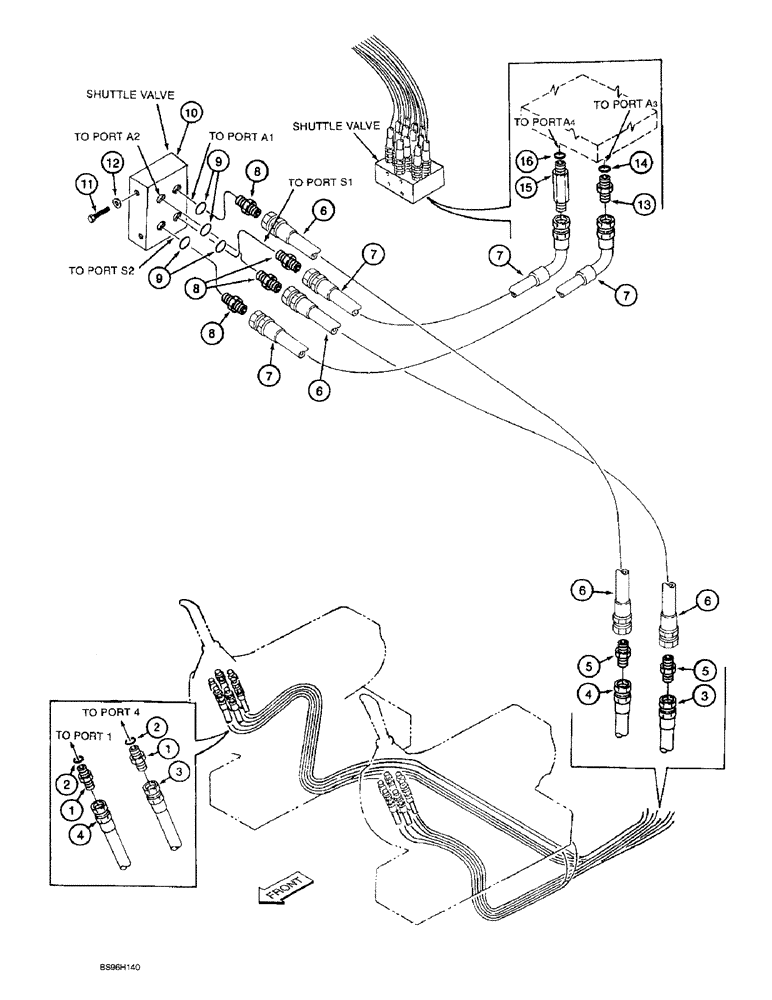

Запчасти Case 9060B (8-045A) - BOOM CONTROL LINES, MODELS WITH COUNTERWEIGHT REMOVAL (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 2

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, boom-up control line, right-hand console to counterweight shuttle valve (at right-hand manual control valve port \xd2 4\xd3 to counterweight shuttle valve port \xd2 A2\xd3 )

1шт.

4

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- RH manual control valve port \xd2 2\xd3 to counterweight shuttle valve port \xd2 A1\xd3 9.50 mm ID x 2100.00 mm

1шт.

5

158652A1

ADAPTER

- straight

2шт.

6

152751A1

HOSE,95.00 mm ID x 1000.00 mm

- Boom-up and boom-down control lines, RH console to ports \xd2 A1\xd3 and \xd2 A2\xd2 at counterweight shuttle valve 95.00 mm ID x 1000.00 mm

2шт.

7

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, boom-up and boom-down control lines, counterweight shuttle valve (ports \xd2 S1\xd3 and \xd2 S2\xd3 ) to main shuttle valve (ports \xd2 A3\xd3 and \xd2 A4\xd3 )

2шт.

8

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 9

4шт.

9

154475A1

O-RING

- adapter

1шт.

10

164109A1

VALVE

- shuttle, counterweight removal

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 14

1шт.

14

154475A1

O-RING

- adapter

1шт.

15

163421A1

STUD

ADAPTER - special, Includes: Ref. 16

1шт.

16

154475A1

O-RING

- adapter

1шт.
