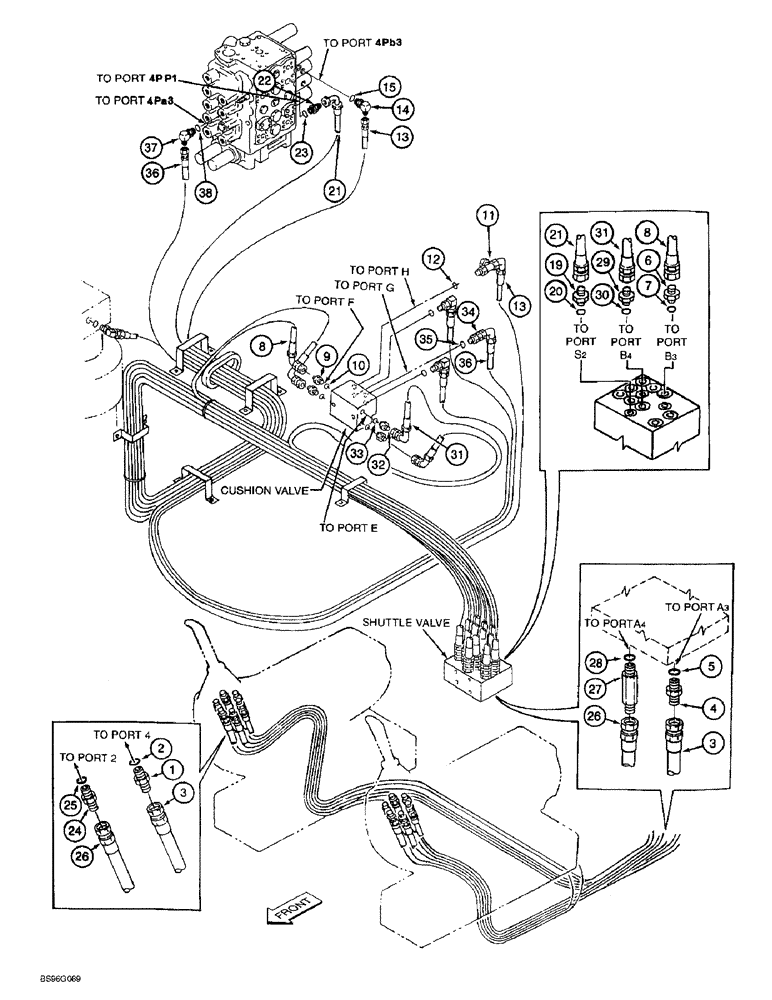

Запчасти Case 9060B (8-042) - BOOM CONTROL LINES, UP, DOWN & SIGNAL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
3
159211A1
HYDRAULIC HOSE
HOSE - 2000 mm (78-3/4 inch) long, boom-up control line, right-hand console to shuttle valve (right-hand manual control valve port \xd2 4\xd3 to main shuttle valve port \xd2 A3\xd3 )
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 5
1шт.
5
154475A1
O-RING
- adapter
1шт.
6
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 7
1шт.
7
154475A1
O-RING
- adapter
1шт.
8
159223A1
HOSE ASSY.
HOSE - 1100 mm (44-3/16 inch) long, boom-up control line (main shuttle valve port \xd2 B3\xd3 to cushion valve port \xd2 F\xd3 )
1шт.
9
165000A1
PLUG
ADAPTER - straight
1шт.
10
154486A1
O-RING
- adapter
1шт.
11
164107A1
TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT
- special, Includes: Ref. 12
1шт.
12
154475A1
O-RING
- tee
1шт.
13
161487A1
HOSE ASSY.
HOSE - 2800 mm (110-1/4 inch) long, boom-up control line (cushion valve port \xd2 H\xd3 to main control valve port \xd2 4Pb3\xd3 )
1шт.
14
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, Includes: Ref. 15
1шт.
15
154475A1
O-RING
- elbow
1шт.
19
152747A1
ADAPTER
- straight, boom activity signal line, Includes: Ref. 20
1шт.
20
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, boom activity signal line
1шт.
21
170680A1
HOSE ASSY.
HOSE - 4050 mm (159-1/2 inch) long, boom-hold signal line (main shuttle valve port \xd2 S2\xd3 to main control valve port \xd2 4P.P1\xd3 ), boom activity signal line
1шт.
22
152747A1
ADAPTER
- straight, boom activity signal line, Includes: Ref. 23
1шт.
23
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, boom activity signal line
1шт.
24
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, boom-down lines, Includes: Ref. 25
1шт.
25
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter, boom-down lines
1шт.
26
159212A1
HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm
- Boom-down control line (RH manual control valve port \xd2 2\xd3 to main shuttle valve port \xd2 A4\xd3 ) 9.50 mm ID x 2100.00 mm
1шт.
27
163421A1
STUD
ADAPTER - special, boom-down lines, Includes: Ref. 28
1шт.
28
154475A1
O-RING
- adapter, boom-down lines
1шт.
29
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, boom-down lines, Includes: Ref. 30
1шт.
30
154475A1
O-RING
- adapter, boom-down lines
1шт.
31
159224A1
HOSE ASSY.
HOSE - 900 mm (35-7/16 inch) long, boom-down control line (main shuttle valve port \xd2 B4\xd3 to cushion valve port \xd2 E\xd3 )
1шт.
32
165000A1
PLUG
ADAPTER - straight, boom-down lines
1шт.
33
154486A1
O-RING
- adapter, boom-down lines
1шт.
34
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, boom-down lines, Includes: Ref. 35
1шт.
35
154475A1
O-RING
- adapter, boom-down lines
1шт.
36
162524A1
HOSE
- 1500 mm (59 inch) long, boom-down control line (cushion valve port \xd2 G\xd3 to main control valve port \xd2 4Pa3\xd3 )
1шт.
37
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, boom-down lines, Includes: Ref. 38
1шт.
38
154475A1
O-RING
- elbow, boom-down lines
1шт.
Выбрано товаров: 35
