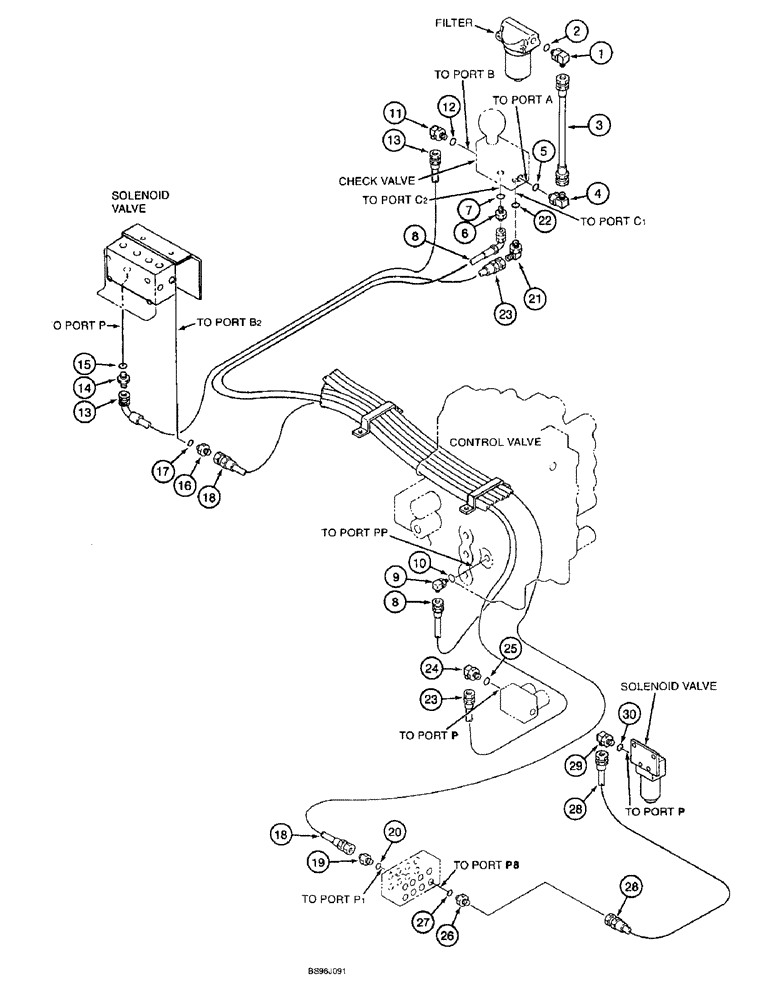

Запчасти Case 9060B (8-036) - PILOT PRESSURE DISTRIBUTION LINES (08) - HYDRAULICS

1

157935A1

ELBOW

- 90 degree, special, 1/2 x 3/8 inch, Includes: Ref. 2

1шт.

2

154487A1

O-RING

- elbow

1шт.

3

163108A1

HOSE,9.50 mm ID x 320.00 mm

pilot pressure supply line (filter discharge port to check valve port \xd2 A\xd3 ) 9.50 mm ID x 320.00 mm

1шт.

4

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- elbow

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159433A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long, pilot pressure supply line (checkvalve port \xd2 C2\xd3 to main control valve port \xd2 PP\xd3 )

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- elbow

1шт.

13

159228A1

HOSE ASSY.

HOSE - 1750 mm (68-7/8 inch) long, check valve port \xd2 B to eight-spool solenoid valve port \xd2 P\xd3 , models without counterweight removal, see Figure 8-200 for models with counterweight removal

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter

1шт.

18

159063A1

HOSE

- 3800 mm (149-5/8 inch) long, pilot pressure supply line (main solenoid valve port \xd2 B2\xd3 to pressure and return manifold port \xd2 P1\xd3 )

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154475A1

O-RING

- adapter

1шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

157840A1

HOSE ASSY.

HOSE - 4250 mm (167-1/3 inch) long, pilot pressure supply line (check valve port \xd2 C1\xd3 to swing brake release valve port \xd2 P\xd3 )

1шт.

24

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

28

152514A1

HOSE,63mm ID x 1000mm L

- Pilot pressure supply line (Pressure and return manifold port \xd2 P8\xd3 to single-spool solenoid valve port \xd2 P\xd3 ) 63.00 mm ID x 1000.00 mm

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
