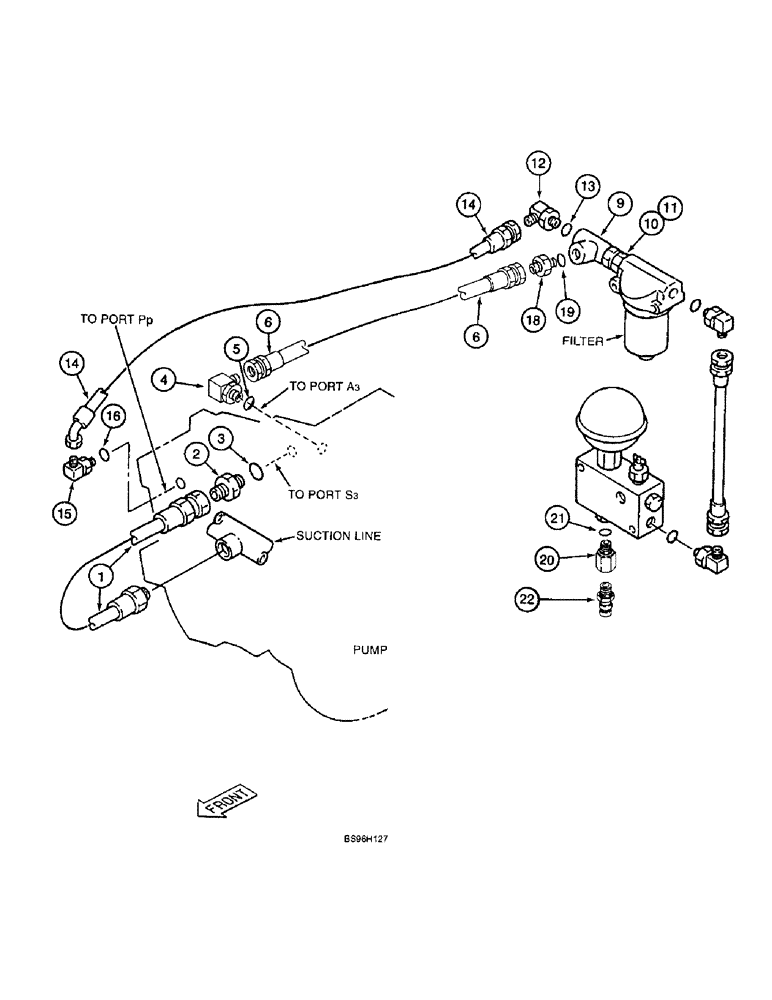

Запчасти Case 9060B (8-034) - PUMP PILOT SUPPLY LINES (08) - HYDRAULICS

1

162560A1

HYDRAULIC HOSE,19.00 mm ID x 880.00 mm

- Gear pump supply line (From port in suction line to pump port \xd2 S3\xd3 ) 19.00 mm ID x 880.00 mm

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 3

1шт.

3

154503A1

O-RING

- adapter

1шт.

4

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, used with 170682A1 hose, ref 6 below, Includes: Ref. 5

1шт.

5

154487A1

O-RING

- adapter

1шт.

6

170682A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long, pilot pressure supply line (pump port \xd2 A3\xd3 to tee in filter inlet port)

1шт.

9

162566A1

TEE

- special

1шт.

10

162569A1

ADAPTER

- special, Includes: Ref. 11

1шт.

11

154487A1

O-RING

- adapter (not shown)

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

14

156735A1

HOSE,6.3 mm ID x 350.00 mm

- 350 mm (13-3/4 inch) long, pilot pressure signal line (tee in filter inlet port to pump port \xd2 Pp\xd3 )

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight

1шт.

19

154487A1

O-RING

- adapter

1шт.

20

151136A1

BUSHING

ADAPTER - straight, special, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

22

S243647

COUPLING

ASSEMBLY - quick disconnect

1шт.
