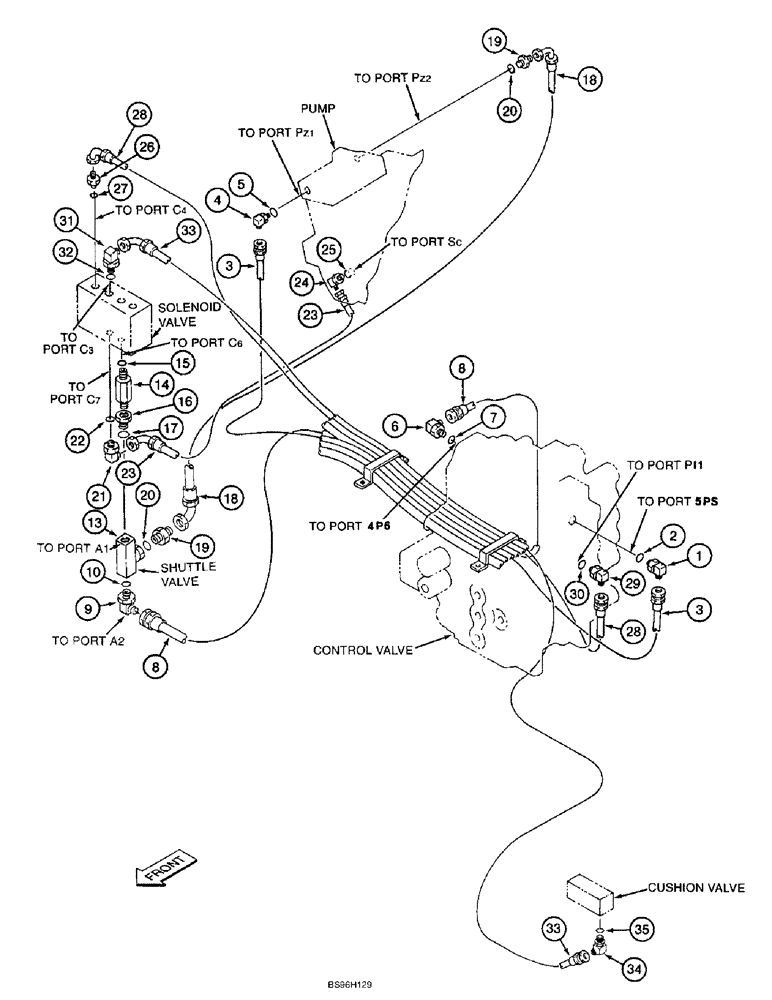

Запчасти Case 9060B (8-032) - CONTROL SIGNAL LINES, PUMP REGULATOR LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

164232A1

HOSE ASSY.

HOSE - 3150 mm (124 inch) long, pump regulator signal line (main control valve port \xd2 5Ps\xd3 to pump port \xd2 Pz1\xd3 )

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

159004A1

HOSE

- 2150 mm (84-5/8 inch) long, pump regulator signal line (main control valve port \xd2 4P6\xd3 to shuttle valve port \xd2 A2\xd3 )

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

14

162554A1

FITTING

ADAPTER - special, if used, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, if used

1шт.

16

162654A1

HYD CONNECTOR

ADAPTER - straight, if used, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

164236A1

HOSE ASSY.

HOSE - 1000 mm (39-3/8 inch) long, pump regulator signal line (shuttle valve port \xd2 B\xd3 to pump port \xd2 Pz2\xd3 )

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

2шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

164227A1

HOSE ASSY.

HOSE - 650 mm (25-5/8 inch) long, maximum flow control signal (main solenoid valve port \xd2 C7\xd3 to pump port \xd2 Sc\xd3 )

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, two-stage relief lines, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, two-stage relief lines

1шт.

28

162555A1

HOSE

- 1800 mm (70-7/8 inch) long, two-stage relief line (main solenoid valve port \xd2 C4\xd3 to main control valve port \xd2 Pl1\xd3 )

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, two-stage relief lines, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, two-stage relief lines

1шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, cushion valve control lines, Includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, cushion valve control lines

1шт.

33

159711A1

HOSE,3250.00 mm

main solenoid valve port \xd2 C3\xd3 to cushion valve port \xd2 S\xd3 , models without counterweight removal, control lines 3250.00 mm

1шт.

33

162193A1

HOSE ASSY.

HOSE - 2900 mm (114-3/16 inch) long, main solenoid valve port \xd2 C3\xd3 to cushion valve port \xd2 S\xd3 , models with counterweight removal, control lines

1шт.

34

150933A1

ELBOW

- 45 degree, cushion valve control lines, Includes: Ref. 35

1шт.

35

154475A1

O-RING

- elbow, cushion valve control lines

1шт.
