(8-030) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, CONTINUED

Запчасти Case 9060B (8-030) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, CONTINUED (08) - HYDRAULICS

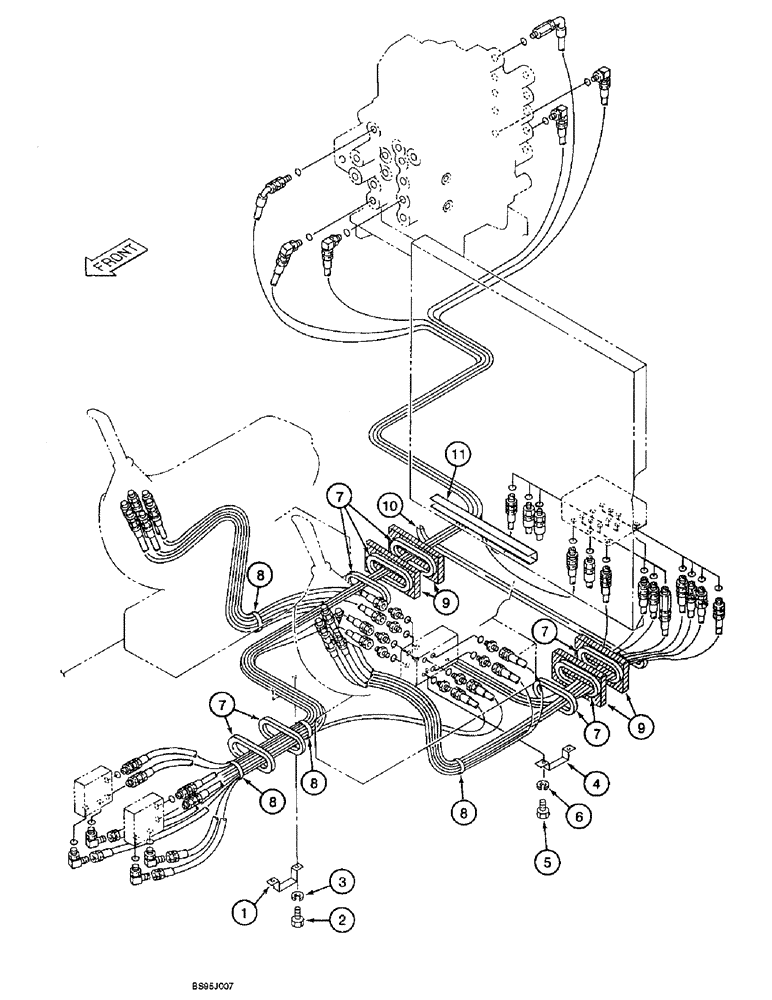

Схема запчастей Case 9060B - (8-030) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, CONTINUED (08) - HYDRAULICS
3
7
7
8
10
2
8
11
8
9
8
5
7
1
7
4
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159025A1

CLAMP

- support

1шт.

2

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

2шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

4

159250A1

CLAMP

- support

1шт.

5

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

2шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

7

159251A1

GROMMET

- rubber

8шт.

8

170308A1

BAND

STRAP - tie

1шт.

9

162652A1

SEAL

CUSHION - seal

4шт.

10

163419A1

SEAL

GROMMET - rubber

1шт.

11

163733A1

SEAL PROTECTION

CUSHION - rubber

1шт.
