(8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS

Запчасти Case 9060B (8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS

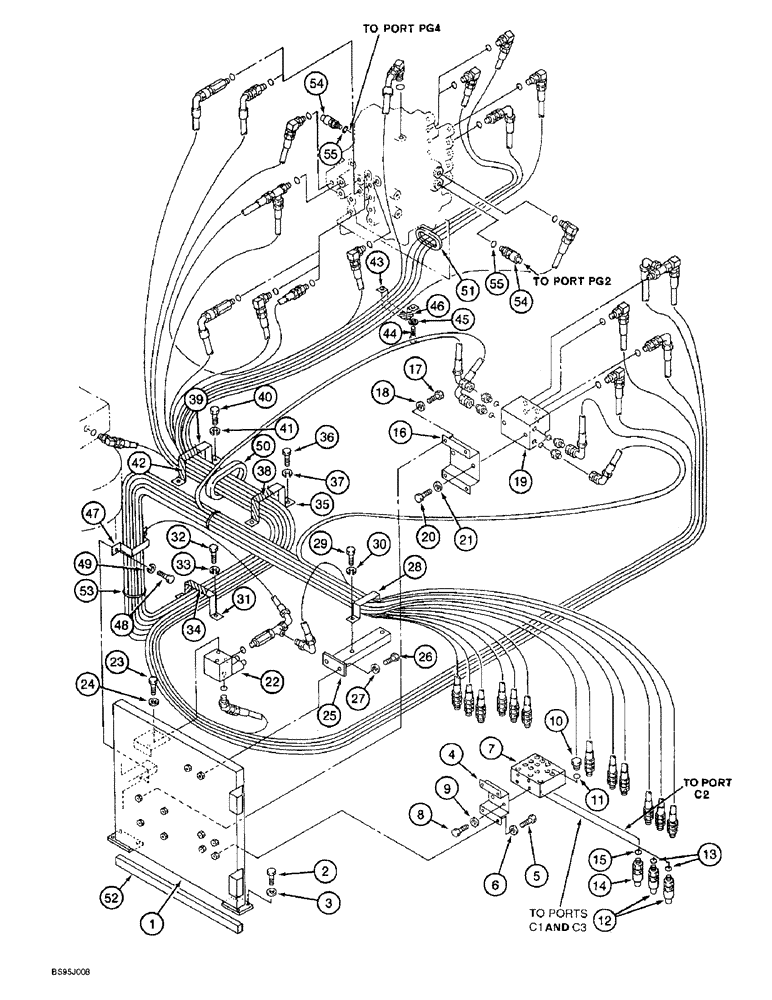

Схема запчастей Case 9060B - (8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS
54
15
55
16
29
35
36
41
25
42
19
49
33
30
53
34
12
50
37
44
39
1
5
9
43
51
45
52
20
27
8
31
18
23
14
7
26
6
10
54
2
17
38
13
40
22
24
4
46
28
21
48
3
47
55
11
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

170330A1

BRACKET

- component mounting

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

6шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

6шт.

4

162535A1

BRACKET

- mounting

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

6

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

7

162077A1

VALVE

- shuttle

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

9

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

10

159002A1

PLUG

- port, Includes: Ref. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

12

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, pressure switch (in shuttle valve ports \xd2 C1\xd3 and \xd2 C3\xd3 ), Includes: Ref. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

159026A1

SOCKET

FITTING - hydraulic, special, pressure switch (in shuttle valve port \xd2 C2\xd3 ), Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting

1шт.

16

162536A1

BRACKET

- mounting

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

18

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

19

164108A1

VALVE

ASSEMBLY - cushion, for standard models without load hold option, parts list Figure 8-194, replaced by 164931A1

1шт.

19

164931A1

VALVE

ASSEMBLY - cushion, for standard models without load holding option, parts list Figure 8-194, was 164108A1

1шт.

19

164998A1

VALVE

ASSEMBLY - cushion, for models with load holding option, parts list Figure 8-195A

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

21

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

22

163731A1

VALVE

ASSEMBLY - swing brake release, parts list Figure 8-204

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

24

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

25

159248A1

BRACKET

- support

1шт.

26

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

27

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

28

159038A1

CLAMP

- support

1шт.

29

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

31

159040A1

CLAMP

- support

1шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

34

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

35

159040A1

CLAMP

- support

1шт.

36

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

38

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

39

159040A1

CLAMP

- support

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

41

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

42

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

43

159040A1

CLAMP

- support

1шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

45

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

46

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

47

159025A1

CLAMP

- support

1шт.

48

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

49

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

50

162522A1

RUBBER BLOCK

GROMMET - rubber

1шт.

51

162533A1

RUBBER BLOCK

GROMMET - rubber

1шт.

52

163342A1

SEAL

CUSHION - rubber

1шт.

53

170308A1

BAND

STRAP - tie

1шт.

54

159026A1

SOCKET

FITTING - hydraulic, special (in main control valve ports \xd2 PG2\xd3 and \xd2 PG4\xd3 )

2шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting

2шт.

42

159028A1

RUBBER BLOCK

CUSHION - support

1шт.
