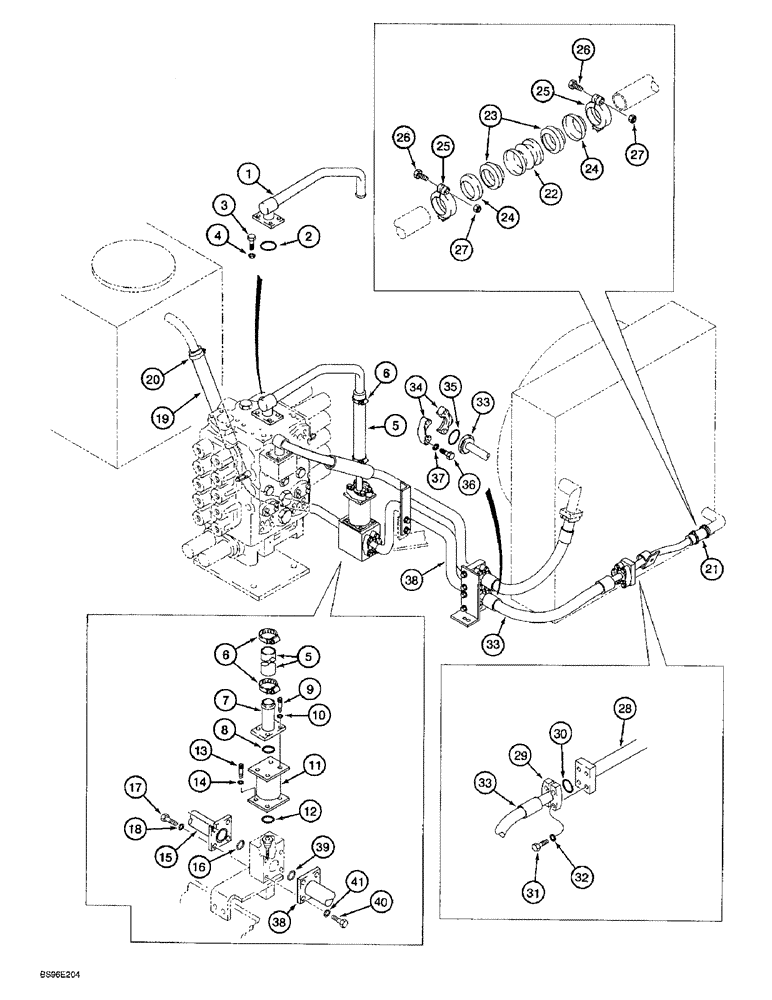

Запчасти Case 9060B (8-018) - OIL COOLER RECIRCULATING AND RETURN LINES (08) - HYDRAULICS

1

163794A1

TUBE

- control valve recirculating (control valve port \xd2 5P\xd3 to recirculating hose)

1шт.

2

154667A1

O-RING

- tube

1шт.

3

862-14035

HEX SOC SCREW,M14 x 35mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 35 mm, class 12.9

4шт.

4

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

5

163415A1

HYDRAULIC HOSE,48.50 mm ID x 390.00 mm

- Recirculating (From control valve recirculating tube to manifold tube) 48.50 mm ID x 390.00 mm

1шт.

6

170318A1

CLAMP

- adjustable

4шт.

7

163799A1

TUBE

- manifold

1шт.

8

154679A1

O-RING

- tube

1шт.

9

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

10

112312A1

LOCK WASHER

- lock, 12 mm

4шт.

11

163797A1

JUNCTION BOX

VALVE - check

1шт.

12

154639A1

O-RING

- check valve

1шт.

13

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

14

112312A1

LOCK WASHER

- lock, 12 mm

4шт.

15

163800A1

TUBE

- reservoir return, for models without load hold

1шт.

15

164977A1

HYD TUBE

TUBE - hydraulic return, for models with load hold, see figure 8-180 for related parts

1шт.

16

154667A1

O-RING

- tube

1шт.

17

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 35 mm, class 10.9

4шт.

18

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

19

163739A1

HYDRAULIC HOSE

460.00 mm Reservoir Return, From Reservoir Return, Serial Range: Tube-Reservoir

1шт.

20

170285A1

CLAMP

- adjustable

4шт.

21

162349A1

TUBE

COUPLING ASSEMBLY - special, Includes: Ref. 22 - 27

1шт.

22

162350A1

SLEEVE

- special

1шт.

23

162353A1

GASKET

GASKET - coupling

2шт.

24

162352A1

RETAINER

- coupling gasket

2шт.

25

162351A1

TUBE

CLAMP - coupling

2шт.

26

159835A1

BOLT

BOLT - special

2шт.

27

159836A1

SPECIAL NUT

- special

2шт.

28

162343A1

TUBE ASSY.,41.6 mm ID, 48.6 mm OD

TUBE - cooler return, at coupling

1шт.

29

A14157

FLANGE

CLAMP - split flange

2шт.

30

170317A1

O-RING

- hose

1шт.

31

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

32

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

33

162339A1

HYDRAULIC HOSE,38.10 mm ID x 780.00 mm

- Intermediate return (From cooler return hose to cooler return tube) 38.10 mm ID x 780.00 mm

1шт.

34

A14157

FLANGE

CLAMP - split flange

2шт.

35

170317A1

O-RING

- hose

1шт.

36

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

37

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

38

163795A1

TUBE

- cooler return (from intermediate return, Serial Range: hose-reservoir)

1шт.

39

154667A1

O-RING

- tube

1шт.

40

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 35 mm, class 10.9

4шт.

41

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.
