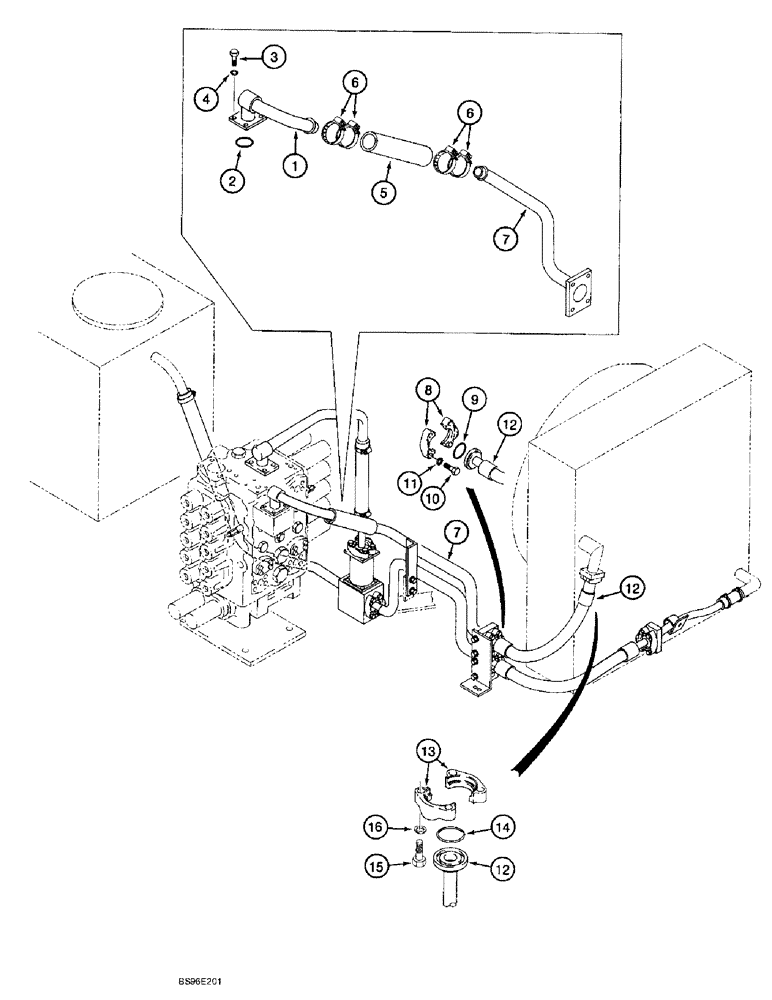

Запчасти Case 9060B (8-016) - OIL COOLER SUPPLY LINE (08) - HYDRAULICS

1

163792A1

TUBE

- control valve return, at control valve

1шт.

2

154667A1

O-RING

- tube

1шт.

3

862-14035

HEX SOC SCREW,M14 x 35mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 35 mm, class 12.9

4шт.

4

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

5

163415A1

HYDRAULIC HOSE,48.50 mm ID x 390.00 mm

- Intermediate (From cooler supply tube to intermediate tube) 48.50 mm ID x 390.00 mm

1шт.

6

170318A1

CLAMP

- adjustable

4шт.

7

163798A1

TUBE

- intermediate (from intermediate hose to cooler supply hose)

1шт.

8

A14157

FLANGE

CLAMP - split flange

2шт.

9

170317A1

O-RING

- tube

1шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

12

162339A1

HYDRAULIC HOSE,38.10 mm ID x 780.00 mm

- Cooler supply (From intermediate tube to cooler) 38.10 mm ID x 780.00 mm

1шт.

13

A14157

FLANGE

CLAMP - split flange

2шт.

14

170317A1

O-RING

- hose

1шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.
