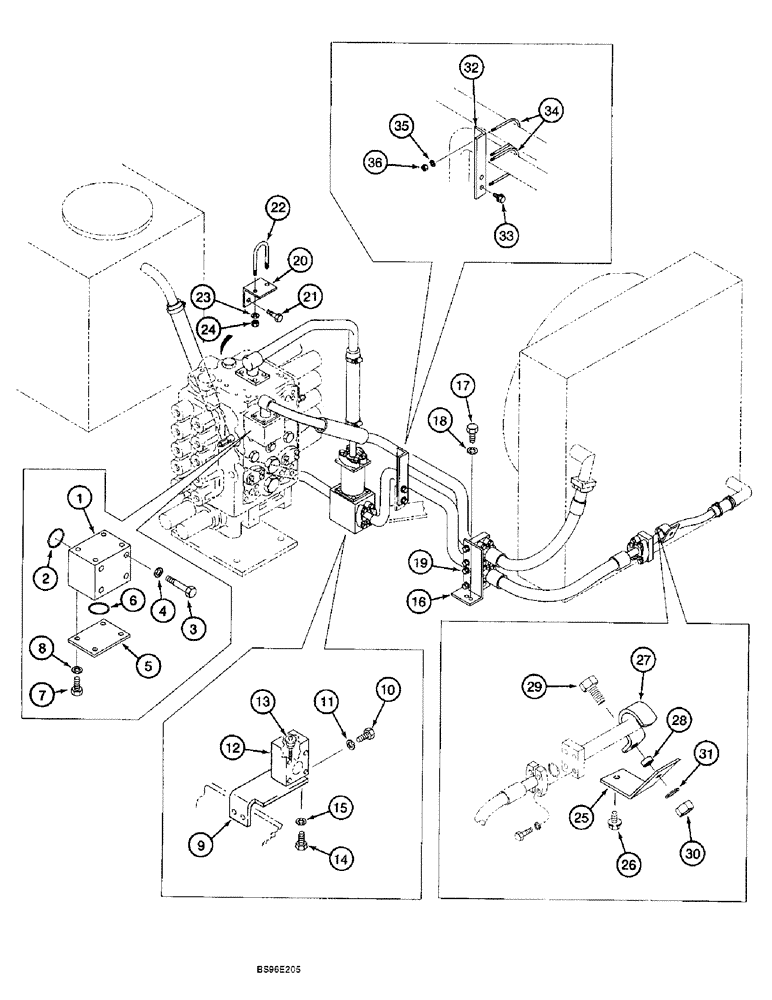

Запчасти Case 9060B (8-014) - COOLING SYSTEM COMPONENTS, AND HOSE AND TUBE SUPPORTS (08) - HYDRAULICS

1

163747A1

MANIFOLD

- cooling system supply

1шт.

2

154667A1

O-RING

- manifold

1шт.

3

163746A1

BOLT

BOLT - special

4шт.

4

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

5

163748A1

FLANGE

PLATE - manifold sealing

1шт.

6

153626A1

O-RING

- plate

1шт.

7

862-14035

HEX SOC SCREW,M14 x 35mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 35 mm, class 12.9

4шт.

8

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

9

163793A1

BRACKET

- mounting

1шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

2шт.

12

163796A1

MANIFOLD

- cooling system return

1шт.

13

163791A1

CHECK VALVE

VALVE - check

1шт.

14

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

4шт.

15

150811A1

WASHER

- flat, special, 12 mm

4шт.

16

162345A1

BRACKET

- support

1шт.

17

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

18

150811A1

WASHER

- flat, special, 12 mm

2шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

20

170248A1

BRACKET

- mounting

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

22

152070A1

U-BOLT,M10 x 74mm W x 86mm L

- tube support

1шт.

23

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

25

170247A1

BRACKET

- mounting

1шт.

26

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

27

163754A1

COLLAR

CLAMP - tube

1шт.

28

163755A1

SPACER

- clamp

1шт.

29

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10-1.5 x 50 mm, class 10.9

1шт.

31

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

1шт.

32

162341A1

BRACKET

- support

1шт.

33

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

34

152067A1

U-BOLT,M10 x 62mm W x 74mm L

- tube support

2шт.

35

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
