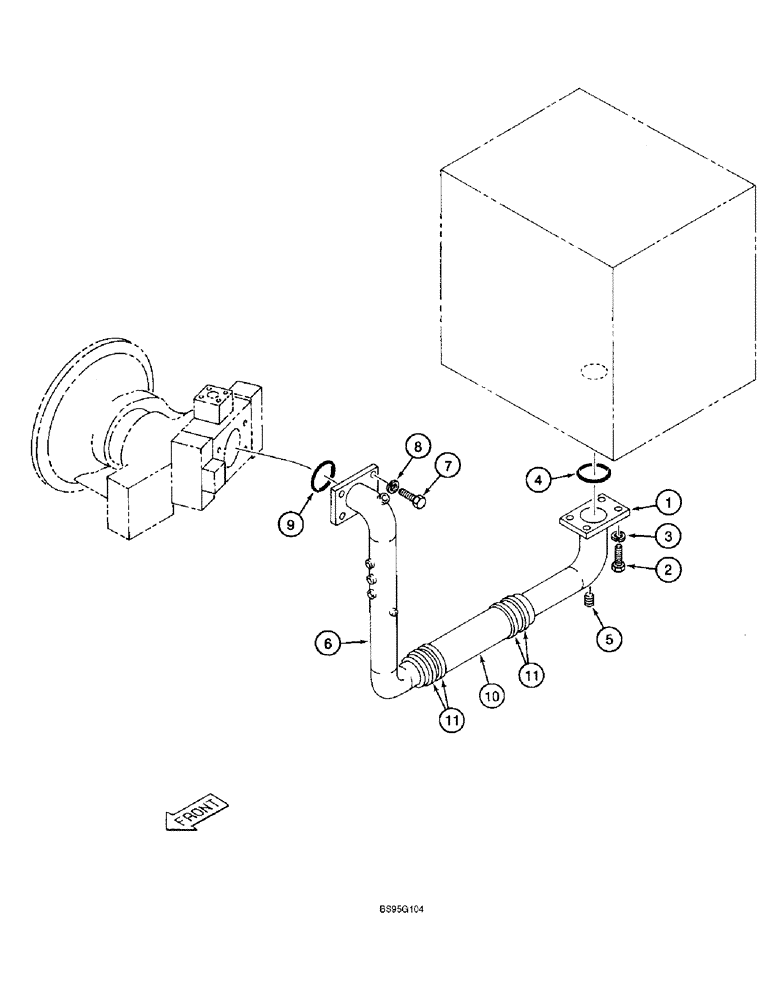

Запчасти Case 9060B (8-010) - RESERVOIR TO PUMP SUCTION LINE (08) - HYDRAULICS

1

170276A1

TUBE,88.9 mm OD

- reservoir end of suction line

1шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

3

150811A1

WASHER

- flat, special, 12 mm

4шт.

4

154719A1

O-RING

-, Serial Range: tube-reservoir

1шт.

5

152924A1

PLUG

- port

1шт.

6

170647A1

TUBE,88.9 mm OD

- pump end of suction line

1шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

9

154787A1

O-RING

- tube

1шт.

10

163728A1

HYDRAULIC HOSE

360.00 mm, Suction Line

1шт.

11

170277A1

CLAMP

- hose

4шт.
