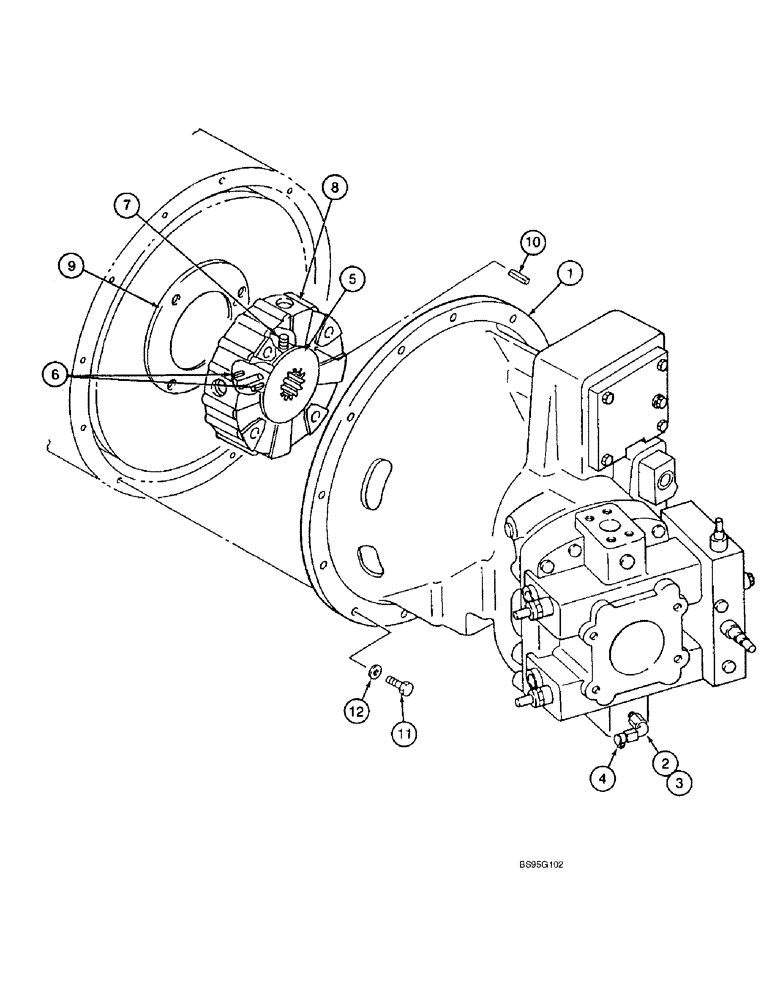

Запчасти Case 9060B (8-008) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

163568A1

PUMP

ASSEMBLY - hydraulic, parts list Figures 8-88 - 8-102

1шт.

2

158665A1

ELBOW

- 90 degree, Includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow (not shown)

1шт.

4

170186A1

PLUG

- oil

2шт.

5

153029A1

HUB

- coupling

1шт.

6

738-1816

LOCK PIN,M8 x 16, Slotted

PIN - roll, 8 x 16 mm

6шт.

7

877-52030

SET SCREW,Hex Skt, M20 x 30mm, Dog Pt

SCREW - set, hex socket, 20 - 2.5 x 30 mm, dog point

2шт.

8

153028A1

COUPLING

ASSEMBLY - pump

1шт.

9

153335A1

FLANGE

PLATE - coupling

1шт.

10

738-1816

LOCK PIN,M8 x 16, Slotted

PIN - roll, 8 x 16 mm

6шт.

11

153268A1

BOLT,Spcl, Hex, M10 x 40mm

BOLT - hex, special

12шт.

12

150811A1

WASHER

- flat, special, 12 mm

12шт.
