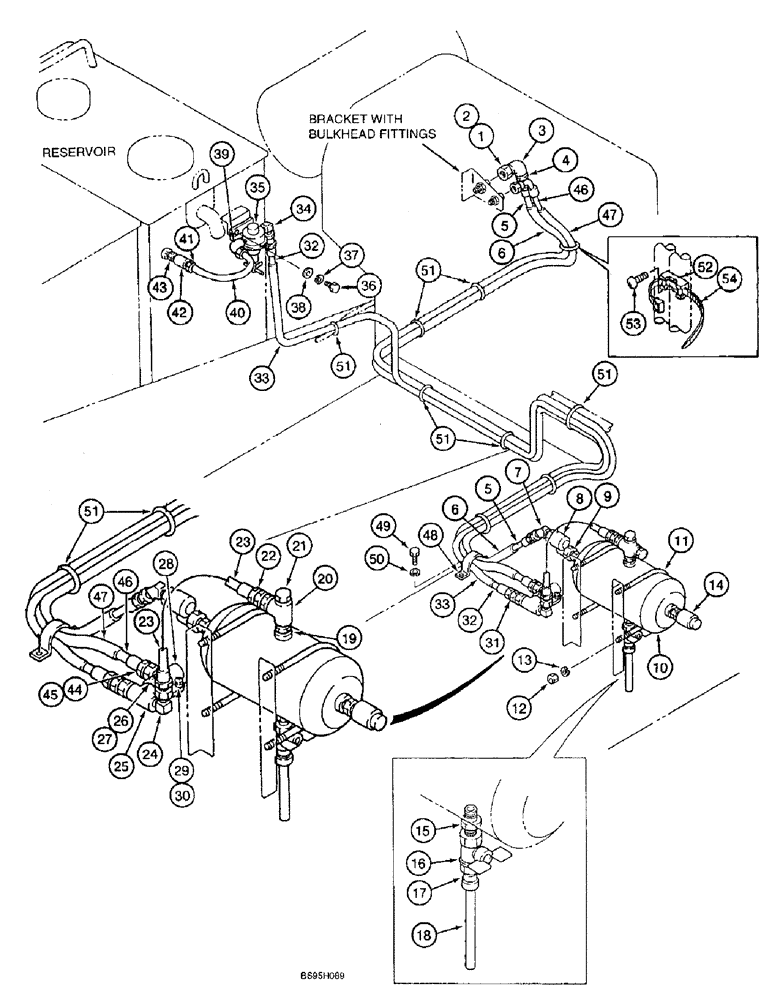

Запчасти Case 9060B (8-004) - RESERVOIR PRESSURIZATION SYSTEM (08) - HYDRAULICS

1

153065A1

SOCKET

ADAPTER - special

1шт.

2

152510A1

GASKET

- adapter

1шт.

3

162633A1

ELBOW

- 90 degree

1шт.

4

153597A1

ADAPTER

- straight

1шт.

5

163740A1

AIR HOSE

3600 mm Air Tank Supply Line

1шт.

6

170700A1

LOOM

SLEEVE - corrugated, 3400 mm (133-7/8 inch) long

1шт.

7

153488A1

ADAPTER

ELBOW - 45 degree

1шт.

8

153057A1

VALVE

- check, component parts not serviced separately

1шт.

9

150848A1

NIPPLE, LUBE

ADAPTER - straight

1шт.

10

153058A1

AIR TANK

TANK - air

1шт.

11

150119A1

U-BOLT,M8 x 170mm W x 105mm L

- tank mounting

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

153060A1

VALVE

- relief, safety

1шт.

15

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

16

158923A1

DRAIN VALVE

VALVE - shutoff

1шт.

17

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight, component parts not serviced separately

1шт.

18

170698A1

PLASTIC-RUBBER TUBE,9.52 mm OD, 100 mm Length

TUBE - nylon, drain

1шт.

19

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

20

152135A1

TEE

- hydraulic

1шт.

21

150990A1

PLUG

- tee port

1шт.

22

152748A1

ADAPTER

- straight

1шт.

23

153293A1

HOSE ASSY.

HOSE - 380 mm (15 inch) long, pressurizing supply

1шт.

24

152749A1

ADAPTER

ELBOW - 90 degree

1шт.

25

152135A1

TEE

- hydraulic

1шт.

26

153065A1

SOCKET

ADAPTER - special

1шт.

27

152510A1

GASKET

- adapter

1шт.

28

153063A1

GOVERNOR

- air line

1шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

31

152748A1

ADAPTER

- straight

1шт.

32

152771A1

HOSE ASSY.

HOSE - 3000 mm (118-1/8 inch) long, reservoir pressurizing line

1шт.

33

150782A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 2500 mm (98-7/16 inch) long

1шт.

34

152749A1

ADAPTER

ELBOW - 90 degree

1шт.

35

152845A1

VALVE

ASSEMBLY - pressure reducing, parts list Figure 8-138

1шт.

36

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

29

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

37

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

49

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

38

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

2шт.

39

152948A1

ELBOW

ASSEMBLY - 90 degree

1шт.

40

170699A1

PLASTIC-RUBBER TUBE,9.52 mm OD, 460 mm Length

TUBE - nylon, 9.5 (3/8) ID x 460 mm (18-1/8 inch) long, reservoir pressurizing line

1шт.

41

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight

1шт.

42

150914A1

SOCKET

FITTING - straight

1шт.

43

152460A1

VALVE

- check

1шт.

44

153065A1

SOCKET

ADAPTER - special

1шт.

45

152510A1

GASKET

- adapter

1шт.

46

162636A1

HYDRAULIC HOSE,3500.00 mm

- Compressor unloading signal line 3500.00 mm

1шт.

47

170701A1

LOOM

SLEEVE - corrugated, 3300 mm (130 inch) long

1шт.

48

163259A1

CLAMP

- support

1шт.

50

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

51

170308A1

BAND

STRAP - tie

1шт.

52

150860A1

COLLAR

BRACKET - support

1шт.

53

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

54

170308A1

BAND

STRAP - tie

1шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
