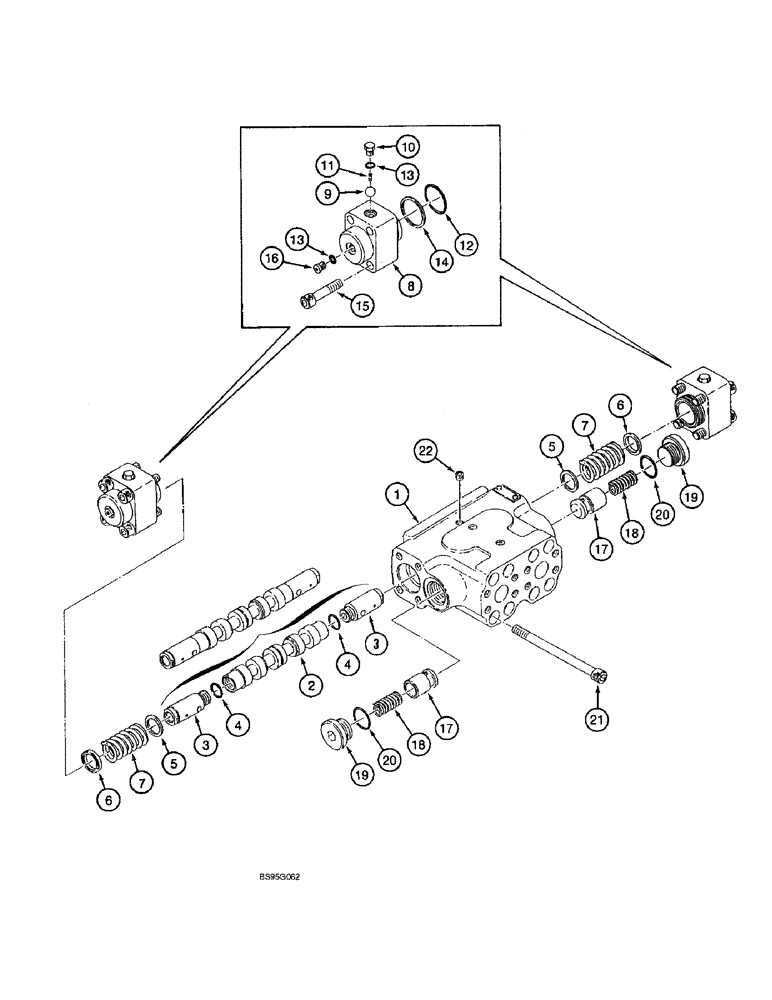

Запчасти Case 9060B (6-20) - COUNTERBALANCE VALVE (06) - POWER TRAIN

164162A1

VALVE

ASSEMBLY - counterbalance, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - counterbalance valve

1шт.

2

164034A1

PLUNGER

- basic, Includes: Ref. 2 - 4

1шт.

3

163950A1

PLUG

END - plunger

2шт.

4

154487A1

O-RING

- plunger

2шт.

5

156109A1

SPRING SEAT

SEAT - spring

2шт.

6

156116A1

SPRING SEAT

SEAT - spring

2шт.

7

156114A1

SPRING

- spool return

2шт.

164035A1

CAP

ASSEMBLY - valve, Includes: Ref. 8 - 16

2шт.

8

164036A1

CAP

- basic

1шт.

9

155976A1

BALL

- steel

1шт.

10

155491A1

PLUG

- valve cap

1шт.

11

156106A1

SPRING

- ball return

1шт.

12

154569A1

O-RING

- plug

1шт.

Part of Kit P/N 164057A1

1шт.

13

154455A1

O-RING

- cap assembly

2шт.

Part of Kit P/N 164057A1

1шт.

14

154032A1

BACK-UP RING

RING - backup

2шт.

Part of Kit P/N 164057A1

1шт.

15

160292A1

BOLT,M12 x 1.75 x 60mm

BOLT - special, 12 - 1.75 x 60 mm

4шт.

16

164024A1

PLUG

- socket head

1шт.

17

155963A1

VALVE

- check

2шт.

18

156115A1

SPRING

- valve return

2шт.

19

155508A1

PLUG

- port

2шт.

20

154523A1

O-RING

- port plug

2шт.

Part of Kit P/N 164057A1

1шт.

21

164088A1

BOLT

BOLT - Allen head, special

8шт.

22

163367A1

PLUG

- special

1шт.

164057A1

SET OF PARTS

KIT - repair parts, Includes: Ref. 12 - 14 & 20

1шт.
