Запчасти Case 9060B (6-18) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

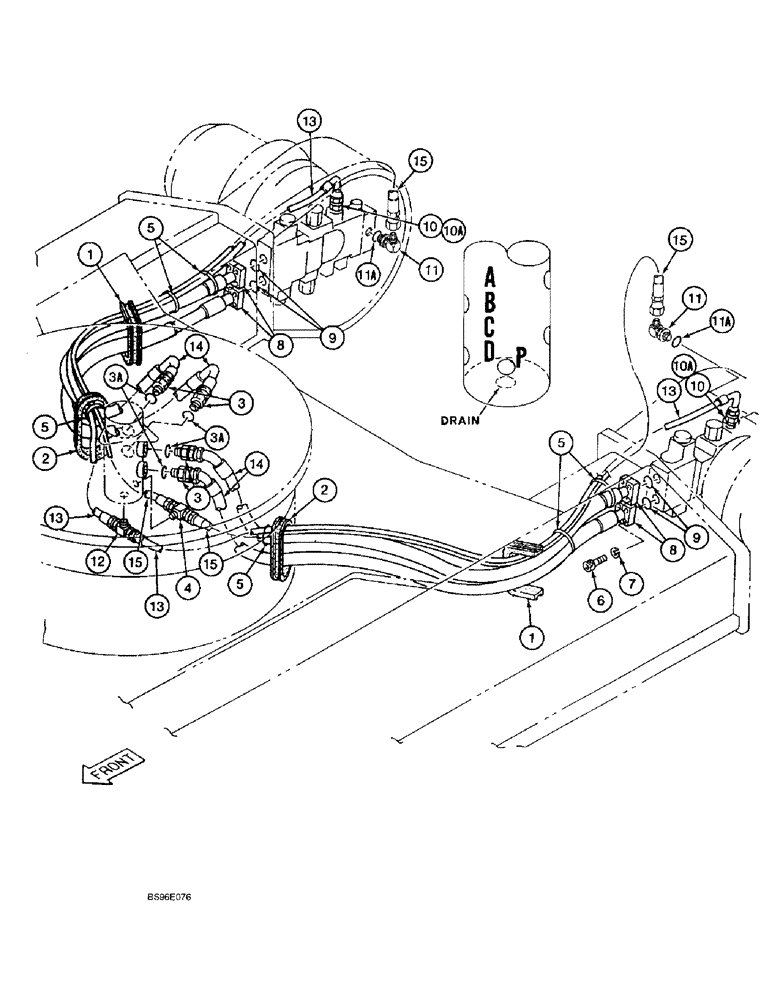

Схема запчастей Case 9060B - (6-18) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN
1
15
15
8
11
11a
11a
10
3a
8
13
10
2
12
3
5
15
15
11
5
14
14
13
4
3a
13
7
10a
1
9
5
13
3
10a
5
2
9
6

Артикул

Название

Примечание

Количество

1

159658A1

REDUCER

GUARD - hose (rubber cushion)

2шт.

2

158813A1

GROMMET

CUSHION - rubber

2шт.

3

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, in swivel ports A, B, C and D, Includes: Ref. 3A

4шт.

3a

154523A1

O-RING

- adapter

1шт.

4

162276A1

TEE

- special, at swivel port P

1шт.

5

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

6

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 40 mm, class 12.9

16шт.

7

112312A1

LOCK WASHER

- lock, 12 mm

16шт.

8

150561A1

FLANGE

- split, drive motor ports P1 and P2

8шт.

9

162246A1

O-RING

- split flange to track drive motor

4шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, drive motor drain port, Includes: Ref. 10A

2шт.

10a

154487A1

O-RING

- adapter

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, drive motor pilot port, Includes: Ref. 11A

2шт.

11a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

12

152195A1

TEE

- special, bottom swivel port

1шт.

13

152020A1

HOSE ASSY.

HOSE - 2800 mm (110-1/4 inch) long, bottom swivel port to drive motor drain port

2шт.

14

151690A1

HOSE ASSY.

HOSE - 2390 mm (94 inch) long, swivel port A to right-hand drive motor port P2

1шт.

14

151690A1

HOSE ASSY.

HOSE - 2390 mm (94 inch) long, swivel port C to right-hand drive motor port P1

1шт.

14

151690A1

HOSE ASSY.

HOSE - 2390 mm (94 inch) long, swivel port B to left-hand drive motor port P1

1шт.

14

151690A1

HOSE ASSY.

HOSE - 2390 mm (94 inch) long, swivel port D to left-hand drive motor port P2

1шт.

15

157790A1

HOSE,6.3mm ID x 3000mm L

- 3000 mm (118-1/8 inch) long, pilot, swivel port P to drive motor pilot port, replaces 152023A1 hose

2шт.

Выбрано товаров: 21
