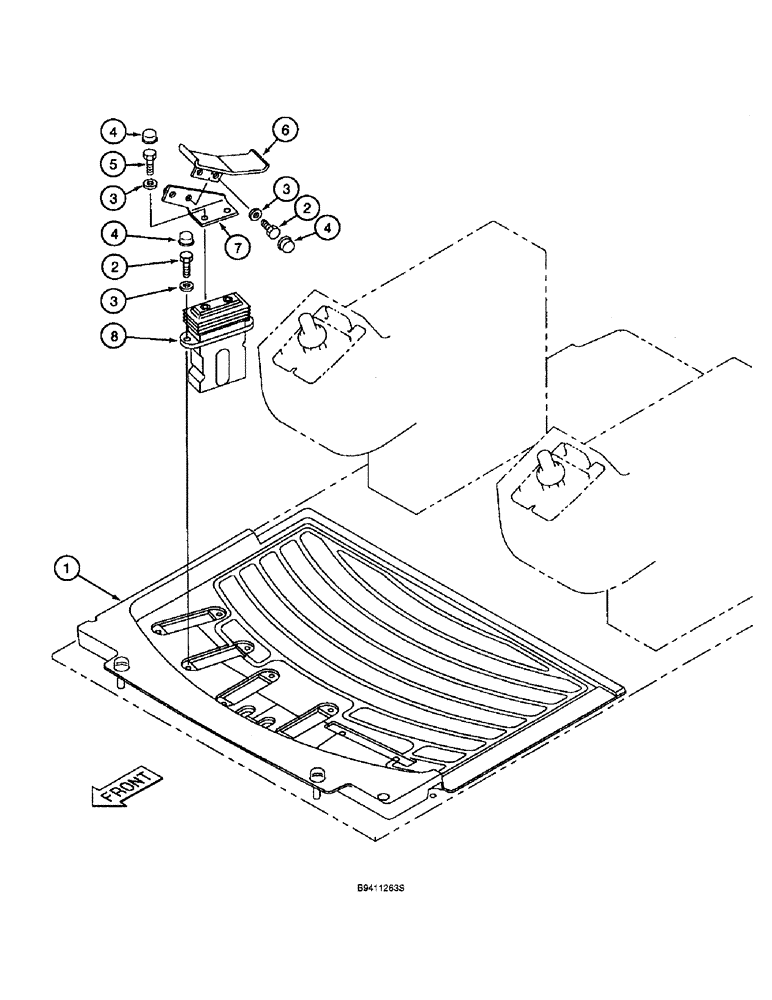

Запчасти Case 9060B (6-16) - AUXILIARY HYDRAULIC CONTROL, PEDAL AND FLOORMAT (06) - POWER TRAIN

1

162362A1

FLOOR MAT

MAT - floor, machines with single or double pedal travel and auxiliary equipment control pedal

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150604A1

WASHER

- special

6шт.

4

159488A1

CAP

- special

6шт.

5

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

6

162963A1

PEDAL

- auxiliary hydraulic control

1шт.

7

161843A1

BRACKET

- pedal mounting

1шт.

8

162079A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, auxiliary hydraulic equipment, parts list Figure 8-106

1шт.
