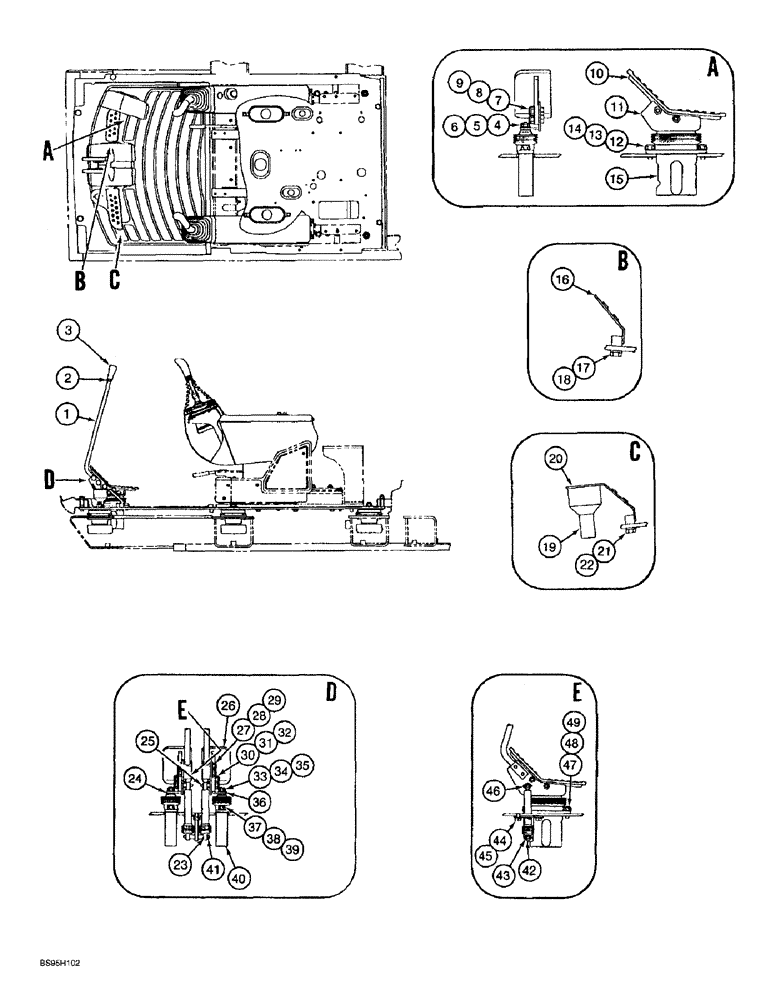

Запчасти Case 9060B (6-14) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS (06) - POWER TRAIN

1

159261A1

LEVER

- control

2шт.

2

150373A1

NUT

- hex, 12 mm - 1.25, class 12.9

2шт.

3

159262A1

KNOB

- control lever

2шт.

4

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

5

159488A1

CAP

- special

2шт.

6

150604A1

WASHER

- special

2шт.

7

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

2шт.

8

159488A1

CAP

- special

2шт.

9

150604A1

WASHER

- special

2шт.

10

159030A1

PEDAL

- foot control

1шт.

11

161843A1

BRACKET

- pedal mounting

1шт.

12

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

2шт.

13

159488A1

CAP

- special

2шт.

14

150604A1

WASHER

- special

2шт.

15

162079A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, parts list Figure 8-106

1шт.

16

159265A1

SUPPORT

FOOTREST - right-hand

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

18

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

19

159267A1

COVER

- travel speed selector switch

1шт.

20

159266A1

SUPPORT

FOOTREST - left-hand

1шт.

21

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

22

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

23

159264A1

SHOCK ABSORBER

DAMPER - valve, component parts are not serviceable

2шт.

24

159258A1

SUPPORT

BRACKET - pedal and valve mounting, right-hand

1шт.

26

159030A1

PEDAL

- foot control

2шт.

27

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT - hex, 10 - 1.5 x 30 mm, class 10.9

4шт.

28

159488A1

CAP

- special

4шт.

29

150604A1

WASHER

- special

4шт.

30

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

4шт.

31

159488A1

CAP

- special

4шт.

32

150604A1

WASHER

- special

4шт.

33

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

34

159488A1

CAP

- special

4шт.

35

150604A1

WASHER

- special

4шт.

36

159259A1

SUPPORT

BRACKET - pedal and valve mounting, left-hand

1шт.

37

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

2шт.

38

159488A1

CAP

- special

2шт.

39

150604A1

WASHER

- special

2шт.

40

162079A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, parts list Figure 8-106

2шт.

42

159263A1

SUPPORT

BRACKET - damper mounting

1шт.

43

153077A1

COTTER PIN

CLIP - hair pin type

4шт.

44

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

3шт.

45

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

46

153077A1

COTTER PIN

CLIP - hair pin type

1шт.

47

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

2шт.

48

159488A1

CAP

- special

2шт.

49

150604A1

WASHER

- special

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.
