Запчасти Case 9060B (6-10) - TRACK DRIVE MOTOR - CONTINUED, REAR COVER AND VALVES (06) - POWER TRAIN

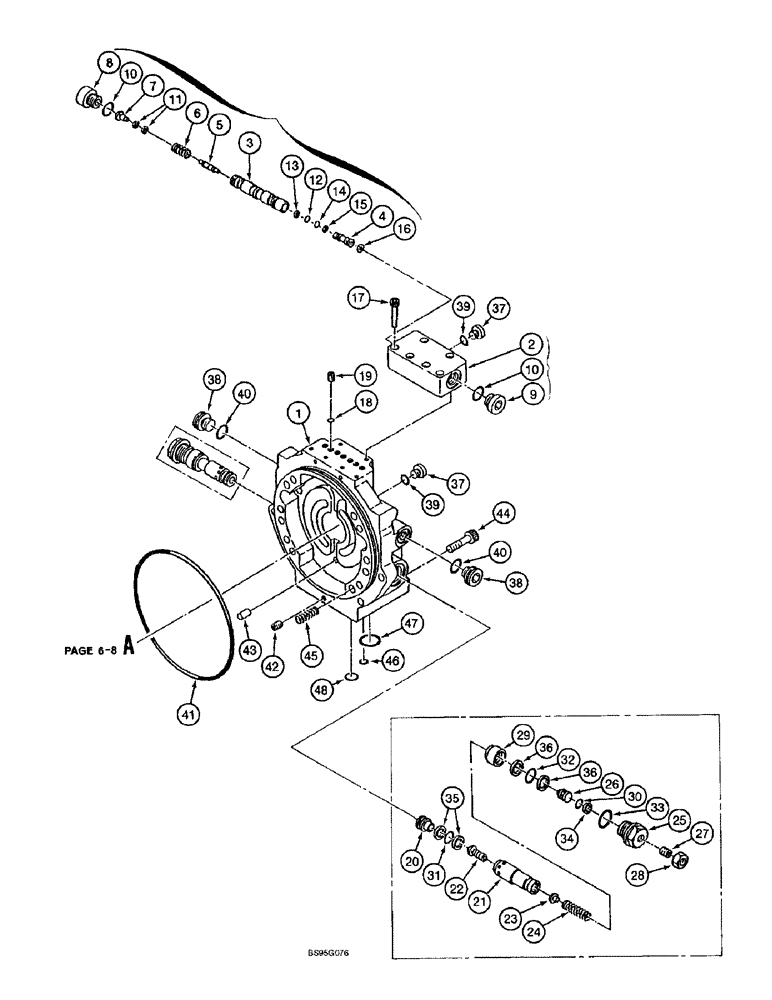

Схема запчастей Case 9060B - (6-10) - TRACK DRIVE MOTOR - CONTINUED, REAR COVER AND VALVES (06) - POWER TRAIN
22
39
17
19
26
42
25
32
6
13
35
21
10
34
47
37
24
36
4
12
46
3
45
28
30
29
5
31
36
39
41
43
38
2
9
11
27
7
33
40
18
10
16
15
20
40
23
44
14
38
1
37
8
48

Артикул

Название

Примечание

Количество

163933A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, includes all parts on Figures 6-8 and 6-10, Includes: Ref. 1 - 48

2шт.

164092A1

COVER

ASSEMBLY - rear

1шт.

1

164093A1

COVER

- rear

1шт.

163984A1

VALVE

ASSEMBLY - two speed control, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - A

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - valve

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - C

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

10

154487A1

O-RING

- port plug

2шт.

Part of Kit P/N 164055A1

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - spring guide

2шт.

12

154443A1

O-RING

- filter

1шт.

Part of Kit P/N 164055A1

1шт.

13

153937A1

BACK-UP RING

RING - backup

1шт.

Part of Kit P/N 164055A1

1шт.

14

154447A1

O-RING

- filter

1шт.

Part of Kit P/N 164055A1

1шт.

15

153940A1

BACK-UP RING

RING - backup

1шт.

Part of Kit P/N 164055A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

17

863-8045

HEX SOC SCREW,M8 x 45mm, Cl 12.9

- hex socket, 8 - 1.25 x 45 mm, class 12.9

6шт.

18

154463A1

O-RING

- orifice and valve body

7шт.

Part of Kit P/N 164055A1

1шт.

19

164026A1

ORIFICE

- plug type

2шт.

163976A1

VALVE

ASSEMBLY - relief, Includes: Ref. 20 - 36

2шт.

20

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

28

NSS

NOT SOLD SEPARAT

NUT - set screw

1шт.

29

160209A1

PISTON

- free, relief valve

1шт.

30

154471A1

O-RING

- spring guide

1шт.

Part of Kit P/N 164055A1

1шт.

31

154487A1

O-RING

- spool

1шт.

Part of Kit P/N 164055A1

1шт.

32

154495A1

O-RING

- free piston

1шт.

Part of Kit P/N 164055A1

1шт.

33

155225A1

O-RING

- port plug

1шт.

Part of Kit P/N 164055A1

1шт.

34

153958A1

BACK-UP RING

RING - backup

1шт.

Part of Kit P/N 164055A1

1шт.

35

153970A1

BACK-UP RING

RING - backup

2шт.

Part of Kit P/N 164055A1

1шт.

36

153977A1

BACK-UP RING

RING - backup

2шт.

Part of Kit P/N 164055A1

1шт.

164055A1

SET OF PARTS

KIT - repair parts, more kit parts on Figures 6-8 and 6-10

1шт.

163933A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, includes all parts on Figures 6-8 and 6-10, continued

1шт.

164092A1

COVER

ASSEMBLY - rear, continued, Includes: Ref. 37 - 48

1шт.

37

161773A1

PLUG

- port

3шт.

38

155483A1

PLUG

- port

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

3шт.

40

154487A1

O-RING

- port plug

2шт.

41

163954A1

O-RING

- rear cover sealing

1шт.

42

164027A1

ORIFICE

- plug type

1шт.

43

155623A1

COTTER PIN

PIN - dowel, rear cover

1шт.

44

863-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

SCREW - hex socket, 16 - 2.0 x 50 mm, class 12.9, Rear cover

8шт.

45

156065A1

SPRING

- compression

12шт.

46

154463A1

O-RING

- rear cover

5шт.

Part of Kit P/N 164055A1

1шт.

47

154543A1

O-RING

- Rear cover

2шт.

Part of Kit P/N 164055A1

1шт.

48

154491A1

O-RING

- rear cover

1шт.

Part of Kit P/N 164055A1

1шт.

164055A1

SET OF PARTS

KIT - repair parts, more kit parts on Figures 6-8 and 6-10

1шт.
