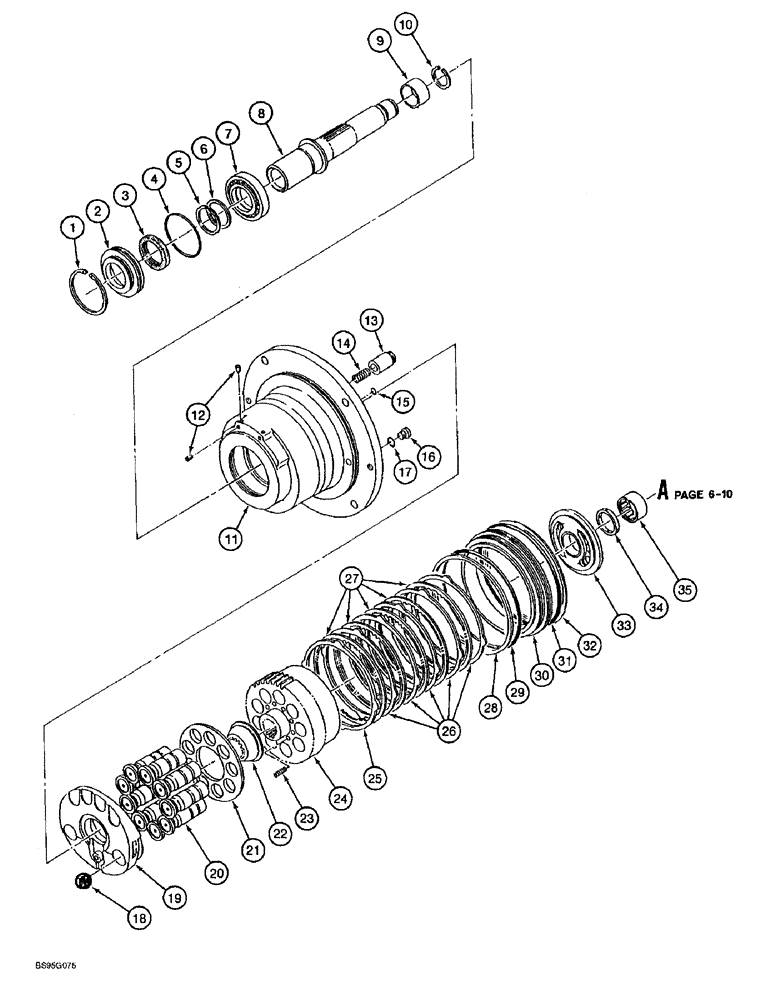

Запчасти Case 9060B (6-08) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK, PISTONS AND BRAKES (06) - POWER TRAIN

163933A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, includes all parts on Figures 6-8 and 6-10

1шт.

1

164081A1

RING

- snap

1шт.

2

163940A1

CUP COVER

SEAL - oil, housing

1шт.

Part of Kit P/N 164055A1

1шт.

3

163941A1

OIL SEAL

- oil

1шт.

ref no. 33 --part was a 164004a1 but is retired and no sub is avial.

1шт.

Part of Kit P/N 164055A1

1шт.

4

154753A1

O-RING,114.4mm ID x 3.1mm Width

SEAL - oil

1шт.

Part of Kit P/N 164055A1

1шт.

5

164080A1

RING

- snap

1шт.

6

164079A1

WASHER

- special

1шт.

7

164072A1

ROLLER BEARING,65 mm ID x 120 mm OD x 23 mm

- roller

1шт.

Part of Kit P/N 164055A1

1шт.

8

164028A1

SHAFT

- special, transmission drive

1шт.

9

156136A1

RING RACE

RACE - bearing

1шт.

10

155624A1

RING, SNAP

RING - retaining

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

Part of Kit P/N 164056A1

1шт.

12

155479A1

PLUG

- port

4шт.

13

NSS

NOT SOLD SEPARAT

PISTON - motor housing

4шт.

Part of Kit P/N 164056A1

1шт.

14

164071A1

SPRING

- compression, housing piston

4шт.

15

154463A1

O-RING

- housing

5шт.

Part of Kit P/N 164055A1

1шт.

16

155480A1

PLUG

- valve

2шт.

17

154475A1

O-RING

- valve plug

2шт.

Part of Kit P/N 164055A1

1шт.

18

164033A1

BALL

- steel

2шт.

19

164029A1

PLATE

- swash

1шт.

Part of Kit P/N 164055A1

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

Part of Kit P/N 164060A1

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

Part of Kit P/N 164056A1

1шт.

22

NSS

NOT SOLD SEPARAT

HOLDER - retainer

1шт.

Part of Kit P/N 164056A1

1шт.

23

164103A1

SPRING

- compression, motor piston

9шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

Part of Kit P/N 164060A1

1шт.

25

164032A1

PLATE

- friction

1шт.

26

156313A1

BRAKE DISC

PLATE - friction

5шт.

27

164008A1

PLATE

- friction

5шт.

28

155165A1

BACK-UP RING

RING - back-up

1шт.

Part of Kit P/N 164055A1

1шт.

29

163953A1

O-RING

- brake piston

1шт.

Part of Kit P/N 164055A1

1шт.

30

164031A1

PISTON

- brake

1шт.

31

163954A1

O-RING

- valve plate

1шт.

Part of Kit P/N 164055A1

1шт.

32

155166A1

BACK-UP RING

RING - back-up

1шт.

Part of Kit P/N 164055A1

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

Part of Kit P/N 164060A1

1шт.

34

155622A1

COLLAR

SPACER - bearing

1шт.

35

156137A1

BEARING, NEEDLE,Needle, 47.63mm ID x 61.91mm OD x 31.75mm W

BEARING - needle

1шт.

164055A1

SET OF PARTS

KIT - repair parts, more kit parts on Figure 6-10, Includes: Ref. 2 - 4, 7, 15, 17, 28, 29, 31, 32

1шт.

164060A1

ELBOW UNION

KIT - cylinder block, Includes: Ref. 20, 24 & 33

1шт.

164056A1

SET OF PARTS

KIT - housing and piston, Includes: Ref. 11, 13, 21 & 22

1шт.

164025A1

PLATE

PRELOAD ASSEMBLY - piston

1шт.
