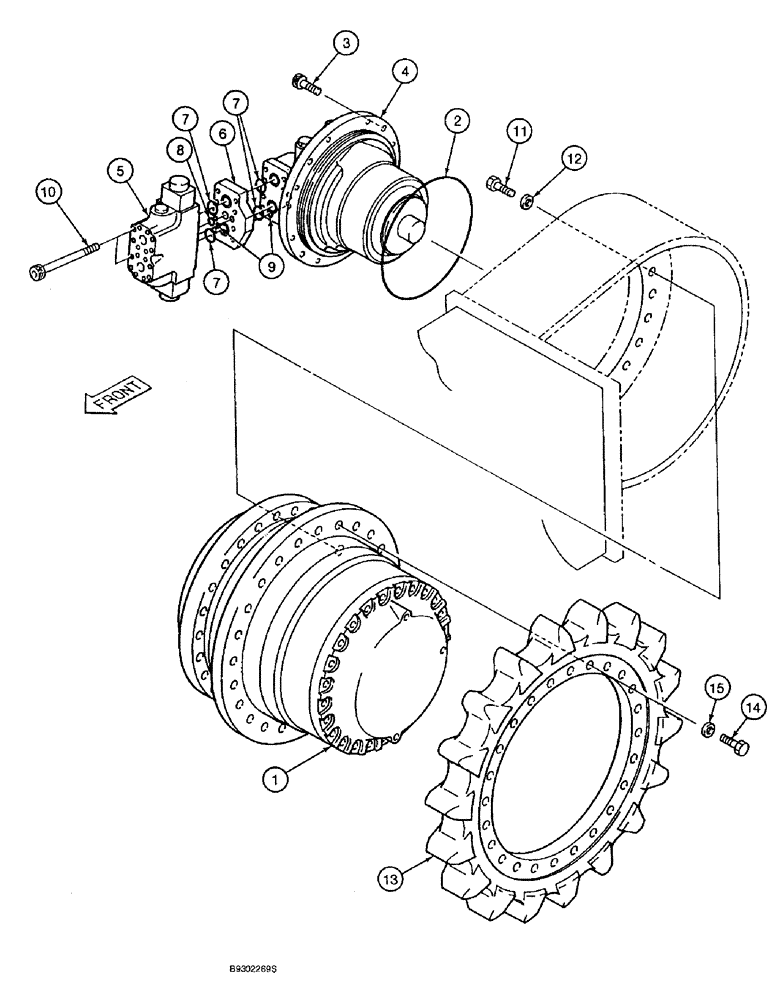

Запчасти Case 9060B (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

163644A1

ASSEMBLY

MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 4

2шт.

1

163897A1

MOTO-REDUCTION GEAR

TRANSMISSION ASSEMBLY - final drive, parts list Figures 6-4 and 6-6

1шт.

2

151524A1

O-RING

- seal, Serial Range: motor-transmission

1шт.

3

150807A1

BOLT,Hex Skt, M18 x 2.5 x 50mm

BOLT - hex socket, 18 - 2.5 x 50 mm, Serial Range: motor-transmission

4шт.

4

163933A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive

1шт.

5

164162A1

VALVE

ASSEMBLY - counterbalance, parts list Figure 6-20

1шт.

6

151534A1

FLANGE ASSY

PLATE - adapter, Serial Range: valve-motor

1шт.

REF#6 ---(NOT USED) 4/11/96

1шт.

7

154543A1

O-RING

- Adapter plate, large diameter

4шт.

8

154491A1

O-RING

- adapter plate, small diameter

1шт.

9

154463A1

O-RING

- adapter plate, medium diameter

3шт.

10

164088A1

BOLT

BOLT - Allen head, special

8шт.

11

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

48шт.

12

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

48шт.

13

163645A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

14

627-24065

BOLT,Hex, M24 x 3 x 65mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 65 mm, class 10.9

48шт.

15

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

48шт.
