Запчасти Case 9060B (4-36) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

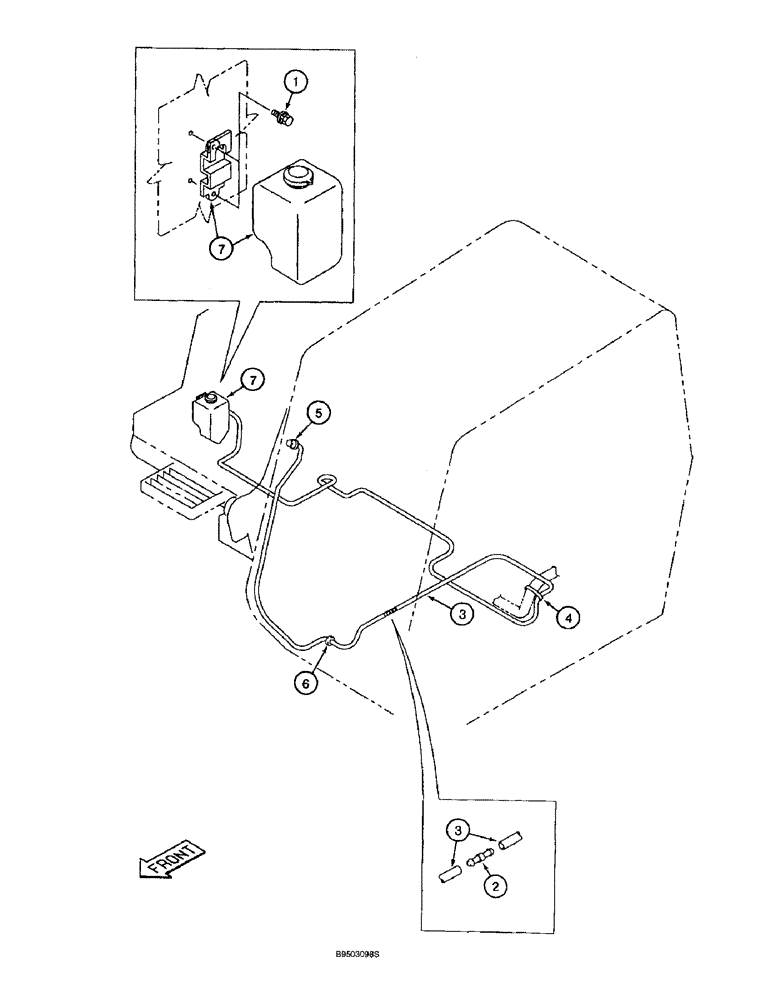

Схема запчастей Case 9060B - (4-36) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS
6
4
1
7
2
5
3
7
3

Артикул

Название

Примечание

Количество

1

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

2

152824A1

ADAPTER

CONNECTOR - special

1шт.

3

171032A1

PLASTIC-RUBBER TUBE

TUBE - vinyl, 208-11/16 inch (5300 mm) long, replaces 170327A1 tube

1шт.

4

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

5

161344A1

DIFFUSER

NOZZLE - special (squirter)

1шт.

See Figure 9-44 for installation of 161344A1 nozzle at front left-hand of cab.

1шт.

6

161363A1

GROMMET

- rubber, special

1шт.

7

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield, includes mounting bracket

1шт.

Выбрано товаров: 8
