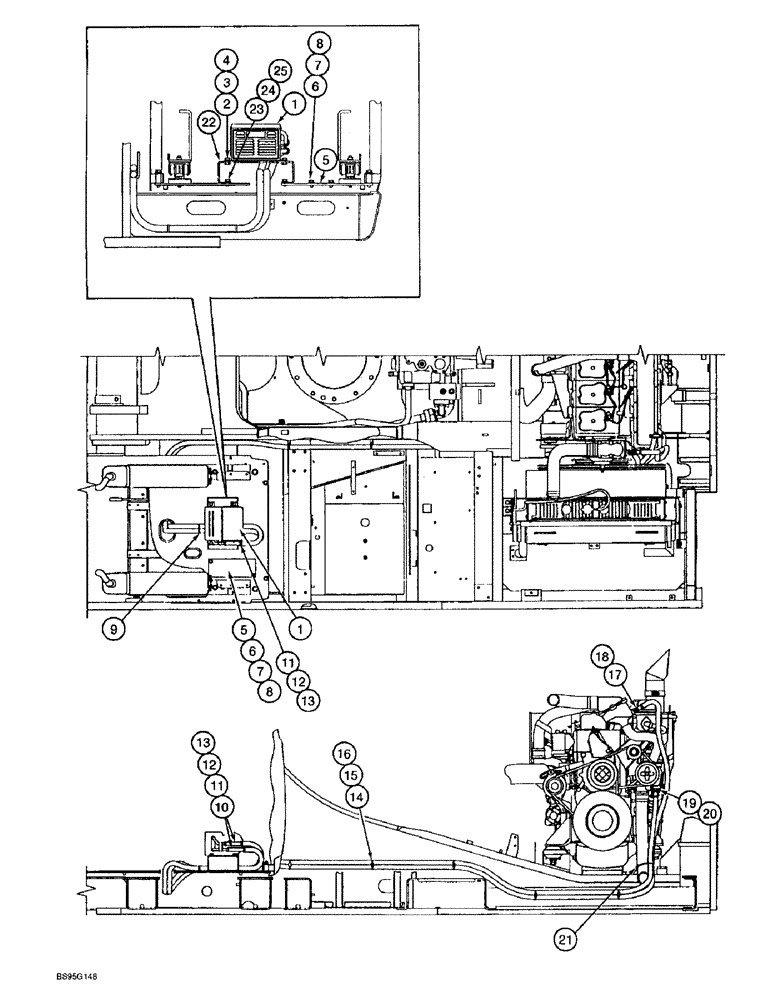

Запчасти Case 9060B (4-24) - CAB HEATER AND HOSES (04) - ELECTRICAL SYSTEMS

1

152815A1

HEATER,Assembly, Cab

HEATER - cab, individual parts are not serviced separately, Includes: Ref. 1A

1шт.

Ref#1 - for fan blower (squirrel cage) only order: 166058A1 (RH) and/or 166059A1 (LH). 1-05-98

1шт.

1a

163619A1

MOTOR, ELECTRIC

MOTOR - electric, cab heater blower, not shown

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

5

159950A1

COVER

- cab floor

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

9

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

10

150666A1

HOSE,13.00 mm ID x 6000.00 mm

2шт.

11

150384A1

COLLAR

CLAMP - adjustable

2шт.

12

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 5800 mm (228-11/32 inch) long

1шт.

13

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

14

150860A1

COLLAR

BRACKET - support, for tie strap

5шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

16

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

6шт.

17

163802A1

ADAPTER

- straight

1шт.

18

170328A1

CLAMP

- special, water hose

1шт.

19

152725A1

VALVE

- shutoff

1шт.

20

170328A1

CLAMP

- special

1шт.

21

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

22

161721A1

SUPPORT

BRACKET - mounting, heater

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

24

892-11010

LOCK WASHER,M10

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

3 speed resistor located inside heater = 163618a1. 8/29/97

1шт.
