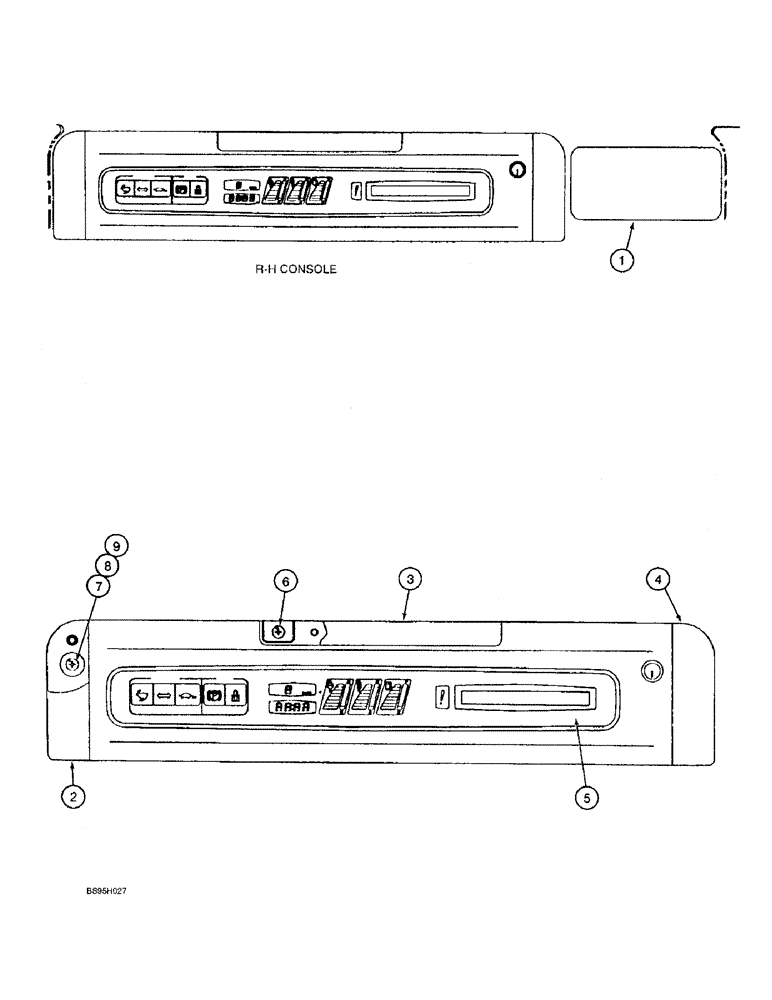

Запчасти Case 9060B (4-18) - INSTRUMENT CLUSTER ASSEMBLY AND COVER (04) - ELECTRICAL SYSTEMS

1

159616A1

COVER

- special, dust

1шт.

161748A1

INDICATOR

CLUSTER ASSEMBLY - instrument, Includes: Ref. 2 - 9

1шт.

164586A1R

REMAN-ELECT MONITOR

9060B CASE CRAWLER EXCAVATOR, CLUSTER ASSEMBLY, Reman for New PN 161748A1 (9/95-)

1шт.

164586A1C

CORE-MONITOR

Return Number

1шт.

2

159218A1

CAP

- instrument cluster, left-hand

2шт.

3

159219A1

CAP

- instrument cluster, upper

1шт.

4

159236A1

CAP

- instrument cluster, right-hand

1шт.

5

NSS

NOT SOLD SEPARAT

CLUSTER - instrument

1шт.

6

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

- special

2шт.

7

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm

6шт.

8

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

6шт.

9

159601A1

WASHER

- flat, special

6шт.
