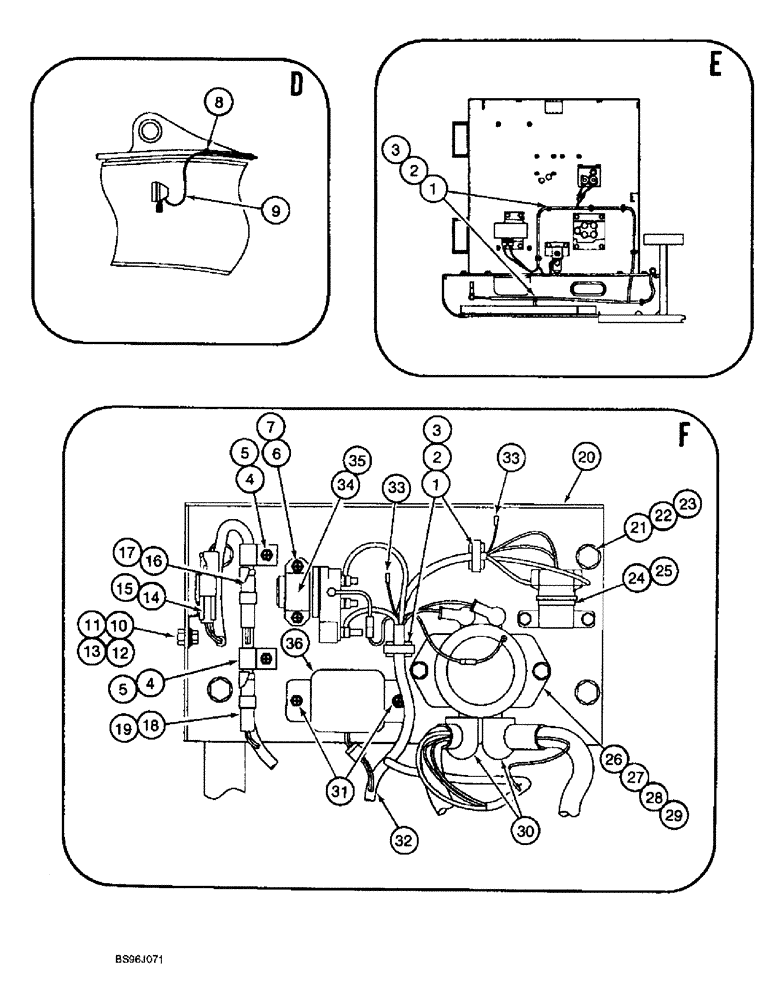

Запчасти Case 9060B (4-16) - ELECTRICAL PARTS - ABOVE BATTERIES (04) - ELECTRICAL SYSTEMS

1

150860A1

COLLAR

BRACKET - support, wiring harness

23шт.

2

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

23шт.

3

170308A1

BAND

STRAP - tie

23шт.

4

157806A1

COLLAR

CLAMP - P-type

20шт.

5

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

20шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

3шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

3шт.

8

170308A1

BAND

STRAP - tie

4шт.

9

162579A1

HARNESS

- electrical, work lamps, see Figure 4-22

1шт.

10

158963A1

CLIP

- wire

1шт.

11

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

159902A1

FUSE

- 65 amp

1шт.

15

159904A1

COVER

- wire, fuseholder

1шт.

16

159903A1

FUSE

- 25 amps

1шт.

17

159904A1

COVER

- wire, fuseholder

1шт.

18

159903A1

FUSE

- 25 amps

1шт.

19

159904A1

COVER

- wire, fuseholder

1шт.

20

170601A1

CASE

BOX - relay, electrical, replaces 170324A1 box

1шт.

21

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

24

159898A1

RELAY

- starter

1шт.

25

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

26

159897A1

RELAY

- battery

1шт.

27

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

2шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

30

162212A1

TERMINAL CONNECTOR

- terminal

2шт.

31

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

32

164161A1

HARNESS

- wire, main chassis electrical, Includes: Ref. 33

1шт.

33

231959A1

DIODE

- electrical

2шт.

34

135154A1

RELAY

- intake air heater, Includes: Ref. 35

1шт.

35

135155A1

FUSE

- blade-type, 91 amp

1шт.

36

135153A1

RELAY

- alternator safety

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.
