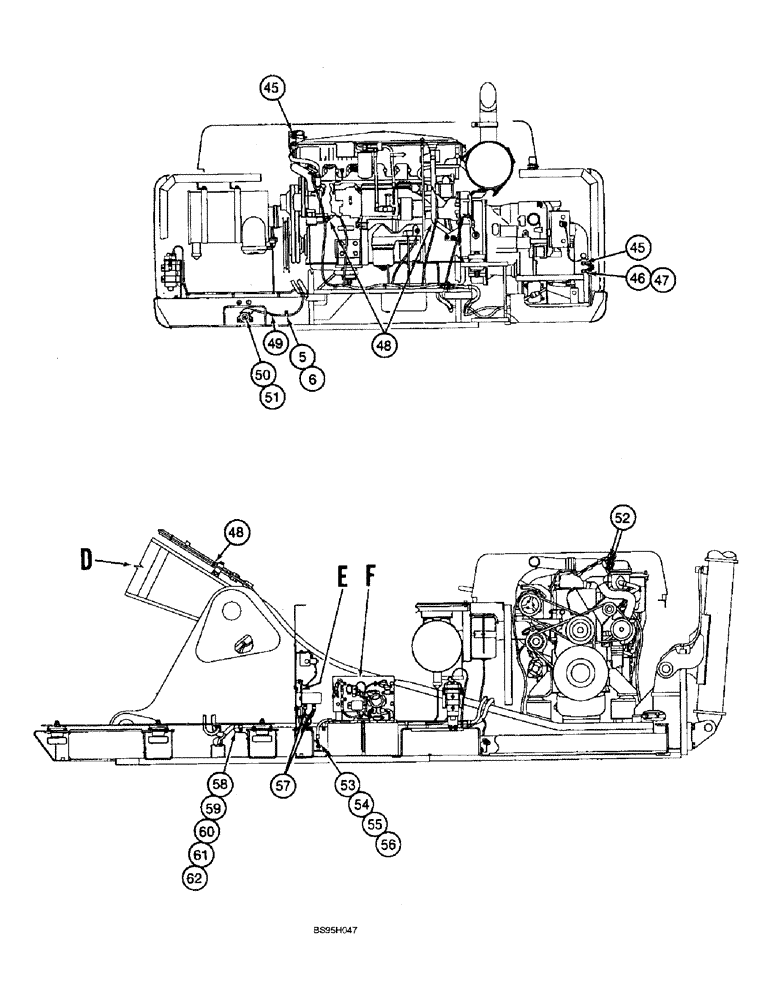

Запчасти Case 9060B (4-14) - ELECTRICAL PARTS OUTSIDE CAB - CONTINUED (04) - ELECTRICAL SYSTEMS

5

153039A1

CLAMP

- P-type, 12 mm ID

20шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

20шт.

45

159147A1

SENSOR

- temperature

2шт.

46

159148A1

SWITCH

- temperature

1шт.

47

159901A1

SEALING WASHER

WASHER - sealing

1шт.

48

170308A1

BAND

STRAP - tie

4шт.

49

150413A1

GROMMET

- rubber

1шт.

50

162218A1

ALARM

- travel

1шт.

51

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

BOLT - hex, special

2шт.

52

159171A1

CAP

- terminal boot, rubber

2шт.

53

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

54

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

56

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

57

159599A1

PRESSURE SWITCH

SWITCH - pressure

2шт.

58

170592A1

HARNESS

WIRE - ground, replaces 159912A1 wire

1шт.

59

627-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 8 mm, class 10.9

2шт.

60

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

61

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

2шт.

62

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

55

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
