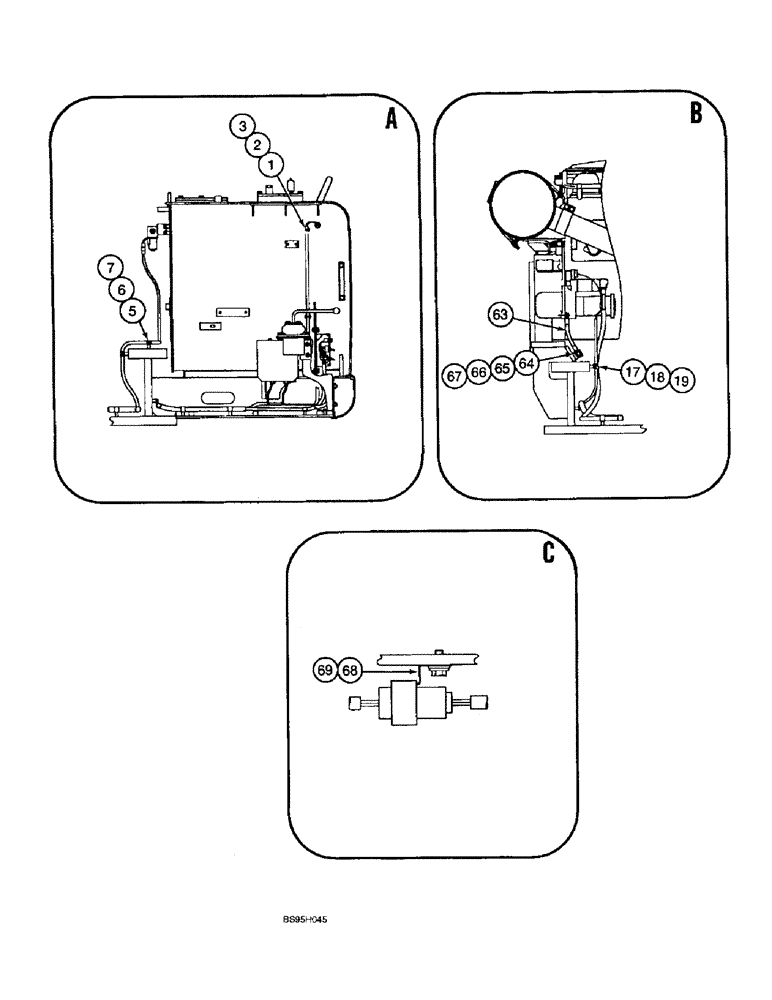

Запчасти Case 9060B (4-12) - ELECTRICAL PARTS OUTSIDE CAB - CONTINUED (04) - ELECTRICAL SYSTEMS

1

150860A1

COLLAR

BRACKET - support

23шт.

2

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

23шт.

3

170308A1

BAND

STRAP - tie

23шт.

5

153039A1

CLAMP

- P-type, 12 mm ID

8шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

8шт.

7

159149A1

COLLAR

CLAMP - P-type, 22 mm

4шт.

17

153039A1

CLAMP

- P-type, 12 mm ID

2шт.

18

159149A1

COLLAR

CLAMP - P-type, 22 mm

2шт.

19

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

63

163819A1

ELECTRIC CABLE

CABLE - battery, special

1шт.

64

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

65

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

66

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

67

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - internal tooth lock, 12 mm, replaces 893-11012 washer

2шт.

68

158962A1

CLIP

- harness

1шт.

69

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.
