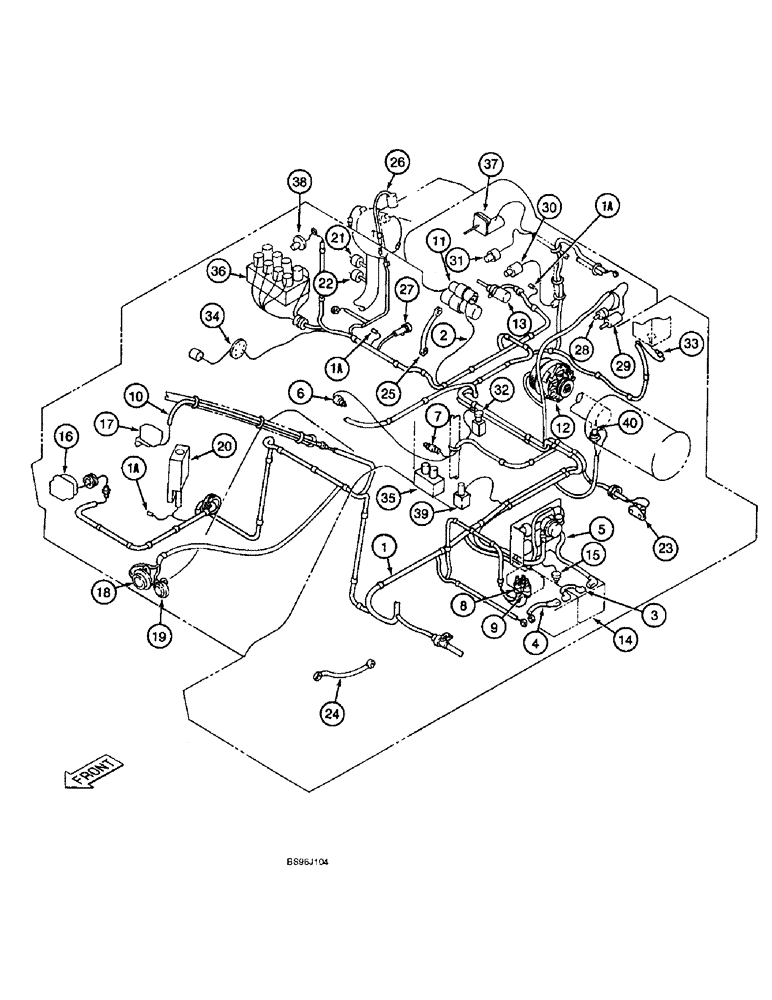

Запчасти Case 9060B (4-09A) - ELECTRICAL PARTS OUTSIDE CAB (04) - ELECTRICAL SYSTEMS

1

164161A1

HARNESS

HARNESS - wire, main chassis electrical, Includes: Ref. 1A

1шт.

1a

231959A1

DIODE

DIODE - electrical

3шт.

2

163817A1

HARNESS

CABLE - battery, Serial Range: relay-starter

1шт.

3

159914A1

CABLE ASSY.

CABLE -, Serial Range: battery-battery

1шт.

4

163734A1

CABLE ASSY.

CABLE - battery, special, Serial Range: battery-ground

1шт.

5

163816A1

CABLE ASSY.

CABLE - battery, Serial Range: battery-relay

1шт.

6

159899A1

PRESSURE SWITCH

SWITCH - pressure, upper pilot

1шт.

7

159900A1

PRESSURE SWITCH

SWITCH - pressure, travel pilot pressure

1шт.

8

159599A1

PRESSURE SWITCH

SWITCH - pressure, swing pilot

1шт.

9

159599A1

PRESSURE SWITCH

SWITCH - pressure, boom up and down pilot

2шт.

10

162579A1

HARNESS

HARNESS - electrical, boom light

1шт.

11

240330A1

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, 6.0 KW, parts list Figure 4-4

1шт.

240330A1R

REMAN-STARTER

REMANUFACTURED STARTER MOTOR - for N.A. Only

1шт.

240330A1C

CORE-STARTER

Return Number, STARTER MOTOR - for N.A. Only

1шт.

12

84124737

ALTERNATOR

ALTERNATOR ASSEMBLY - 24 volt, 40 amp, parts list Figure 4-6, Replaces 240364A1

1шт.

13

240383A1

SOLENOID

SOLENOID - engine stop, 24 volt

1шт.

14

170052A1

DRY BATTERY

BATTERY - 12 volt, 780 amps

2шт.

15

170051A1

SENSOR

SENSOR - low electrolyte

1шт.

159600A1

LAMP, WORK

LIGHT, WORK LAMP ASSEMBLY - work, Includes: Ref. 16

1шт.

16

152809A1

BULB

LAMP - sealed beam

1шт.

159598A1

PORTABLE LAMP

LAMP ASSEMBLY - work, Includes: Ref. 17

1шт.

17

152812A1

BULB

LAMP - sealed beam

1шт.

18

159948A1

HORN

HORN - electric, see Figure 4-30

1шт.

19

159949A1

HORN

HORN - electric, see Figure 4-30

1шт.

20

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

21

159147A1

SENSOR

SENSOR - temperature, hydraulic

1шт.

22

159148A1

SWITCH

SWITCH - temperature, hydraulic

1шт.

23

162218A1

ALARM

ALARM - travel

1шт.

24

170592A1

HARNESS

WIRE - ground, cab

1шт.

25

163819A1

ELECTRIC CABLE

CABLE - battery, special, engine ground

1шт.

26

164539A1

VALVE

VALVE ASSEMBLY - proportional

1шт.

27

240067A1

SENSOR

SENSOR - speed, engine

1шт.

28

153052A1

IGNITION SWITCH

SWITCH - thermostat, engine coolant

1шт.

29

159147A1

SENSOR

SENSOR - temperature, engine coolant

1шт.

30

H411892

SWITCH

SENDER - oil pressure, engine

1шт.

31

133255A1

SWITCH

SWITCH - pressure, engine oil filter bypass

1шт.

32

159205A1

VALVE

VALVE ASSEMBLY - solenoid, free swing

1шт.

33

161740A1

SWITCH

SWITCH - sender, coolant level

1шт.

34

159610A1

SENSOR

SENDER - fuel level

1шт.

35

163731A1

VALVE

VALVE ASSEMBLY - swing brake release

1шт.

36

161310A1

VALVE

VALVE ASSEMBLY - solenoid, parts list Figure 8-132

1шт.

37

160614A1

MOTOR, ELECTRIC

MOTOR - throttle control

1шт.

37

160614A1R

REMAN-ELECTRIC MOTOR

9060BCASE CRAWLER EXCAVATOR, MOTOR, Throttle Control (9/95-)

1шт.

37

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

38

152723A1

PRESSURE SWITCH

SWITCH - pressure, hydraulic reservoir air pressure

1шт.

39

162538A1

VALVE

VALVE ASSEMBLY - solenoid, auxiliary dual pump, see related parts on Figure 8-168, parts list Figure 8-136

1шт.

40

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.
