Запчасти Case 9060B (4-08) - ELECTRICAL PARTS IN CAB (04) - ELECTRICAL SYSTEMS

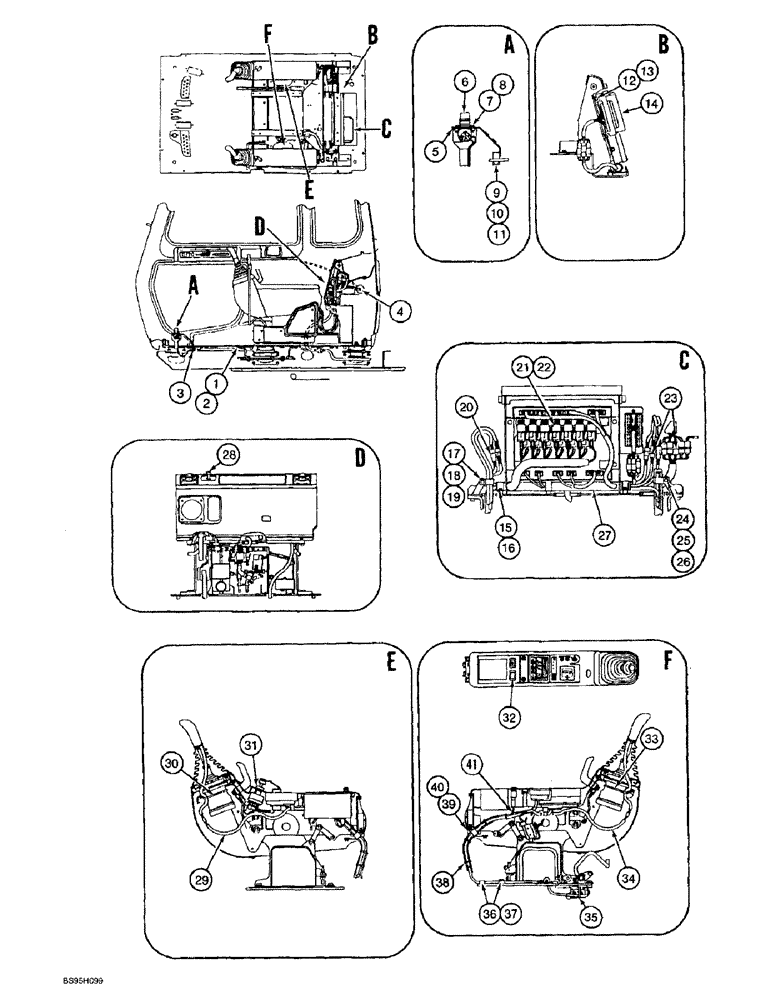

Схема запчастей Case 9060B - (4-08) - ELECTRICAL PARTS IN CAB (04) - ELECTRICAL SYSTEMS
3
19
2
24
34
25
23
38
33
39
7
9
14
37
40
29
27
32
30
10
26
12
36
21
1
20
6
16
22
28
31
17
8
13
35
4
41
15
18
11
5

Артикул

Название

Примечание

Количество

1

159150A1

COLLAR

CLAMP - P-type

3шт.

2

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

3

158962A1

CLIP

- harness

1шт.

4

159926A1

HARNESS

- controller

1шт.

5

160663A1

PACKING

GASKET - switch

1шт.

6

159921A1

SWITCH, CRUISE INC/D

SWITCH - special, track speed selector

1шт.

7

159922A1

SCREW,Pan Hd, M5 x 20mm

- special

2шт.

8

825-1405

NUT,M5, Cl 8

2шт.

9

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 20 mm, class 12.9

2шт.

13

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

14

159910A1

BOX, FUSE

BOX - fuse

1шт.

15

157808A1

COLLAR

CLAMP - P-type

3шт.

16

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

17

158970A1

COLLAR

CLAMP - P-type

1шт.

18

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

1шт.

19

157699A1

FLANGE NUT

- hex flange, special

1шт.

20

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

21

159919A1

RELAY

- electrical system controller

12шт.

22

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

12шт.

23

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

2шт.

24

158970A1

COLLAR

CLAMP - P-type

1шт.

25

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

1шт.

26

157699A1

FLANGE NUT

- hex flange, special

1шт.

27

163777A1

HARNESS

- wire

1шт.

28

159920A1

LIGHTER, CIGARETTE

LIGHTER - cigar

1шт.

29

162749A1

HARNESS

- wiring

1шт.

30

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

31

162217A1

IGNITION SWITCH

SWITCH ASSEMBLY - starter, engine, Includes: Ref. 31A

1шт.

31a

150979A1

IGNITION KEY

KEY - ignition switch, not shown

2шт.

REF. 31A (150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2. NAPO TECH 7/1/99

1шт.

32

162751A1

SWITCH

- special, boom priority

1шт.

REF#32 --(AUX. HYDS CONTROL) 4/11/96

1шт.

33

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

34

159928A1

HARNESS

- wiring

1шт.

35

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

36

159150A1

COLLAR

CLAMP - P-type

3шт.

37

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

38

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

3шт.

39

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

2шт.

40

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

41

159620A1

HARNESS

- jumper wire

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

Выбрано товаров: 44
