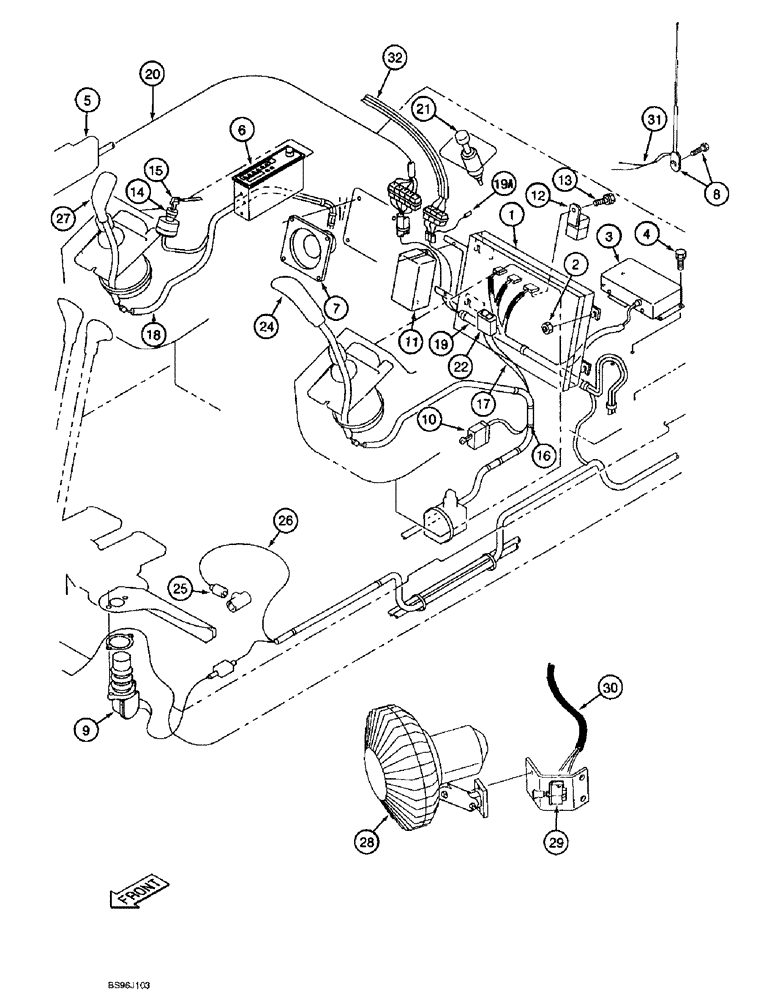

Запчасти Case 9060B (4-07A) - ELECTRICAL PARTS IN CAB (04) - ELECTRICAL SYSTEMS

1

165188A1

CONTROL

LER - electrical system

1шт.

1

168788A1R

REMAN ELECT CONTROL

9060B CASE CRAWLER EXCAVATOR, LER - electrical system (9/95-), Reman for New PN 165188A1

1шт.

1

168788A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

150469A1

FLANGE NUT

- hex flange, special

4шт.

3

162902A1

ECU

CONTROLLER - motor driver

1шт.

4

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

4шт.

5

161748A1

INDICATOR

CLUSTER ASSEMBLY - instrument

1шт.

5

164586A1R

REMAN-ELECT MONITOR

9060B CASE CRAWLER EXCAVATOR, CLUSTER ASSEMBLY, Reman for New PN 161748A1 (9/95-)

1шт.

5

164586A1C

CORE-MONITOR

Return Number

1шт.

6

159940A1

RADIO

- AM/FM

1шт.

7

159946A1

SPEAKER

- radio

1шт.

8

161372A1

ANTENNA

- cab radio

1шт.

9

159921A1

SWITCH, CRUISE INC/D

SWITCH - special, travel speed

1шт.

10

159538A1

LIMIT SWITCH

SWITCH - limit, pilot controls

1шт.

159538A1 console limit switch has two wire leads (one is white and one is black) that are each 100 mm long. This switch is wired normally open. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1432.

1шт.

11

159910A1

BOX, FUSE

BOX - fuse

1шт.

12

159919A1

RELAY

- electrical system controller

12шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

12шт.

14

162217A1

IGNITION SWITCH

SWITCH ASSEMBLY - starter, engine, Includes: Ref. 15

1шт.

15

150979A1

IGNITION KEY

KEY - ignition switch

1шт.

REF. 15 (150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2. NAPO TECH 7/1/99

1шт.

16

159928A1

HARNESS

- wiring, left-hand console

1шт.

17

159620A1

HARNESS

- boom priority

1шт.

18

162749A1

HARNESS

- wiring, right-hand console

1шт.

19

163777A1

HARNESS

- wire, main cab, Includes: Ref. 19A

1шт.

19a

231959A1

DIODE

- electrical

1шт.

20

159926A1

HARNESS

- controller, to instrument cluster

1шт.

21

159920A1

LIGHTER, CIGARETTE

LIGHTER - cigar

1шт.

22

162751A1

SWITCH

- special, boom priority

1шт.

23

162363A1

KNOB

- right-hand, with one-touch idle

1шт.

24

159270A1

KNOB

- left-hand, with horn button

1шт.

25

159599A1

PRESSURE SWITCH

SWITCH - pressure, engine speed, preset RPM

1шт.

26

170731A1

HARNESS

- wiring, auxiliary hydraulics, dual pump, if used

1шт.

26

159636A1

HARNESS

- wiring, auxiliary hydraulics, single pump, if used

1шт.

27

162660A1

TOGGLE SWITCH

Aux Attachment Control Switch - rocker, dual pump auxiliary hydraulics only

1шт.

28

157689A1

FAN

ASSEMBLY - cab, see Figure 4-26

1шт.

29

152843A1

IGNITION SWITCH

SWITCH - cab fan

1шт.

30

159952A1

HARNESS

- cab fan

1шт.

31

152500A1

CABLE ASSY.

WIRE - antenna

1шт.

32

161346A1

HARNESS

- electrical wiring, wiper motor

1шт.

Per prints that Dick Erickson faxed to me today:

1шт.

There is another limit switch used for the gate lock control. This limit switch is part # 159541A1. It has two wire leads (both are green) that are each 150 mm long. This switch is wired normally closed. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1439.

1шт.
