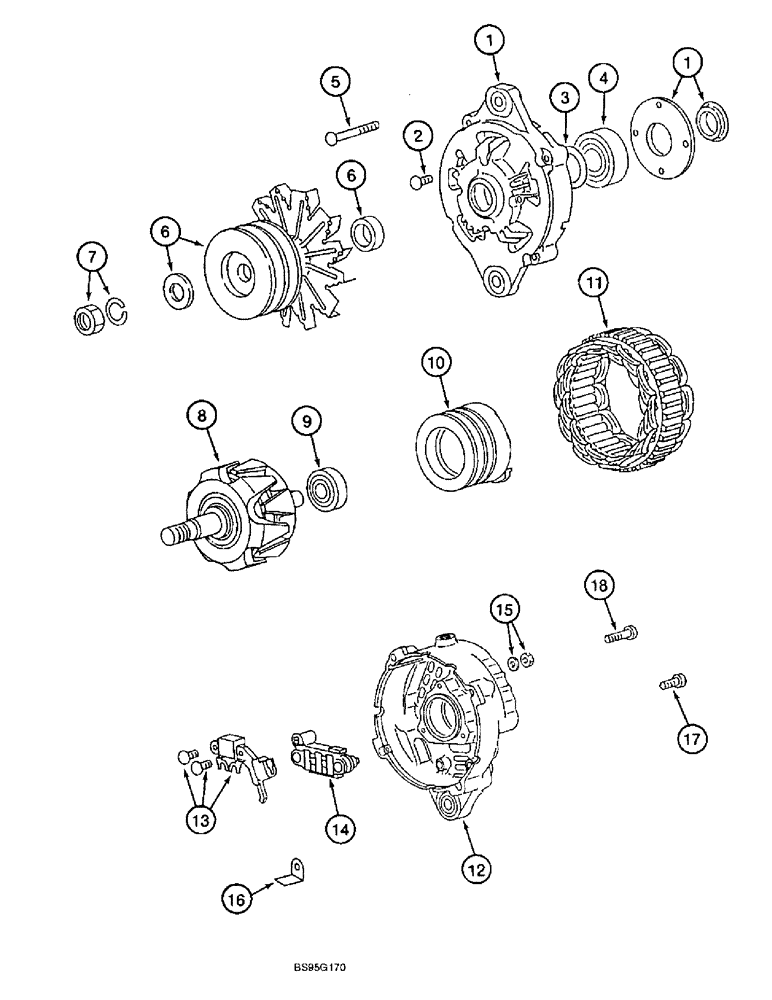

Запчасти Case 9060B (4-06) - ALTERNATOR ASSEMBLY, USED ON 6D22-TC ENGINE (04) - ELECTRICAL SYSTEMS

84124737

ALTERNATOR

ASSEMBLY - 24 volt, 40 amp, includes integral regulator, Replaces 240364A1

1шт.

240367A1

SUPPORT

FRAME ASSEMBLY - drive end, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - drive end, includes bearing sleeve and retainer plate

1шт.

2

135138A1

SCREW

- special

1шт.

3

REF

INSTRUCTION

SPACER - bearing, not used in this application

1шт.

4

240365A1

BALL BEARING

BEARING - rotor drive end

1шт.

5

135137A1

SCREW

- special

1шт.

6

135131A1

PULLEY

KIT - pulley and fan, includes flat washer and rotor shaft bushing

1шт.

7

135142A1

NUT

KIT - nut, includes lock washer

1шт.

240373A1

ROTOR ASSY.

KIT - rotor, Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR - alternator

1шт.

9

240366A1

BALL BEARING

BEARING - rotor, regulator end

1шт.

10

240369A1

COIL

- rotor

1шт.

11

240374A1

STAY

STATOR - alternator

1шт.

240368A1

SUPPORT

FRAME ASSEMBLY - regulator end, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

FRAME - regulator end

1шт.

13

240372A1

REGULATOR

- alternator

1шт.

14

240371A1

RECTIFIER

- alternator

1шт.

15

240376A1

NUT

- includes flat washer

1шт.

16

240370A1

BRACKET

- rectifier

1шт.

17

240375A1

SCREW

- special

1шт.

18

135139A1

SCREW

- special

1шт.
