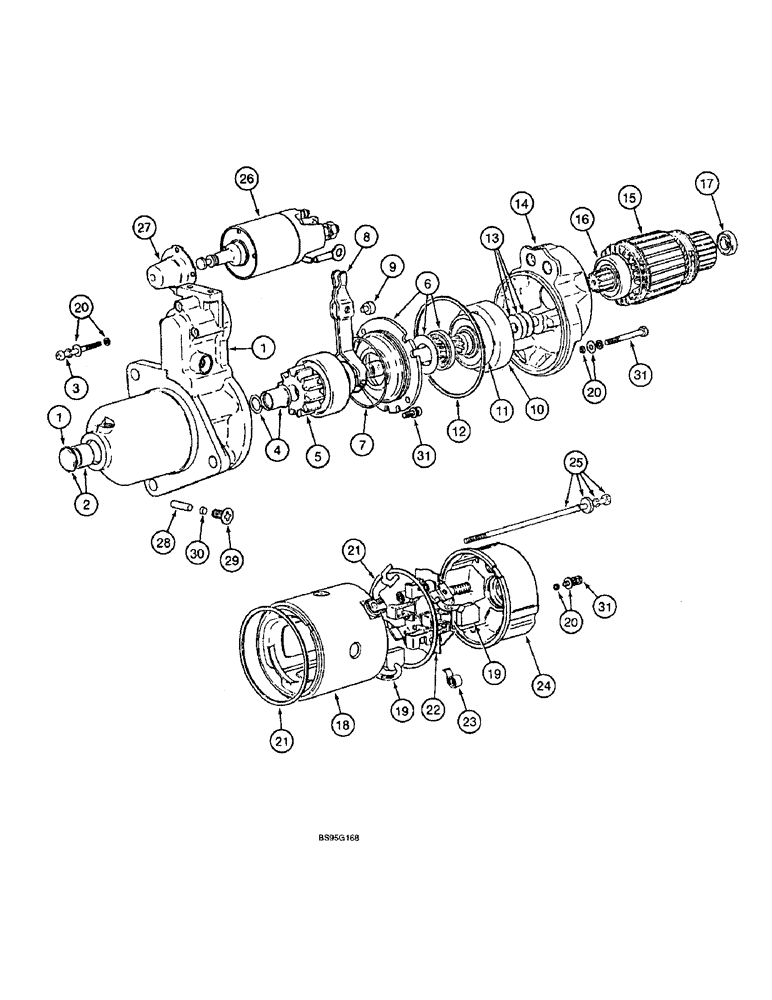

Запчасти Case 9060B (4-04) - STARTER ASSEMBLY, USED ON 6D22-TC ENGINE (04) - ELECTRICAL SYSTEMS

240330A1

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, 6.0 KW, Includes: Ref. 1 - 31

1шт.

240330A1R

REMAN-STARTER

REMANUFACTURED STARTER MOTOR - for N.A. Only

1шт.

240330A1C

CORE-STARTER

Return Number, STARTER MOTOR - for N.A. Only

1шт.

1

240340A1

HOUSING

- drive

1шт.

2

240332A1

KIT

- bearing and sleeve

1шт.

3

240360A1

SCREW

- special, starter (2 pieces)

1шт.

4

240355A1

KIT

- stopper, starter pinion

1шт.

5

240343A1

CLUTCH

- overrunning type

1шт.

6

240337A1

BRACKET

- starter gear

1шт.

7

240352A1

O-RING

- housing

1шт.

8

240351A1

LEVER

- pinion shift

1шт.

9

240344A1

GUIDE

- shift lever

1шт.

10

240349A1

KIT

- starter shaft and reduction gear

1шт.

11

240333A1

BEARING ASSY

BEARING - reduction gear

1шт.

12

240348A1

GASKET

RING - seal

1шт.

13

240357A1

SET OF WASHERS

SET - washer, starter gear shaft

1шт.

14

240338A1

HOUSING

- gear

1шт.

240331A1

KIT

- armature, starter, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

ARMATURE - starter

1шт.

16

135038A1

BEARING

- armature, gear side

1шт.

17

240334A1

BEARING, BALL

BEARING - armature, brush side

1шт.

18

240358A1

HOUSING

- field windings

1шт.

19

240342A1

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

20

240353A1

RING

- seal, starter (2 pieces)

1шт.

21

240347A1

GASKET

- housing

2шт.

22

240350A1

HOLDER

- brush

1шт.

23

240354A1

SPRING

- brush holder

4шт.

24

240341A1

HOUSING

- cummutator

1шт.

25

240336A1

BOLT (MACHINE)

SET - bolt

1шт.

26

240356A1

KIT

- magnetic switch

1шт.

27

240345A1

COVER

- magnetic switch

1шт.

28

240362A1

PIN

- starter

1шт.

29

240359A1

SCREW

- special

1шт.

30

240346A1

GASKET

- screw

1шт.

31

240361A1

SCREW

- special (4 pieces)

1шт.
